ADAM SUB 12

2-Way Active Subwoofer.

ADAMSUB12

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

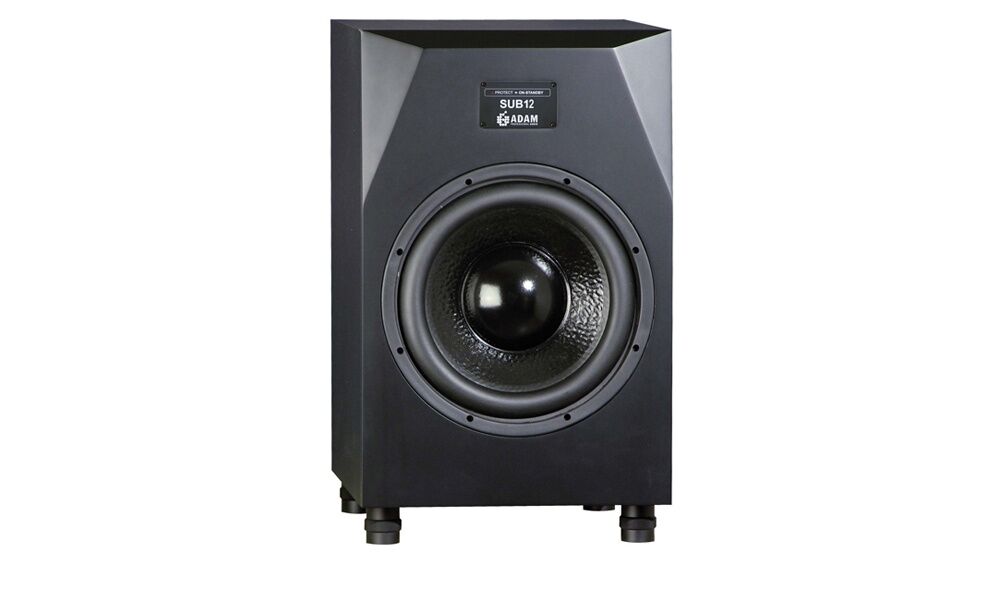

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22 Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).

  • Bass reproduction down to 22 Hz
  • Maximum Peak sound pressure in 1 m ≥ 115 dB
  • High efficiency PWM amplifier
  • Special 12″ woofer with paper diaphragm
  • Easy manual or automatic (de-)activation
  • Additional sub output
  • According to downward working bass reflex tube with generous dimensions and corresponding rounding
  • Crossover frequency is selectable between 50 – 150 Hz
  • Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz
  • 2 years warranty with optional extension to 3 years with the registration of the product



Media

Manual (5.64 MB)
