ALLEN AND HEATH MixWizard WZ4 12:2

12-channel mixing console

W41222

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

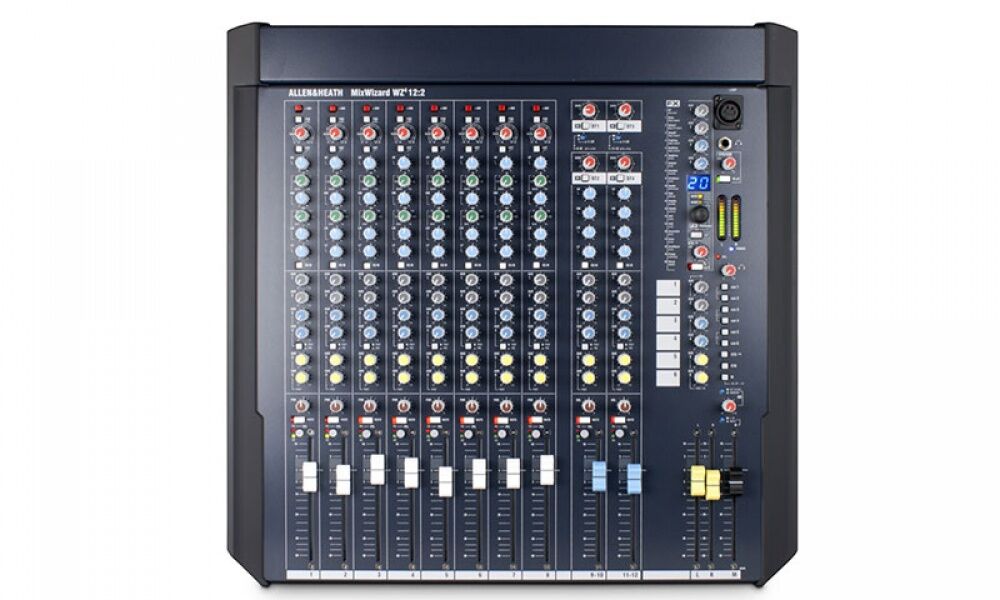

The Allen & Heath MixWizard WZ4 12:2 is a compact and high-quality mixer offering 8 mic/line inputs with balanced XLR/TRS jack, insert and direct output.
MixWizard WZ4 12:2 features two dual stereo channels for stereo playback or connecting keyboards and other stereo instruments to the mixer.

Featuring a 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering, MixWizard WZ4 12:2 provides a unique QCC connector system for easy desktop, rack or flightcase mounting.

The 4th generation MixWizard consoles include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

• 19-inch Rack mountable

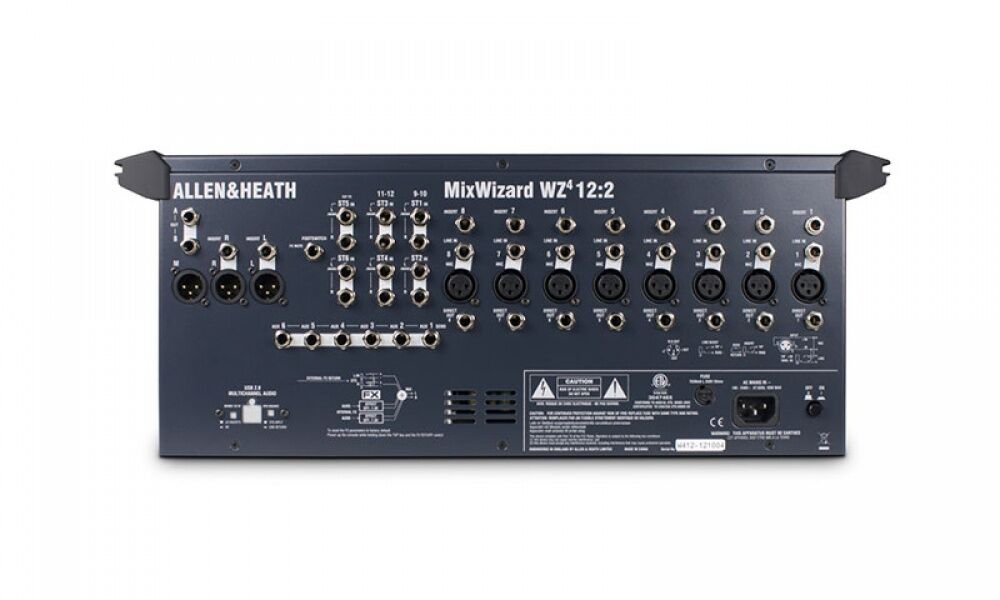

• 8 mic/line inputs with balanced XLR/TRS jack, insert and direct output
• 100mm faders
• 2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
• 4 band EQ with 2 swept mids
• 6 Aux sends – 2x pre fade / 2x switched / 2x post fade*
• 2 Stereo returns
• Dedicated mono output fader – can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
• Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
• Tri-colour, 12 segment bargraph metering
• Twin FX engines with 20 studio quality FX presets
• +48V Phantom Power
• Signal and Peak LEDs
• Lamp socket
• USB multitrack recording option
• Footswitch connector (mutes/unmutes the ST1 FX Return)
