ALLEN AND HEATH QU-16C

Rackmountable Digital Mixer.

QU-16C

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

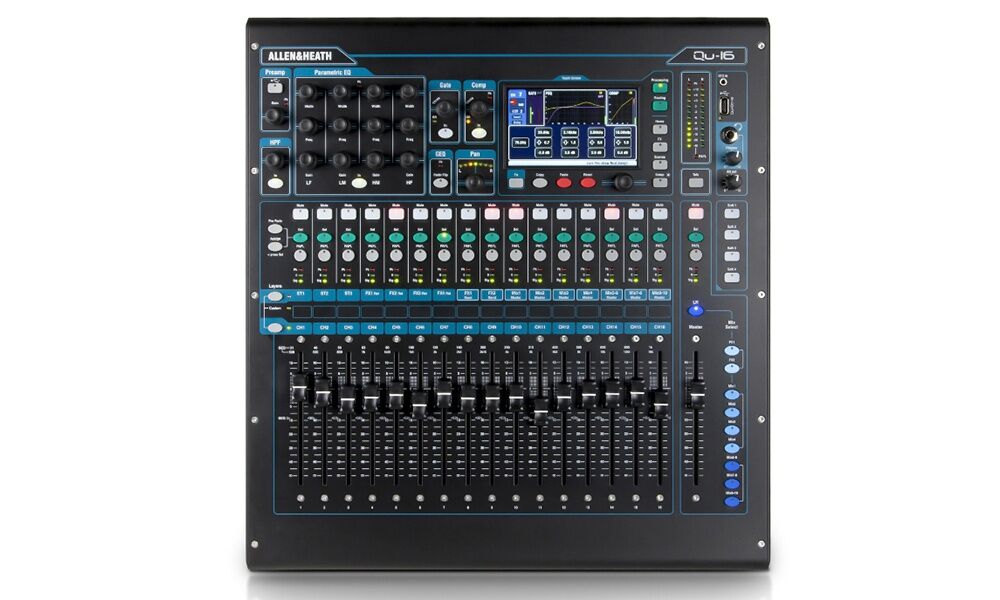

The Qu-16 is a compact digital mixing system packed with professional features that incorporates technologies pioneered by the GLD and iLive digital mixing systems. It features 16 AnalogiQTM total recall preamps with zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP with high class, low latency 24-bit analogue to digital converters.

Advanced ergonomics provide a hands-on mixing experience and its 800 x 480 Touchscreen with dedicated data encoder forms the heart of the Qu-16 interface, providing quick and easy access to all settings. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

All key processing tools are presented in on the SuperStrip, with 1 function per physical control. The SuperStrip is complemented by an onscreen Touch Channel for intuitive access to full processing parameters. Qu-16’s dynamics and FX algorithms are derived from the FX used in the iLive pro touring series.

Qu-16 can store up to 100 full Scenes for recall, meaning channels and mixes can be made Safe from Scene recall. It also features an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24-bit recording and playback straight to / from your USB hard drive. Add the Qu-Pad iPad app to your Qu-16 setup and you’re free to adjust the monitors on stage, roam around the venue whilst tweaking the PA, and then mix the show whilst among the audience.• 16 Mono Inputs (TRS + XLR)

• 3 Stereo Inputs (TRS)
• 4 Stereo FX Returns
• 16 Busses
• 12 Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
• 4 FX Engines
• AES Digital Out
• 19-inch Rack Mountable
• 800×480 Touchscreen
• iLive FX Library • Qu-Pad iPad App

Media

Datasheet (5.63 MB)
Manual (7.78 MB)
