ALLEN AND HEATH Qu-32

32-channel digital mixer

QU-32

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

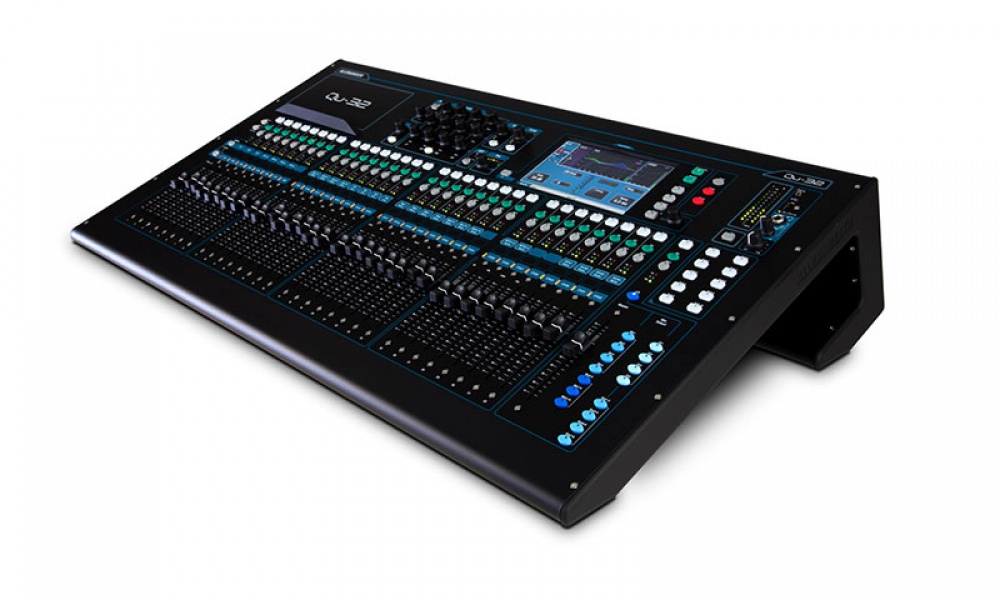

The Qu-32 is a digital mixing system packed with professional features that incorporates technologies pioneered by the GLD and iLive digital mixing systems. It features 32 AnalogiQTM total recall preamps with zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP with high class, low latency 24-bit analogue to digital converters.

Advanced ergonomics provide a hands-on mixing experience and a touchscreen with dedicated data encoder forms the heart of the Qu-32 interface, providing quick and easy access to all settings. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

All key processing tools are presented on the SuperStrip, with 1 function per physical control. The SuperStrip is complemented by an onscreen Touch Channel for intuitive access to full processing parameters. Qu-32’s dynamics and FX algorithms are derived from the FX used in the iLive pro touring series.

The Qu-32 mixing console can store up to 100 full Scenes for recall, meaning channels and mixes can be made Safe from Scene recall. Qu also has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB hard drive. Add the Qu-Pad iPad app to your Qu-32 setup and you’re free to adjust the monitors on stage, roam around the venue whilst tweaking the PA, and then mix the show whilst among the audience.

Features:

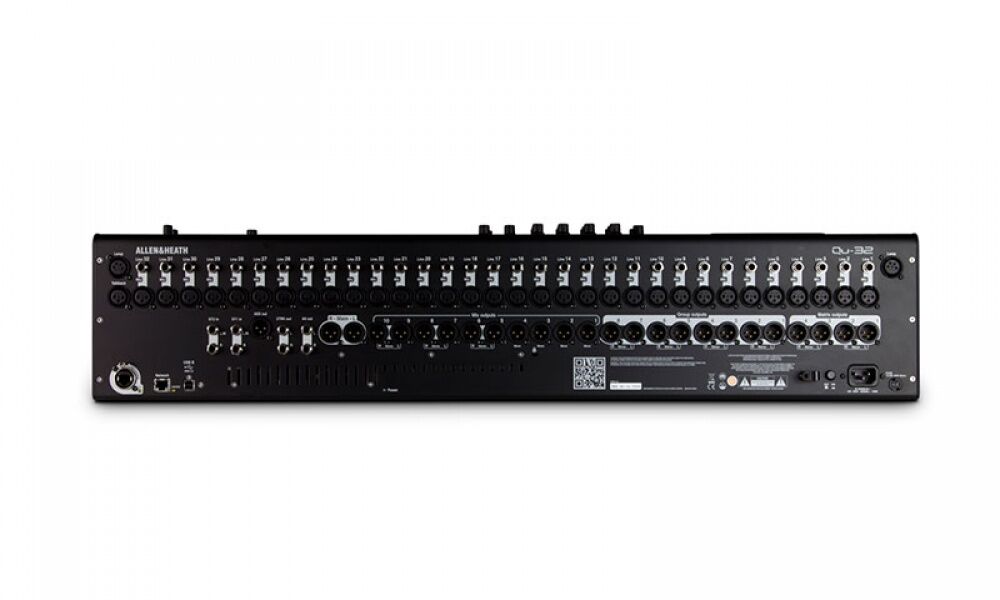

• 32 Mic /Line Inputs (TRS + XLR)
• 33 Motor Faders
• 3 Stereo Inputs (TRS)
• 24 Mix Outputs (XLR)
• 4 Stereo Groups
• 2 Stereo Matrix Outs
• 4 DCA Groups
• 4 Mute Groups
• 4 FX Engines
• 4 FX Sends / Returns
• 10 Soft Keys
• 32×32 USB Audio Interface
• DAW MIDI Control
• AES Digital Out
• Recallable AnaLOGIQTM Preamps
• Qu-Drive direct Multitrack Recording / Playback on USB drives
• 7″ Touchscreen
• iLive FX Library
• dSNAKETM Remote Audio Port
• Compatible with ME Personal Mixing System
• Qu-Pad iPad App
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication
