API 500VPR

10 slot luncbox rack.

500VPR

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

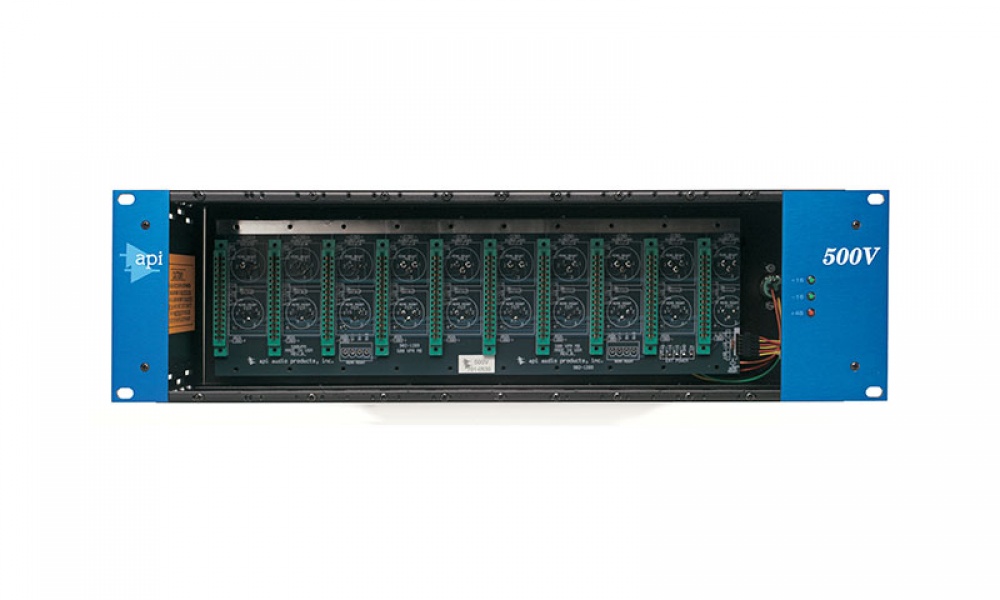

The API Model 500VPR is a 10 slot lunchbox rack for use with 500 Series modules. The 500VPR is internally wired for PIN 2 hot, and comes with the API L200PS tri-polar power supply. The input/output jacks are both XLRs.

The 500 Series features numerous compact hardware emulations of modules found in API’s large format consoles, including the 550A, 550b, 560, 525, and 512c.  The 500VPR comes with API’s standard 5 year warranty.

NOTE: Older API 560A series equalisers used pin 15 for a “direct output” and must be disabled on the 560A circuit board edge connector by cutting a trace.  This will eliminate 48 volts from damaging the 560A series equalisers.
