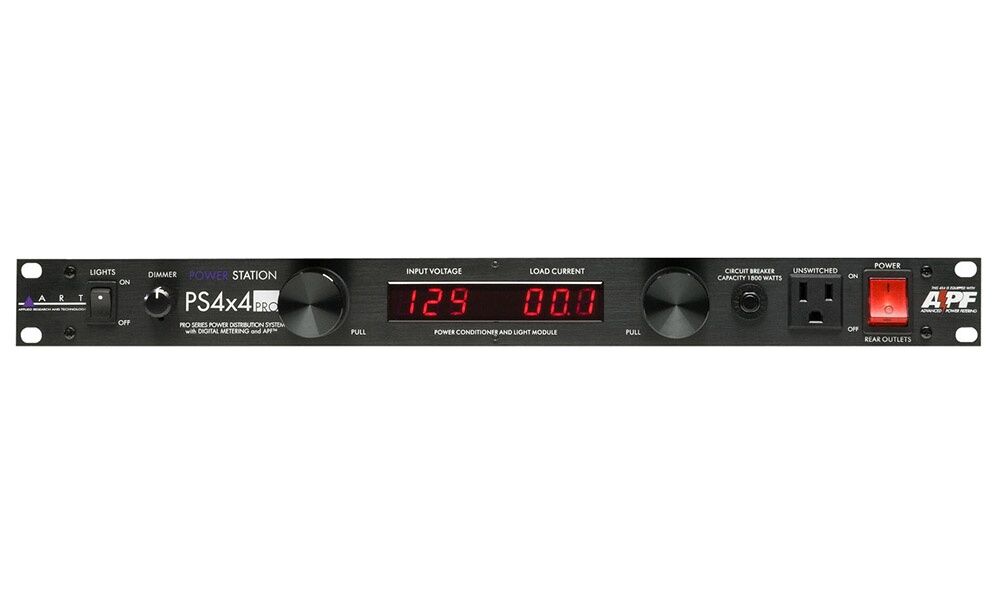

ART PS4x4Pro

Dual LED metered PDS.

PS4X4PRO

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Art’s Pro Series Power Distribution Systems are reliable power conditioners designed for surge protection in many applications. All Pro Series models have an additional internal discrete module called APF (Advanced Power Filtering) that filters out digital and dimmer hash as well as any high frequency noise that is above the audio range, creating a filter that stays effective over the full operating range.

The filter design comprises Common Mode and Differential Mode topologies in series in order to block virtually all of the unwanted noise that is between the AC line and ground, and also the two sides of the AC line. This also reduces a system’s ground loop problems. High frequency noise currents are highly attenuated in both directions so that any line noise that could be generated by a component is not allowed back into the main A.C. wiring. Additionally, any signals above 10kHz are filtered from the line with over 40dB of attenuation above 100kHz and beyond.

All Pro Series power conditioners are designed with a power capacity of 1,800 Watts, surge/spike protection, APF with EMI & RFI filtering, front-mounted unswitched power outlet and an adjustable rear-mounted gooseneck light source for bright illumination behind the rack. The spacing and alignment of the rear outlets to accommodate various size power plugs and AC adapters.

• APF – Advanced Power Filtering

• Pull Out Light Pipes with AutoOff and Dimmer

• Power Capacity of 1800 Watts

• Surge & Spike Protection

• EMI & RFI Filtering

• 8 Rear Outlets with Power Adapter Friendly Positioning

• One Front-mounted Unswitched Power Outlet

Media

Datasheet (170.97 KB)
