BLACKMAGIC DESIGN DeckLink Duo 2

Featuring 4 independent 3G-SDI connections

BMD-BDLKDUO2

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

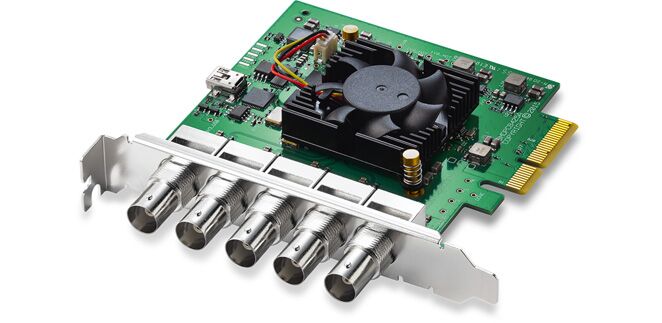

Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCI Express capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!

Connections
SDI Video Inputs

4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.

SDI Video Outputs
4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.

SDI Audio Inputs
16 channels embedded in SD and HD.

SDI Audio Outputs
16 channels embedded in SD and HD.

Sync Input
Tri-Sync or Black Burst.

Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
