BROAMAN Route66 – Video Matrix

40×40 3G-SDI non-blocking router

Route66 - Video matrix

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

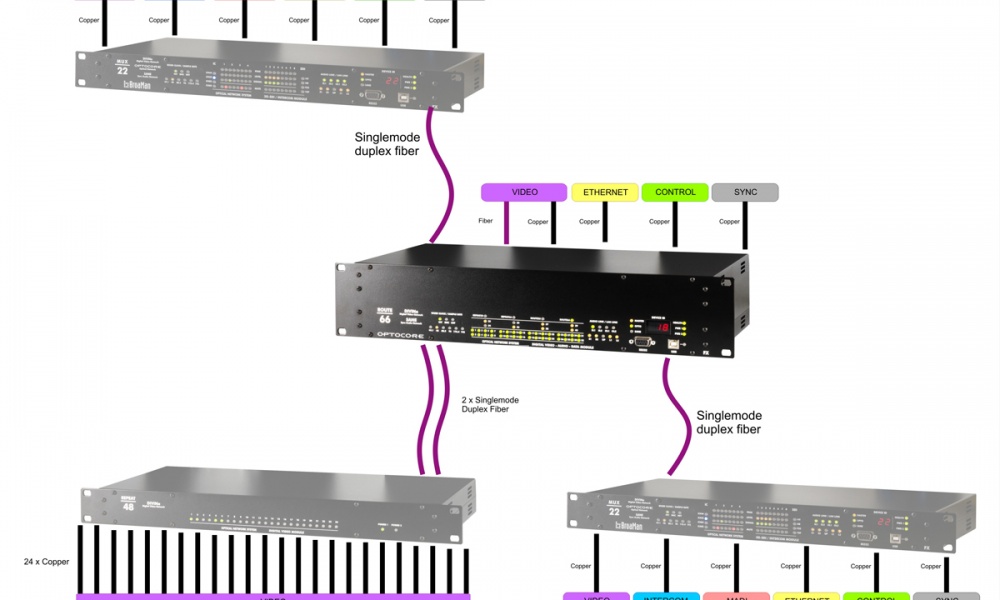

Route66 Video Router is a perfect solution for studio infrastructure, advanced OB Vans and live productions. It can be used as a centralized video, audio and data router with Mux22 or Repeat48 connected as stageboxes providing the required I/O in multiple remote locations. Thanks to local I/O Route66 can be used as a standalone video router. It can be also combined with Optocore audio interfaces, creating one elegant and cost effective solution.

Route66 video matrix can be controlled from Optocore Control software, external hardware or 3rd party software control.



KEY FACTS:

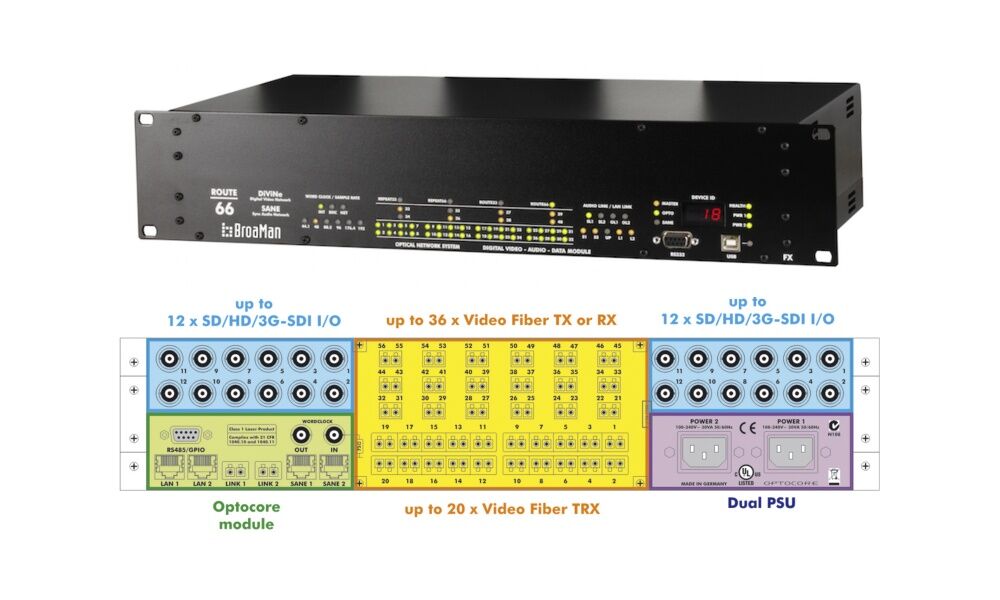

  • Up to 40 x 3G-SDI video inputs
  • Up to 40 x 3G-SDI video outputs
  • Ultra-fast non-blocking 40 x 40 video switcher
  • Modular design
  • 2 x fibre SFP ports for redundant Optocore ring
  • 2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
  • 4 x RS485/422
  • 2 x LAN
  • No fan
  • Built-in WDM modules including fibre optic AUX ports for 3rd party or Optocore protocol transport
  • Dual redundant PSU with extremely low power consuption
  • 2RU chassis

Video ports

  • Standards SD, ED, HD, Dual Link, 3G, ASI, MADI
  • Complies with SMPTE 259M, 292M, 344M, 372M, 424M
  • Interface SDI – Serial Digital Interface

Optical Connection Complies with 21 CFR 1040.10 and 1040.11

  • Connection LC
  • Data rate Dependent on the Video data rate – no bandwidth restriction
  • Fibre cable lengths Standard singlemode transceiver ≤ 10 km
  • Special singlemode transceiver ≤ 80 km (on request)



SANE, LAN ports Convention

  • Audio TIA – 568A/B, Optocore 200 Mbit/s
  • LAN TIA – 568A/B, IEEE – 802.3 10/100 Mbit/s



Serial Data Port Convention EIA / TIA-485

  • Data channels Digital control data 4
  • Data rate Up to 10 Mbps
  • Impedance Termination 330 Ω
  • Source ≤ 10 Ω



Auxiliary Fibre Port 1310nm fibre tunnel

  • Connection Duplex LC
  • Data rate Dependent on the distance between locations – no bandwidth restriction



Word Clock

  • Data rate Depending on selected sample rate Up to 192 kHz
  • Impedance Output ≤ 5 Ω
  • Input 75 Ω
  • Drive level Output ≥ 1 Vpp
  • Zero level Referring to GND + 1.7 V
  • Sense level Input ≥ 400 mVpp



Remote Control

  • RS232 EIA / TIA – 232 57 600 Baud
  • USB USB 2.0 – Device 12 Mbit/s
  • LAN IEEE – 802.3 10/100 Mbit/s



Power Supply

  • Type Switch-mode, universal input
  • Mains voltage 100? 240 V 50 60 Hz
  • Frequency 50 60 Hz
  • Cooling Passive, via surface and ventilation openings on both sides of the device



Dimensions 2 RU / 19″

  • W x H x D 19.0 x 1.73 x 7.87 inch
  • Weight Dependent on configuration
