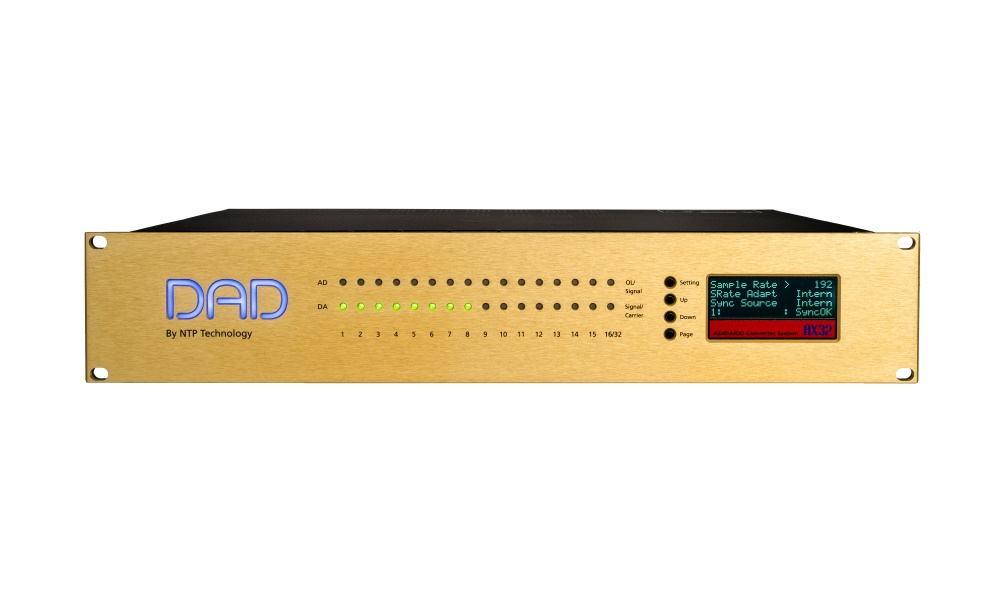

DAD AX32 Base Unit

Monitor control and AX32

AX32-BASE2

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



AX32 is your audio routing centerpiece, digital format converter, world-class AD/DA converter and monitor controller. Quite simply, AX32 changes seamlessly between workflows in seconds, optimising your production time and efficiency.

With the AX32 you get pristine AD and DA conversion with superb sonic quality, versatile I/O structure and IP Audio via Layer 3 Ethernet (Dante) that follows the track of the AX24 with an enhanced performance in terms the sonic quality of the AD andDA conversion, up-to 48 analogue audio channels and a flexible digital signal interface, routing and distribution structure.

With all I/O card and options installed, you can control a 1,500 x 1,500 matrix of audio channels. 8 I/O cards and 2 I/O modules can be installed. Just imagine the flexibility and swift change between workflows you would have right at yourfingertips.

All operation and functional control is managed via the DADman control software.

AX32 base unit includes 8 AES3 I/O (16-ch), 1 coax MADI I/O (64-ch) and Pro Mon licence. All other options must be ordered separately.



Key Features

  • Flexible AD/DA Interface Configuration with mic-pre option
    • Versatile digital interface structure
    • Easy control of converter parameters
    • 8 to 48 analogue channels
    • 8 channels on a card. Up-to 6 analogue card can be installed
    • 8 ch. Line in AD card and 8 ch. Line/Mic pre in AD card
    • 8 ch. Line out DA card with output level control
    • Sample rates 44.1 kHz up-to 384 kHz/DSD
    • High precision internal clock and PLL
  • Versatile Digital Interface Structure
    • Dante 128 ch. I/O Card w/SRC
    • 8 AES I/O interfaces
    • MADI coax and optical I/O
    • 3G SDI embedded audio I/O
    • Ethernet IP audio interface for 64 I/O channels using Dante
    • Such via world clock, AES11, Video, and all digital I/O
    • Adapt to incoming sample rate
  • Easy control of converter parameters
    • Operation via DADman control software for Windows and OSX
    • Ethernet control interface
    • Complaint with Dante Ethernet controller

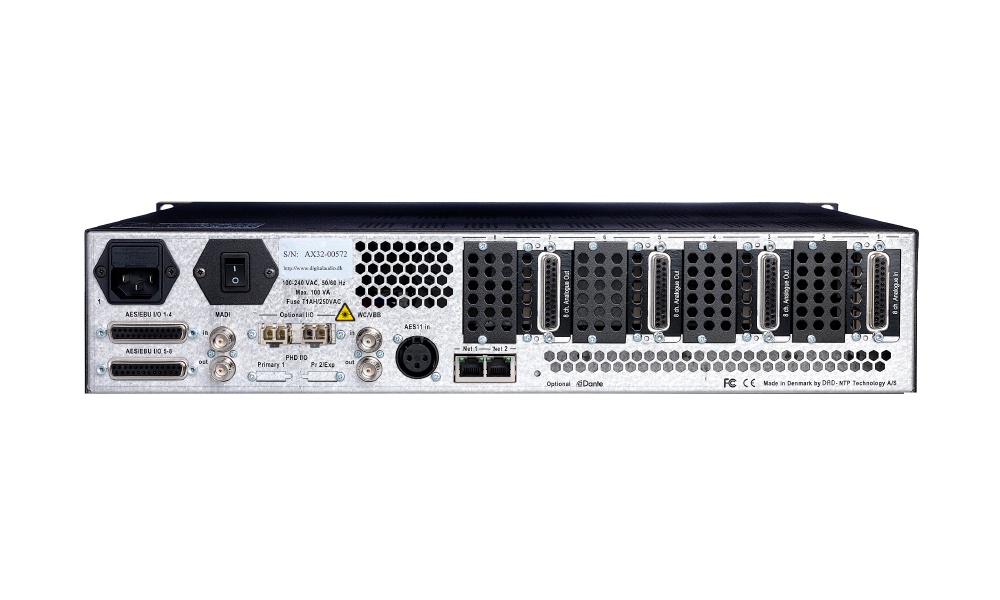

  • Standard Interface Capability
    • 8 AES I/O on two D25 connectors with 16 mono channels
    • MADI I/O on BNC connectors with 64 mono channels
    • Interface for IP Ethernet control
