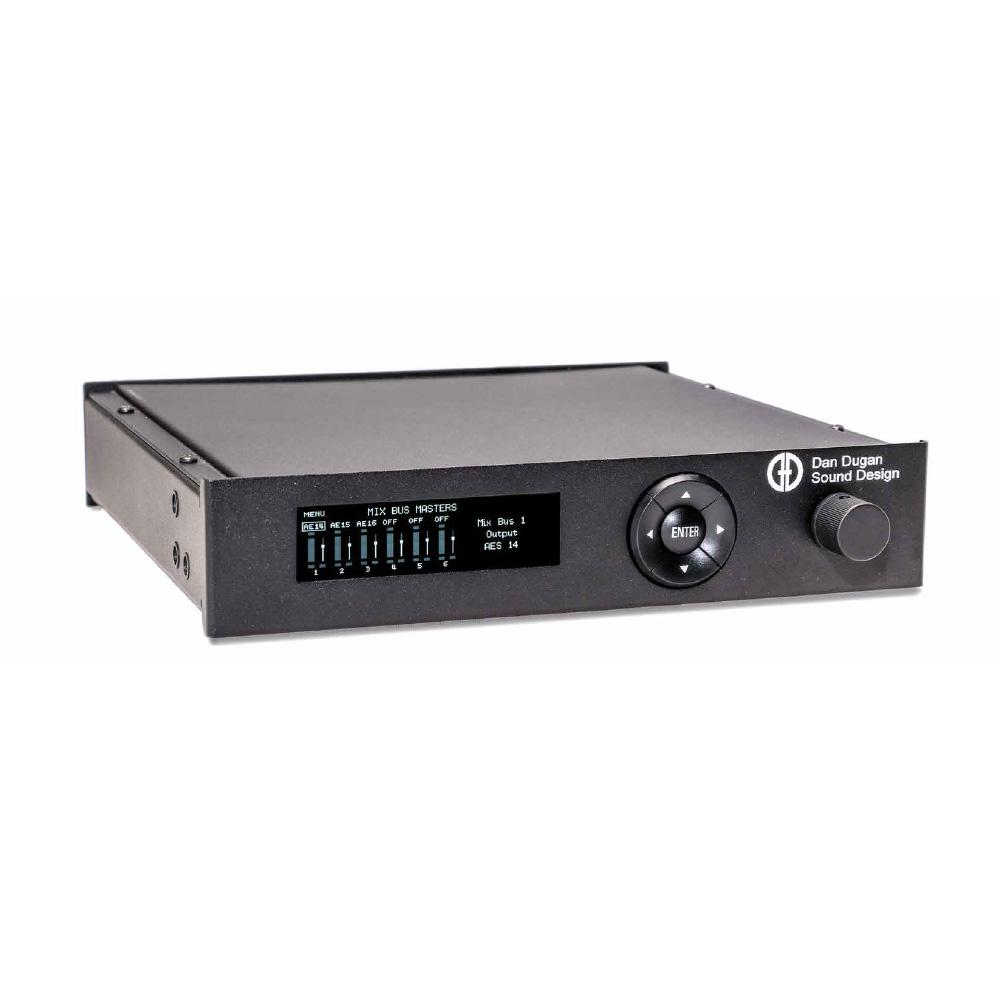

DAN DUGAN Model E-3A

Automatic Mixing Controller with AES I/O

MODEL-E-3A

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Features:

  • 32 channels of processing, 16 AES plus 16 ADAT
  • 96 kHz sampling rate supported (AES only)
  • All Dugan algorithms: Speech System, Music System and Gain Limiting
  • Six-bus pre/post matrix mixer
  • Channels may be grouped into three independent automixers
  • Word clock I/O
  • Power over Ethernet (PoE) capable
  • Three switched Ethernet ports available for control network
  • Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)
  • Physical remote control from Dugan Model K Control Surface (sold separately)
  • Miniature control panel for setup or adjustments from front panel
  • Standard Dugan linking for larger systems

Applications:

  • TV news and sports panels, political debates
  • Conference reinforcement, video trucks
  • Reality shows, game shows
  • Wireless mics for theater
  • Boardrooms, civic meeting rooms
  • Teleconferencing and distance learning

Product Specs

Digital Input/Output
AES/EBU AES3, 16 inputs, 16 outputs
Optical (adat) Eight channels in and eight channels out
16-Channel mode: link connectors reassigned as ADAT channels 9-16
Gain Unity
Sample Rate 48 or 96 kHz
Bit Depth 24 bit
Latency 2 ms
Frequency Response 10 Hz – 22 kHz, ± 0.0075 dB
Output Noise -125 dBFS (20 Hz – 20 kHz), -128 dBAFS
Distortion -125 dBFS
Linking Up to eight units can be linked into one system in an optical ring network
Linking uses ADAT hardware but does not adhere to ADAT protocol
Synchronization
Sources Word Clock, AES Inputs 1–16, ADAT, Internal
Power
Connector Coaxial with locking collar, 5.5 mm o.d., 2.1 mm i.d., center positive
Electrical Nominal 12 VDC, 1.5 A maximum; accepts 12–24 VDC
PoE 802.3at Type 2 25.5 W
External Supply Input: 100–240 VAC, 50–60 Hz, 30 W
Output: 18 VDC, 1.33 A
Approved UL, CE
Dimensions 1RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm)
Weight 3.4 lb (1.5 kg)
5.8 lb (2.6 kg) in shipping box with power supply

Less –
