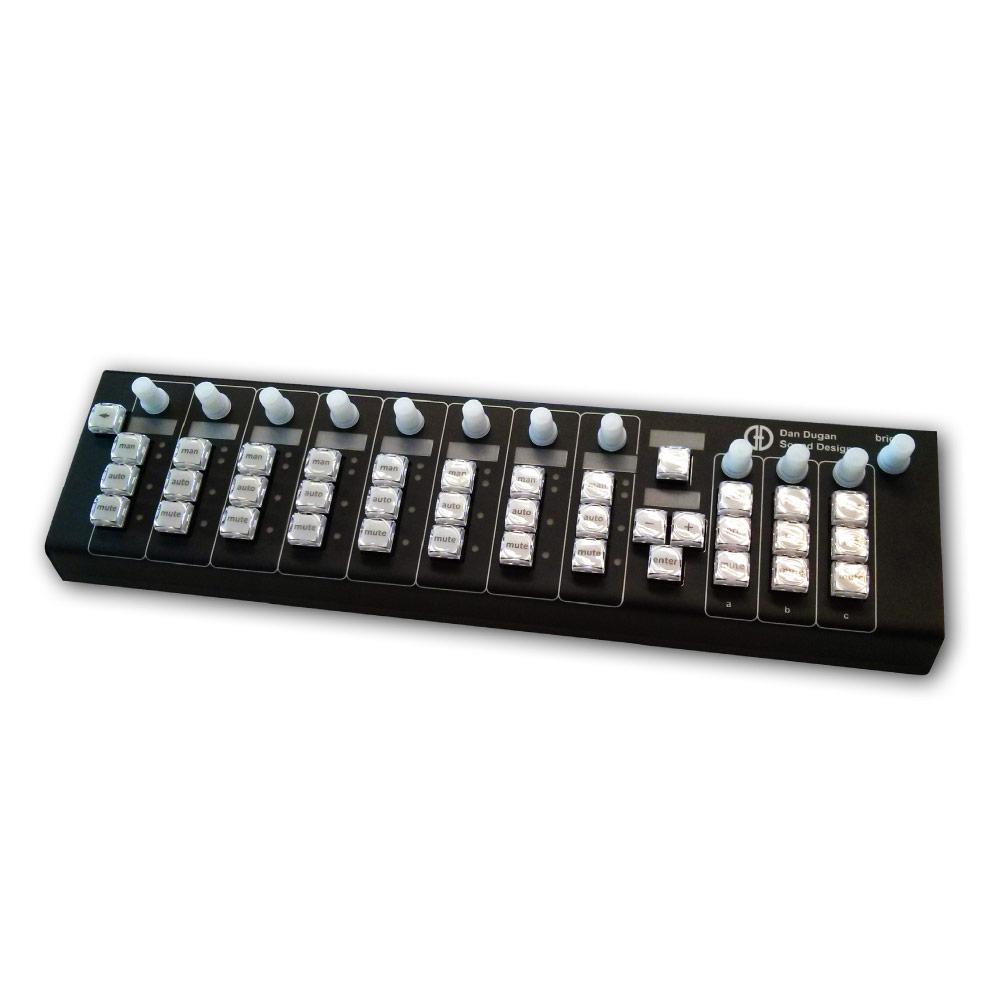

DAN DUGAN Model K

Tactile Controller for Dan Dugan Mixing Systems

MODELK

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



The Model K operates any number of Dugan Automatic Mixing Controllers. It pairs with Dugan Control Panel for Java and Dugan Control Panel for iPad (later release). It also features a four-port Ethernet switch for added connectivity. The brightness of buttons and displays is adjustable for extra visibility and discretion when necessary.

Features:

  • Physical buttons – eyes on stage, finger on button
  • Fast operator response to kill-mic situations
  • Control Dugans from your desktop
  • Change automixer settings without using computer
  • Record and recall scenes

Product Specs

connectors
power Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., positive centre
network 4 x RJ-45: Four-port internal switch
power
electrical Nominal 12 VDC, <1 A maximum; accepts 12-24 VDC
external supply Input: 100-240 VAC, 50-60 Hz, 0.7 A
Output: 18 VDC, 1.33 A
Approved: UL, GS, CE, FCC, CCC, LPS
dimensions H = 4.0 in (101.6 mm) D = 2.5 in (63.5 mm) W = 17.0 in (431.8 mm)
3RU Rack-mount adaptor plate included: H = 5.25 in (133.35 mm) W = 19 in (482.6 mm)
weight 4.0 lb (1.81 kg)
In shipping box with power supply: 9.0 lb (4.08 kg)
