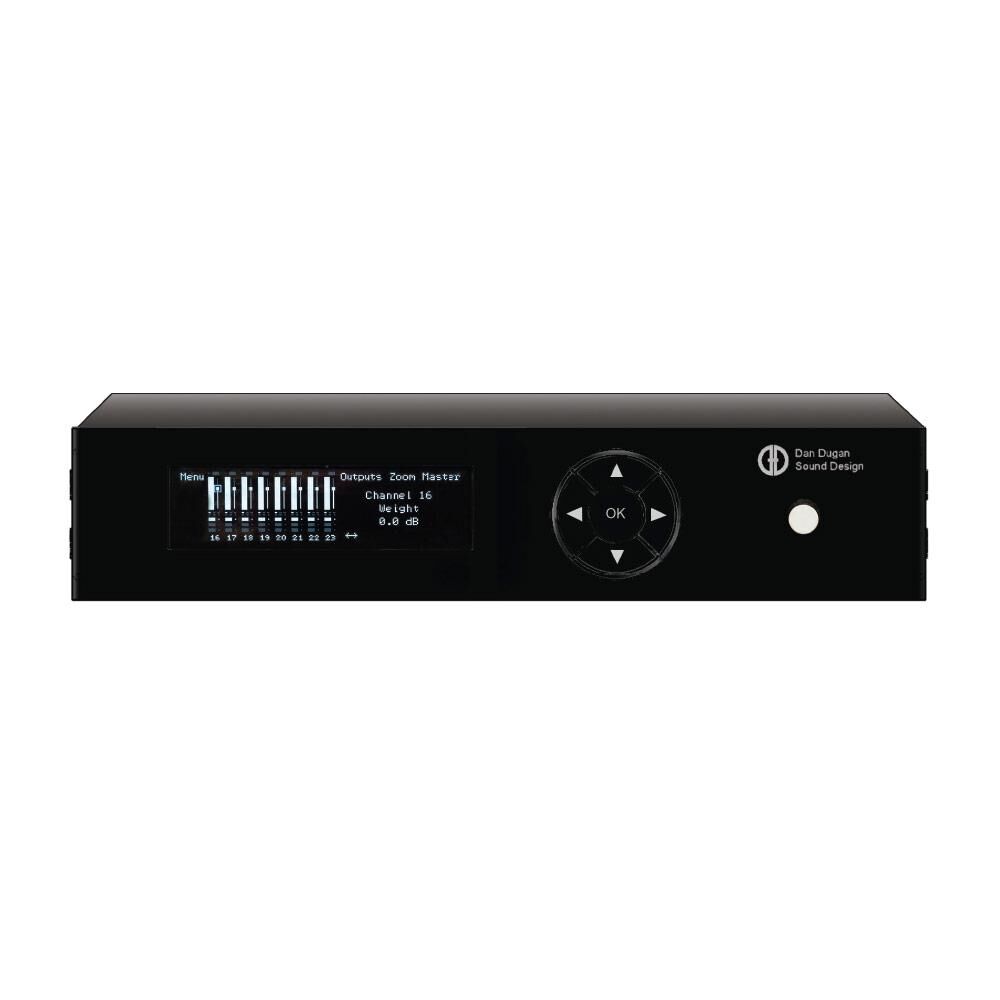

DAN DUGAN Model M

Automatic Mixing Controller (with MADI)

MODELM

£3,670.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



The Model M is ideal for TV news and sports panels, political debates, conference reinforcement, video trucks reality shows, game shows, wireless mics for theatre, boardrooms, civic meeting rooms, teleconferencing and distance learning, or houses of worship to name but a few. It eliminates late upcuts, reduces PA feedback and studio noise, and reduces comb filtering from adjacent mics. It provides up to 64 channels of processing with any automatic mix algorithms, and is equipped with both optical and BNC connections.

Features:

  • 64 channels of processing
  • 96 kHz sampling rate supported (32 channels)
  • All Dugan algorithms: Speech System, Music System and Gain Limiting
  • Channels may be grouped into three independent automixers
  • Optical and BNC MADI connectors
  • Power over Ethernet (PoE) capable
  • Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)
  • Physical remote control from Dugan Model K keyboard (sold separately)
  • Miniature control panel for setup or adjustments from front panel
  • Standard Dugan linking for larger systems or 16 channels ADAT I/O

Product Specs

audio
MADI I/O AES10-2008 (r2014) optical or coaxial
64 channels @ 48 kHz sample rate
32 channels @ 96 kHz sample rate
ADAT I/O 16 channels
Gain Unity
Sample rate 48 – 96 kHz
Bit depth 24 bit
Audio latency < 1 ms
Frequency response 10 Hz – 48 kHz, +/- 0.0075 dB @ 96 kHz
Output noise -125 dBFS (20 Hz – 20 kHz), -128 dBAFS
Distortion -125 dBFS
Algorithms Dugan Speech System™, Dugan Music System™, Dugan Gain Limiting™
Ainking Up to eight units can be linked into one system in an optical ring network
Connectors
Audio I/O MADI: Two optical (multimode) SC (IEC 61754-4), two coaxial BNC 75-Ohm
ADAT: Two TOSLINK optical
Word clock i/o Two BNC 75-Ohm
Linking I/O Two TOSLINK optical
Network Three RJ-45, one accepts PoE
Connector Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., centre positive
Electrical Nominal 12 VDC, 1.0 A maximum (12 W); accepts 12-24 VDC
PoE 802.3af-2003-compliant powered device (PD)
External supply Input: 100-240 VAC, 50-60 Hz, 24W
Output: 18 V, 1.3 A
Approved: UL, GS, CE, FCC. LPS, CCC(S&E)
Dimensions 1 RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm)
Weight 3.5 lb (1.6 kg)
7 lb (2.5 kg) in shipping box with rack mounting kit and power supply
