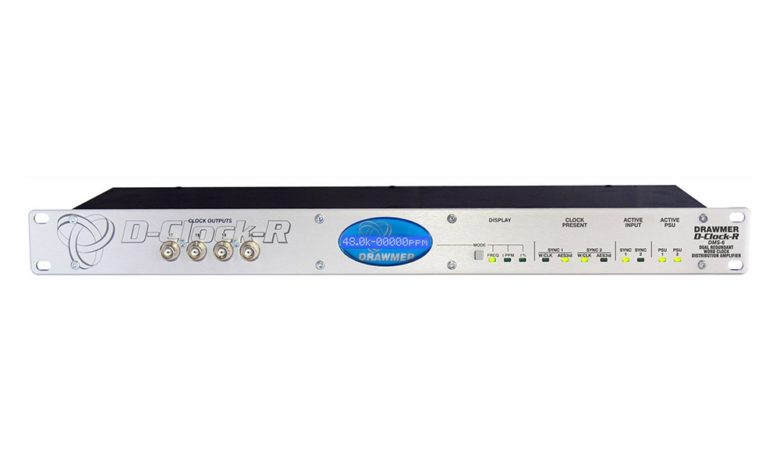

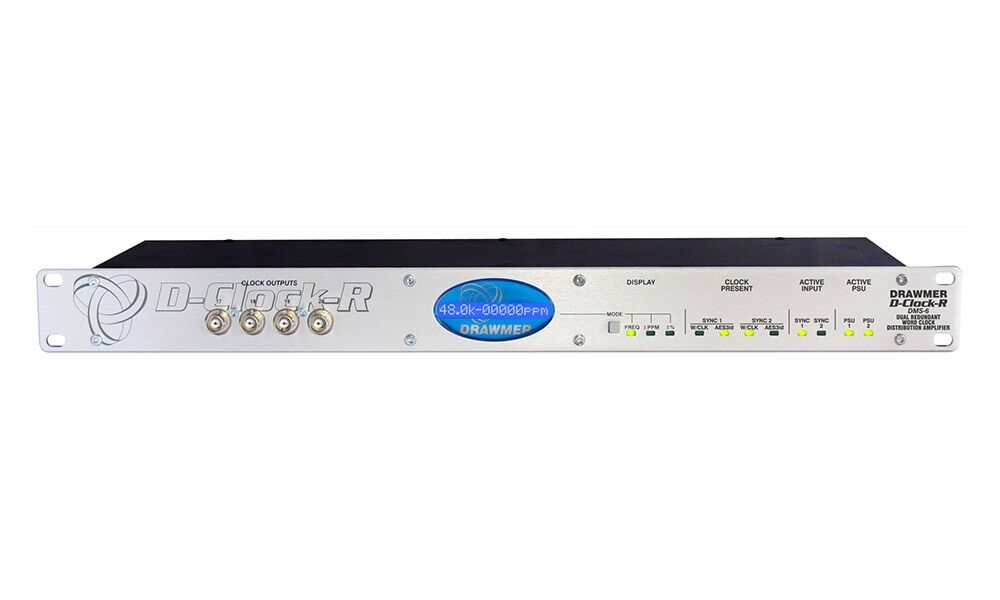

DRAWMER D-Clock-R

Dual redundant word clock distrubtion amplifier.

DMS-6

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Expanding on the renowned D-Clock in providing word clock measurement and distribution, the D-Clock-R has been designed with not only studio recording in mind but also the live and broadcast environment, where reliability and stability are absolutely imperative.

Designed for fail-safe operation the D-Clock-R as been developed with dual redundancy for both the power supplies and also the auto-sensing clock inputs, ensuring that the show will go on regardless of technical difficulties.

Dual Redundancy Power Supply via 2 x universal voltage filtered mains power inlets for continuous operation & reliability.

LCD Display with three sample rate measurement modes and accurate to 2ppm.

Dual Redundant Auto-Sensing WordClock / AES3id BNC Inputs provide continuous operation and added dependability.

The inputs provided are a default and auxiliary, capable of locking on to both word clock and AES-3id, with the source automatically selected depending on the strength of signal.

Twelve BNC clock outputs are situated on the rear panel with a further four on the front panel for quick patching to other digital devices.
