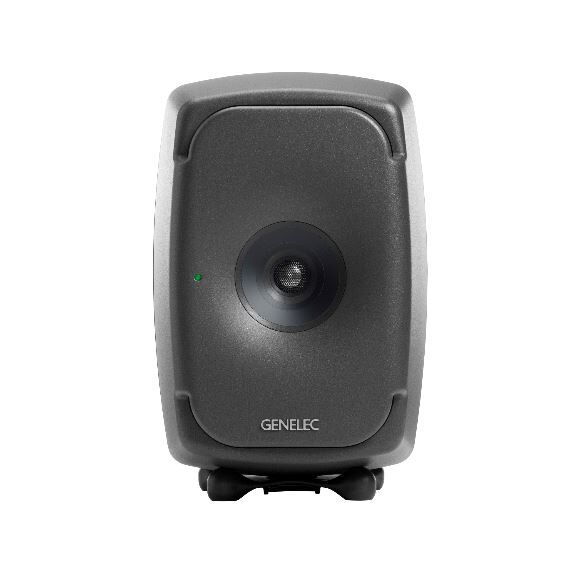

GENELEC 8341AP

Smart Active Coaxial Three-way Monitor System

8341AP

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Ultimate Point Source

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones – 8331, 8341 and 8351 – are in an elite league of their own. All being ultimate point source monitors, they combine a number of unique Genelec innovations with sustainable manufacturing, but without a single compromise on sound.

The Ones not only promote faster and more consistent production decision making, but also longer listening time than traditional loudspeakers, because unnatural imaging, a main contributor to listener fatigue, is minimized. Dispersion is controlled over an unusually wide frequency range thanks to the large integrated waveguide (DCW™) with the hidden dual woofers; and orientation may be either horizontal or vertical. Their looks are striking too, either way you turn them.

As bigger brother to the super-compact 8331A, the 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully – every time.

Technical Specifications

SPL max short-term 110/116 dB (1/0.5 m)
Frequency Response 38 Hz – 37 kHz (-6 dB)
Accuracy of Freq. Resp. ± 1.5 dB (45 Hz – 20 kHz)
Self-generated noise < 3 dB (A weighted, 1 m) Bass drivers, dual 178 x 97 mm oval 7 x 3 7/8 in
Mid driver 90 mm, 3 1/2 in. Coaxial
Treble driver 19 mm, 3/4 in. Coaxial
Amplifier Power 250 + 150 + 150 W
Audio inputs Analogue, AES/EBU
GLM Network Dual RJ45 (CAT5 cable)
In-situ Calibration DIP switches or AutoCal
Dimensions H x W x D 370 x 237 x 243 mm 13 3/4 x 9 3/8 x 9 1/2 in
Weight 9.8 kg, 22 lb
