Smart Active Coaxial Three-way Monitor System
Product lists can be submitted to HHB for a packaged quotation
Ultimate Point Source

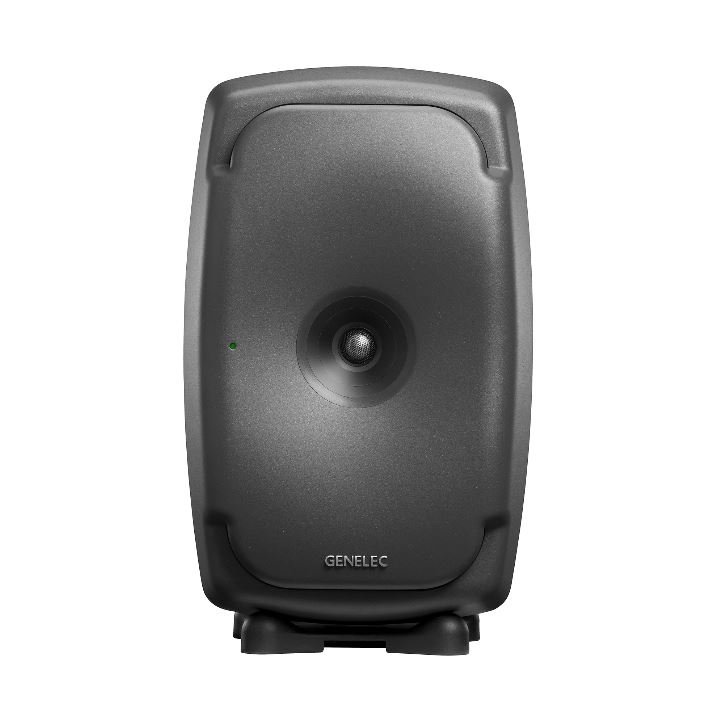

The new flagship of The Ones range, the 8361A offers the most advanced acoustic performance of any studio monitor on the planet.
The largest of our coaxial point source monitors, the 8361 offers extremely high dynamic range, unrivalled directivity and imaging and a short term SPL of 118 dB, enabling it to deliver an exquisite monitoring experience at any listening distance up to 5 metres – and therefore making it perfect for small to medium sized rooms.
The 8361 features two newly-designed Acoustically Concealed Woofers – generating high SPL output with extremely low distortion – and brand new MDC coaxial midrange and tweeter drivers which provide smooth directivity, low distortion, high SPL and extended frequency response up to 40 kHz. The 8361’s unique Minimum Diffraction Enclosure eliminates colouration and its entire front baffle acts as a Directivity Control Waveguide – producing a fantastically wide, uncoloured sweet spot.
Like all models in The Ones series, the 8361 promotes faster and more consistent decision making, and also allows you to work reliably on longer sessions – because unnatural imaging, a main contributor to listener fatigue, is minimised. And by using it in conjunction with our powerful GLM calibration software, the 8361 will adapt to your acoustic space – compensating for any detrimental room influences and helping you produce mixes that translate perfectly, from stereo through to highly complex immersive formats.
SPL max short-term 118/124 dB (1/0.5 m)
Frequency Response 30 Hz – 43 kHz (-6 dB)
Accuracy of Freq. Resp. ± 1.5 dB (36 Hz – 20 kHz)
Self-generated noise < 5 dB (A weighted, 1 m) Bass drivers, dual 263 x 137 mm oval 10 3/8 x 5 3/8 in
Mid driver 130 mm, 5 in. Coaxial
Treble driver 25 mm, 1 in. Coaxial
Amplifier Power 500 + 150 + 150 W
Audio inputs Analogue, AES/EBU
GLM Network Dual RJ45 (CAT5 cable)
In-situ Calibration DIP switches or AutoCal
Dimensions H x W x D 593 x 357 x 347 mm 23 3/8 x 14 x 13 5/8 in
Weight 31.9 kg, 70 lb
