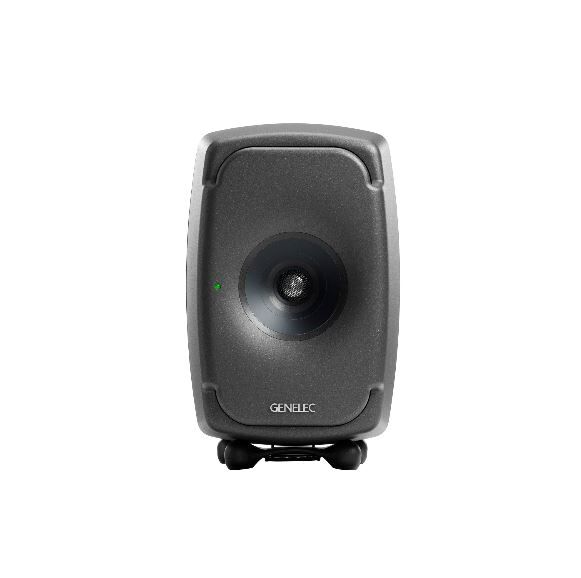

GENELEC 8331AP

Smart Active Coaxial Three-way Monitor System

8331AP

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Ultimate Point Source

Incredible three-way point source monitor with the footprint of a compact two-way. When space and precision is of the essence, nothing even comes close.

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones – 8331, 8341 and 8351 – are in an elite league of their own. All being ultimate point source monitors, they combine a number of unique Genelec innovations with sustainable manufacturing, but without a single compromise on sound.

The Ones not only promote faster and more consistent production decision making, but also longer listening time than traditional loudspeakers, because unnatural imaging, a main contributor to listener fatigue, is minimized. Dispersion is controlled over an unusually wide frequency range thanks to the large integrated waveguide (DCW™) with the hidden dual woofers; and orientation may be either horizontal or vertical. Their looks are striking too, either way you turn them.

The final touch when positioning mics, mixing or mastering is the most demanding. For such critical tasks, even when performed in small rooms or in ultra near field applications, 8331 offers an outstanding solution where none existed before. With the latest SAM technology included, 8331 always makes the best of the room and monitor placement. Use the Genelec GLM application and its auto-calibration function, based on experience from thousands of studios around the world, to compensate for detrimental room influence and delay, regardless if you work in mono, stereo or immersive formats.

Technical Specifications

SPL max short-term 104/110 dB (1/0.5 m)
Frequency Response 45 Hz – 37 kHz (-6 dB)
Accuracy of Freq. Resp. ± 1.5 dB (58 Hz – 20 kHz)
Self-generated noise < 0 dB (A weighted, 1 m Bass drivers, dual 142 x 76 mm oval 5 5/8 x 3 in
Mid driver 90 mm, 3 1/2 in. Coaxial
Treble driver 19 mm, 3/4 in. Coaxial
Amplifier Power 72+36+36 W
Audio inputs Analogue, AES/EBU
GLM Network Dual RJ45 (CAT5 cable)
In-situ Calibration DIP switches or AutoCal
Dimensions H x W x D 305 x 189 x 212 mm 11 3/4 x 7 1/2 x 8 3/8 in
Weight 6.7 kg, 15 lb
