GORGY TIMING LEDI 7.S

Indoor / Single face LED clock with tri-colour display

N366/N1177

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

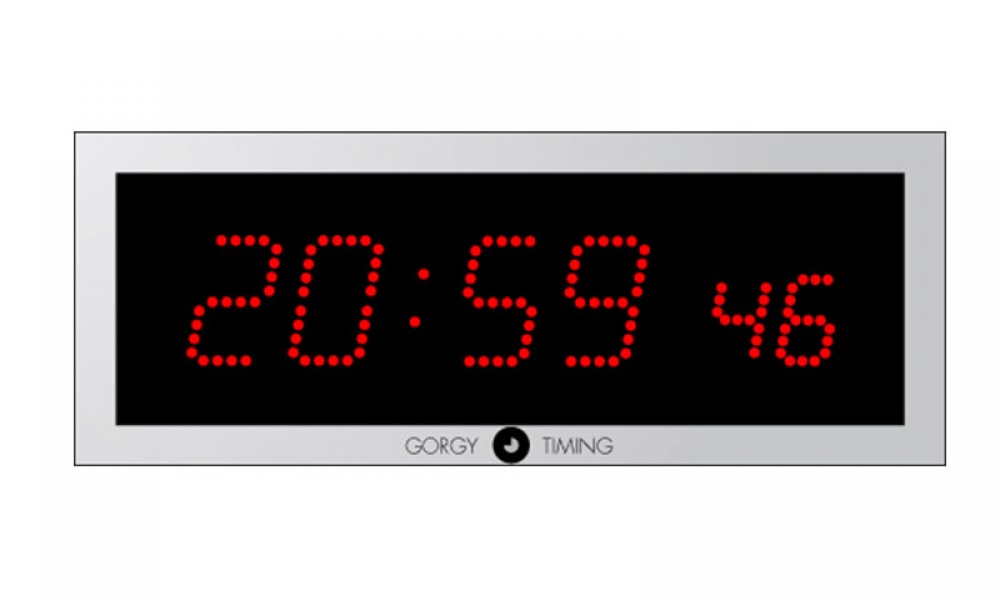

The Gorgy Timing LEDI 7.S is a single sided LED Clock for indoor use that displays date or time to the second. LEDI 7.S can be synchronised by a master clock or a timeserver. In standalone and pulse mode the user can set the time manually.

LEDI Clocks are perfectly silent and maintain a regularity of brightness with a 160-degree viewing angle. The front face is coated with an anti-glare and anti-scratch surface that delivers a 60000 : 1 level of contrast. This display can be set in red, green or yellow (optional white or blue).

Housed in an anodised aluminium case, LEDI can be fixed with a wall mount (screw lock) or flush mount with simply “plug and play” installation. An EMC filter provides protection against over-voltage and industrial interference. All

LEDI Clocks are offered with digit sizes from 50-110mm, as Indoor and outdoor versions, single or double-sided. All Gorgy Timing Clocks are covered by a 2-year warranty. Click the data sheet above to view the full range of LEDI clock options.

Dimension 430x 165×62 mm (LxHxD)
Digit height Hour/minute : 70 mm; Seconds : 50 mm
Viewing distance: 30 meters
Synchronisation input options:
• Standalone TCXO quartz time base
• DCF(EUROPE)
• France Inter (EUROPE)
• GPS
• Pulse 24V reversed parallel minute or serial reversed 1/2
minute pulses.
• AFNOR NFS 87500
• IRIG B : shall be specified on Purchase order
• ASCII RS232, ASCII RS422/485
• DHW 869.525 Mhz
• NTP Ethernet 10/100BaseT automatic detection: RJ45
• NTP POE (Power Over Ethernet)
• SMPTE
• Wi-Fi(IEEE 802.11B/G standard)
