MOGAMI RS-422 balanced voltage digital interface cable (2997)

EIA Standard general applications cable

2997-0

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

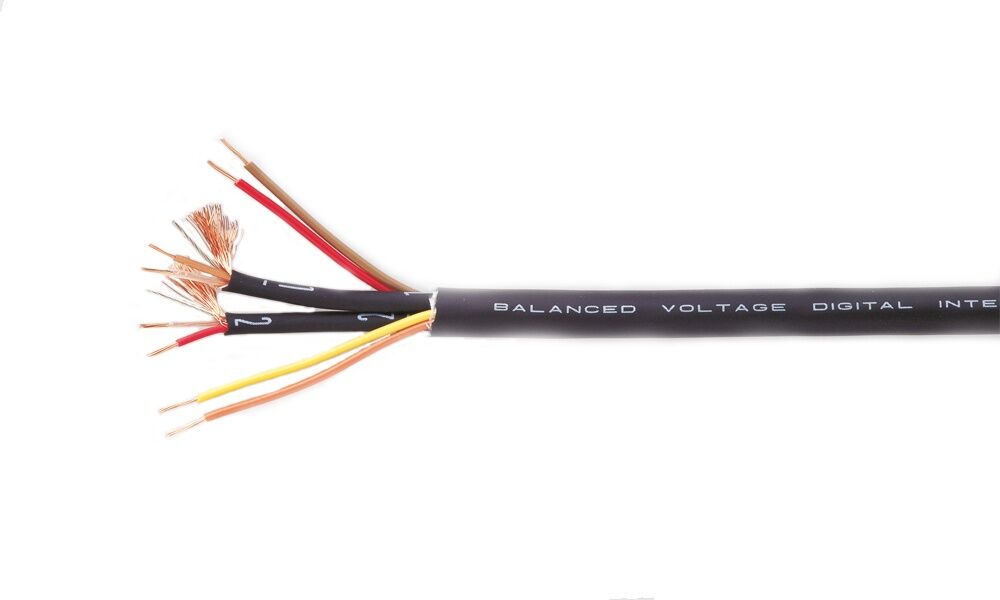

The 2997 is designed to meet EIA Standard RS-422 general applications, with 2 balanced cores and 4 signal conductors. An overall diameter of 7mm enables it to fit into most of the D-sub 9-pin connectors. All of the conductors are the same size (#25AWG) including the drain wire. Its numbering print system on the balanced cores is the same as Mogami snake cables and serves as an efficient identification system together with colour coded remaining four signal conductors. Available in black only.

• Meets EIA Standard RS-422

• 2 balanced cores and 4 signal conductors

• 25AWG conductors

• Overall diameter 7mm
