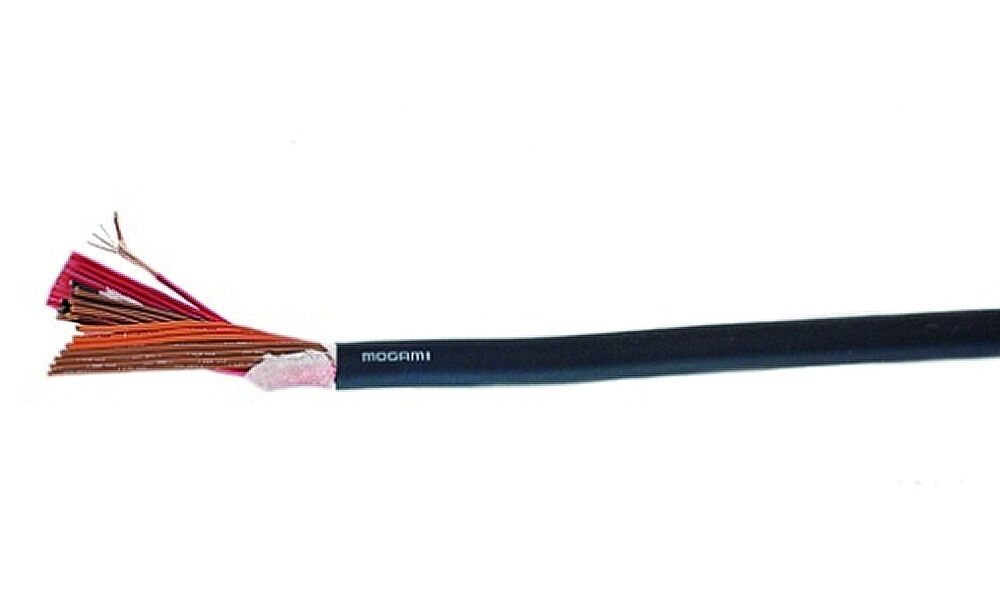

MOGAMI World standard sixteen channel analogue multicore (2934)
Compact, superflexible multicore cable.
Product lists can be submitted to HHB for a packaged quotation
Mogami multicore are compact, super flexible, easy to use with superb electrical and mechanical characteristics Featuring individually twisted shielded pairs and available in 2 to 48 channels, Mogami Multicore cables are rugged, flexible and easy to handle, even at temperatures down to -20°C. The cable’s jacket and inner conductors provide printed channel numbers, in addition to a colour coding system used for identification by standard resistor colour code. Each channel has a drain wire and served (spiral) bare copper shield. XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
• Overall diameter 15.8mm
• Available in black only
• Available in 2 to 48 channels
• Temperatures down to -20°C
• Colour coding
• XLPE insulation
