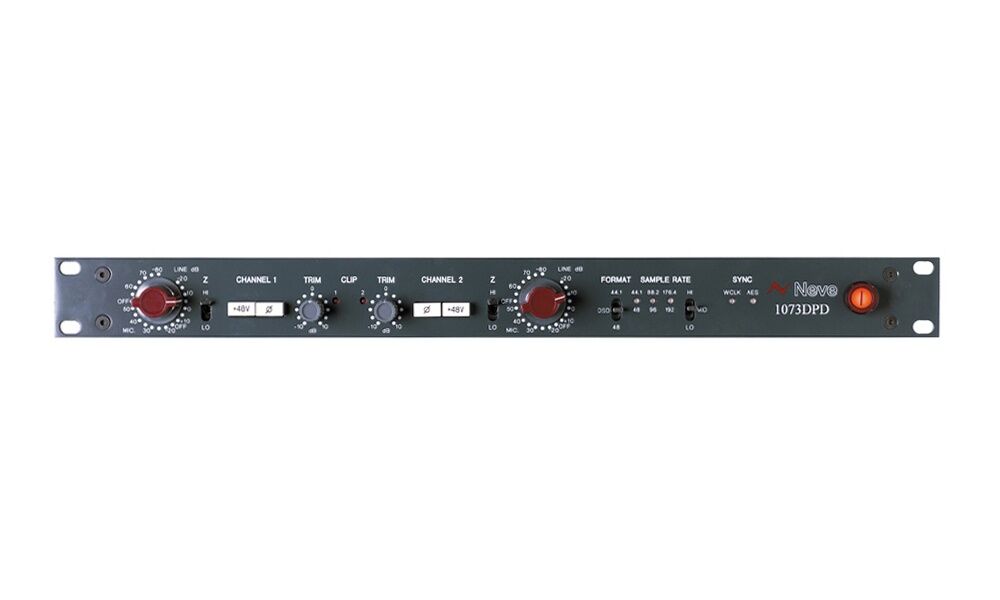

NEVE 1073DPD

Dual-channel mic preamp.

1073DPD

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Two classic Neve 1073 mic pre-amplifiers are complemented by pristine professional ADCs to capture a performance to any required format. In addition to Neve’s famous Class A analogue outputs are a series of digital options including all standard PCM sampling rates up to 192kHz. A unique feature is the Neve DSD output. Analogue insert points are provided ahead of the ADCs. The 1073DPD is an ideal front end for recording to workstations.

• 2 x balanced XLR mic inputs

• 2 x balanced jack/XLR combi line inputs

• 2 x balanced XLR line outputs with balanced 1/4″ jack insert point

• 2 x balanced XLR digital outputs

• BNC DSD & Word Clock I/O

• XLR AES sync

• Comprehensive controls including 60dB mic gain with trim, Hi-Z switch, +48V phantom power and phase reverse

• PCM A-D conversion at 44.1-192kHz sampling rates

• DSD A-D conversion

• 1U rack-mountable
