NUGEN VisLM

Loudness measurement plug-in

VISLM

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Time to take loudness seriously

Confidence and peace of mind

VisLM’s unique loudness meter design delivers everything you need – intuitively, accurately and immediately. Hit the target first time, every time, with VisLM’s instant overview combined with detailed historical analysis. Mix with the confidence and peace of mind you can only experience with an industry standard product.

With a full set of international and regional presets, VisLM is ready to go immediately. And for legacy, station specific or internal specifications, VisLM can be fully configured to handle any situation; from detailed expert reporting to simple safety zones and navigable loudness alerts for less experienced operators.

Reliable quality

Loudness compliance perfectly integrated into your workflow, using a clear resizable interface and groundbreaking ReMEM automated loudness memory technology.

  • True Peak level meters
  • Timecode locked ReMEM
  • Automated loudness overdub
  • Leq(m) and Leq(a) measurement
  • Momentary, Short-term & Integrated loudness
  • ITU-R BS. 1770 | EBU R128 | CALM compliant
  • Suitable for Netflix best practice
  • Navigable flags & alerts

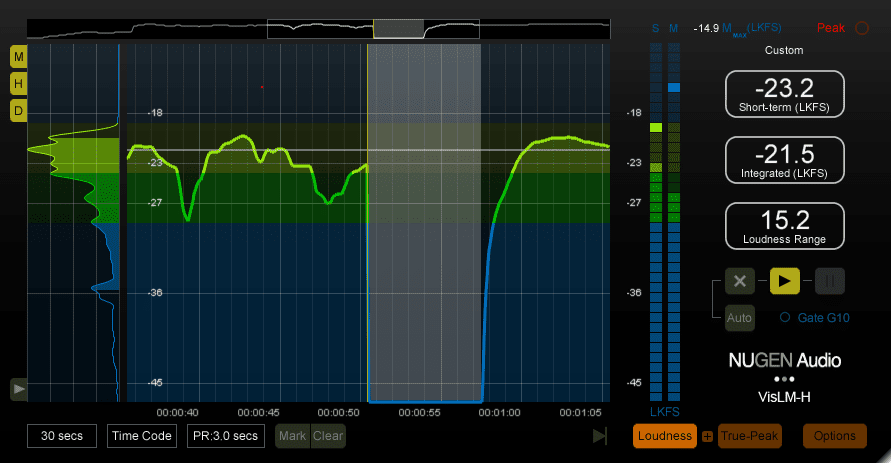

Loudness memory

VisLM remembers up to 24 hours of loudness data, locked to a timecode received directly from your NLE/DAW. Any minor edit or overdub triggers overall loudness updates, eliminating the need for end to end re-measurement. Plus loudness data is saved with the session.

Offline AudioSuite scans can be transferred to the real-time meter for faster than real-time measurement. ReMEM’s workflow acceleration is unparalleled, delivering best-in-class performance.

Comprehensive True Peak metering

VisLM’s True Peak meter displays True Peak values as defined in ITU-R BS.1770. This accurately pre-empts and measures inter-sample peaks, allowing you to avoid potential distortion further downstream.

VisLM logs True Peak violations against your project time code in the scrolling history view, and navigable flags allow you to quickly identify problem areas on the timeline.

Compliant

NUGEN loudness products are compatible with all recommendations and guidance based on the international standard ITU-R B.S. 1770, revisions 1, 2, 3 and 4 including:

ATSC A/85 (CALM ACT)
EBU R128
EBU R128 S1
ARIB TR-B32
OP-59
AGCOM 219/9/CSP
Portaria 354
DPP (BBC, ITV, C4, C5, S4C)
Netflix

VisLM also supports Leq(m) (TASA and SAWA variants) and Leq(a) measurements.

For Avid HDX hardware compatibility, the software is also available in a DSP version.

Product specifications

Available formats

We support AAX, VST, VST3, AU and AudioSuite in both 64-bit and 32-bit versions. RTAS is also available as 32-bit only.



VisLM is also available as a standalone application for Windows and OSX.

Minimum system requirements

Mac OSX 10.7.x / 512 MB RAM
Windows Vista or above / 512 MB RAM



Full ReMEM functionality requires a timecode lock to be provided by the NLE/DAW.

Media

Manual (598.85 KB)
