PRISM SOUND ADA-128

Modular High-Quality Conversion System

ADA128

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

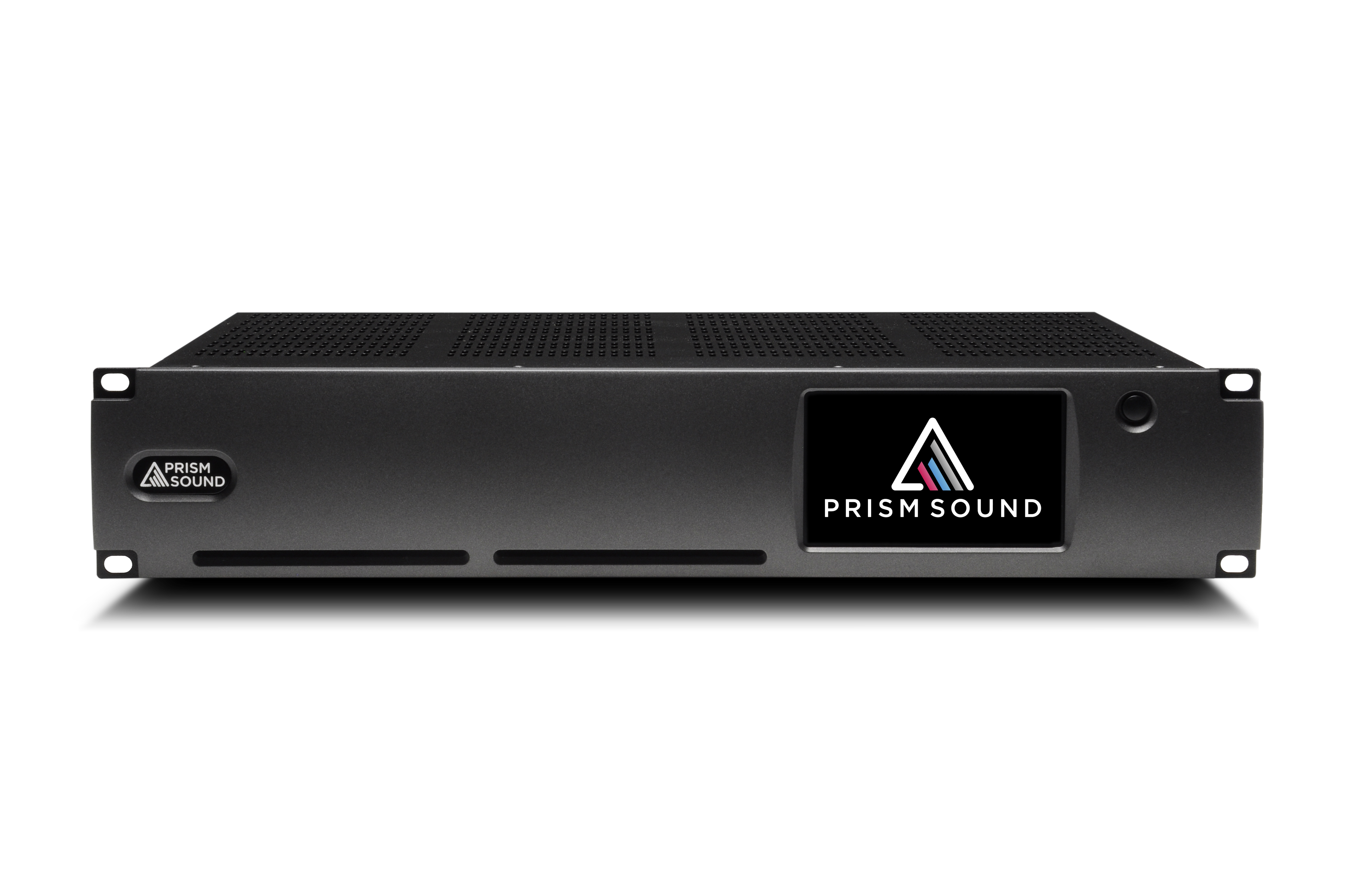

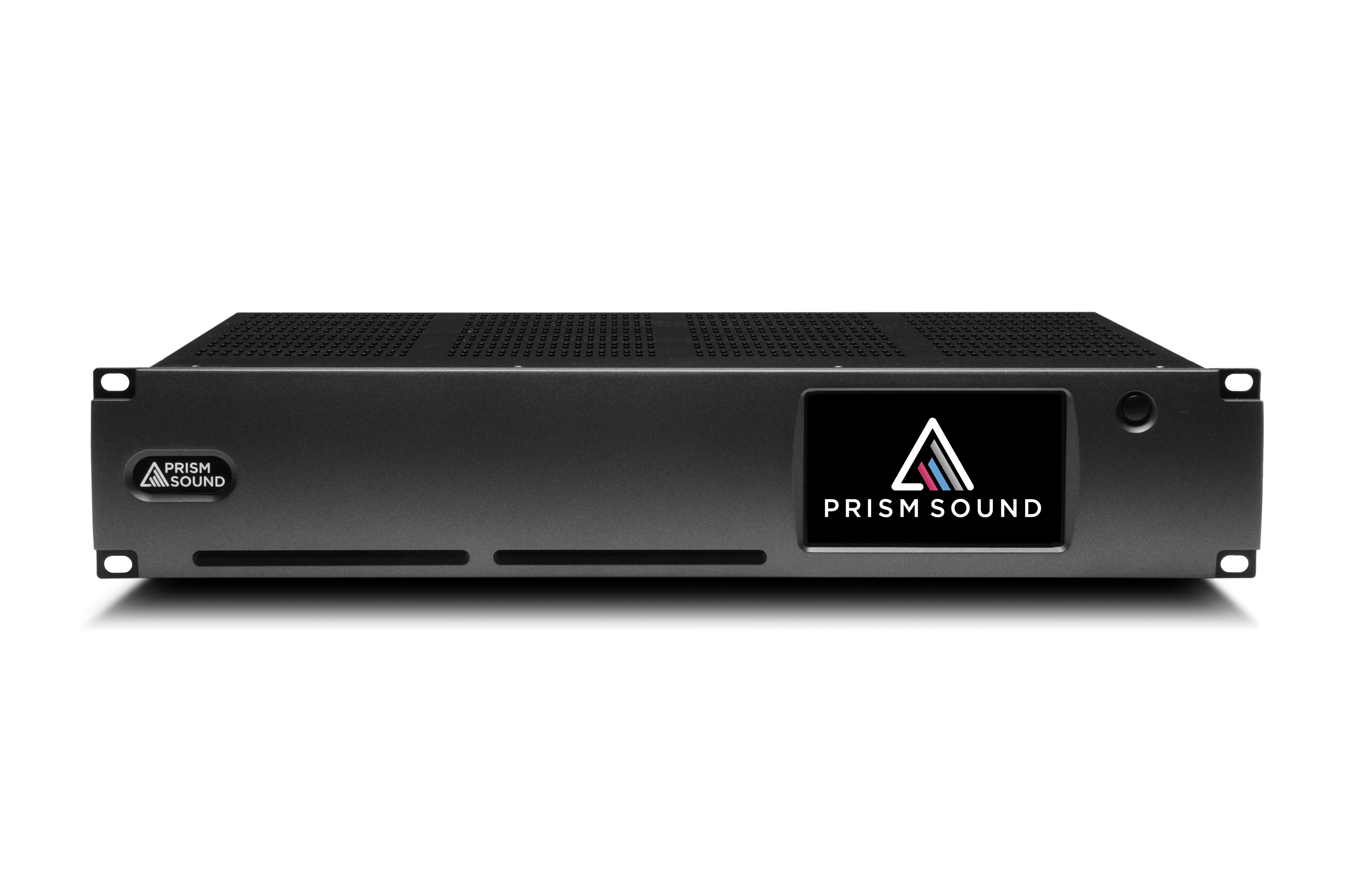

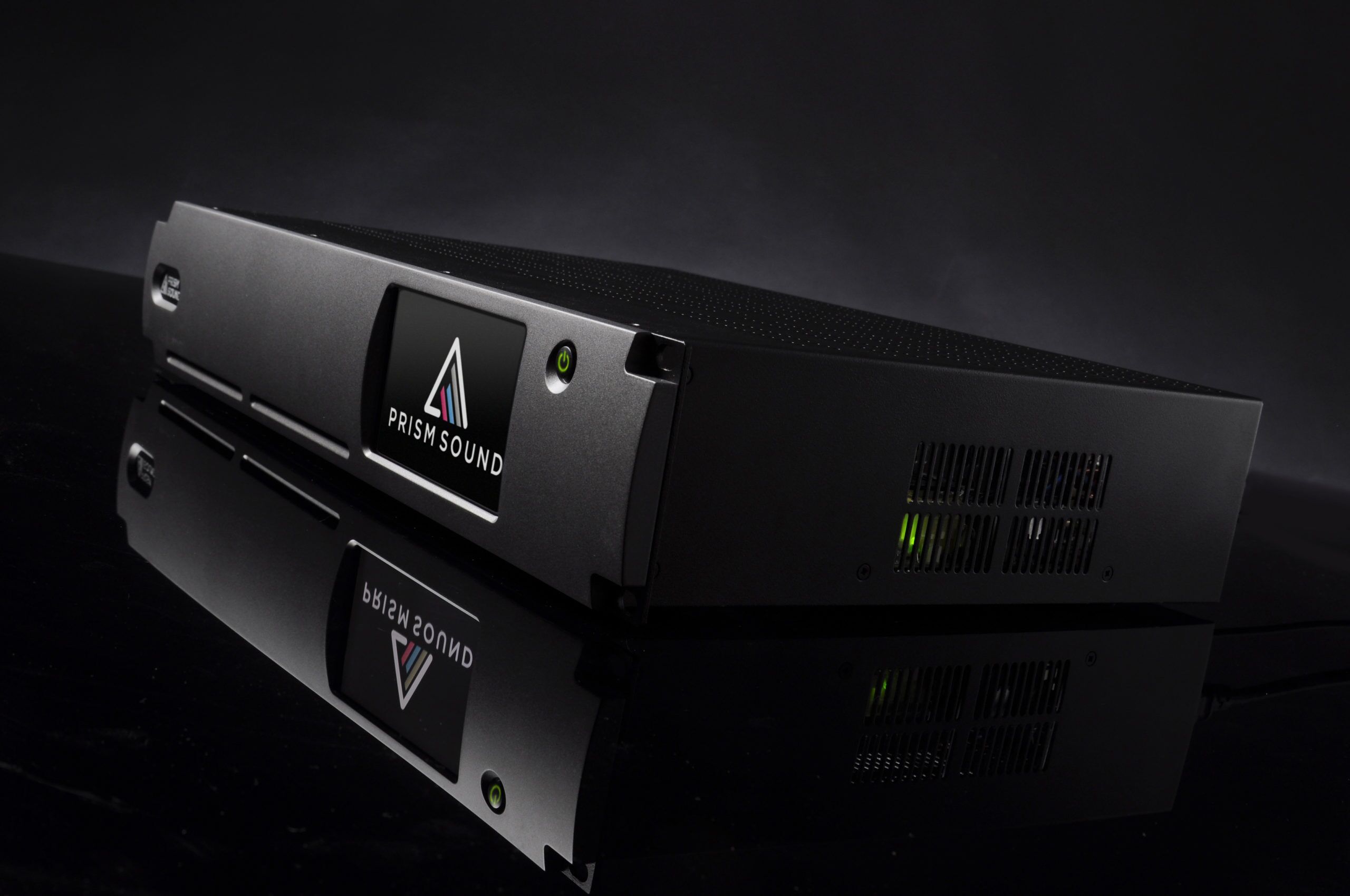

Prism Sound’s long history of developing high quality products has reached new heights with the launch of the ADA-128 – a modular audio conversion system offering up to 128 channels of 32-bit A/D and D/A conversion at sample rates of up to 768kHz.

Without doubt the company’s best performing product to date, the ADA-128 is the latest in Prism Sound’s internationally acclaimed range of Dream A/D and D/A converters. By applying the same ‘no compromise’ design philosophy, Prism Sound has created a product that perfectly complements its existing range, which includes the hugely popular ADA-8XR multichannel converter that can be found in so many prestigious audio facilities worldwide. This new converter brings exceptional levels of flexibility, functionality, and cost effectiveness to the professional audio market without any compromise in sound quality.

Designed as both a conversion system and a high-performance, networkable audio distribution and processing system, the ADA-128 is built around a flexible 2RU mainframe that can be fitted with up to 16 analogue and digital IO modules (each of which nominally provides eight input or output ports, or both). Up to four Host modules provide bidirectional multi-channel connections to host computers, workstations, networks etc. The ADA-128 provides free routing between all of these inputs and outputs under detailed user control, as well as a wide range of processing functions.

Key Features

Modular

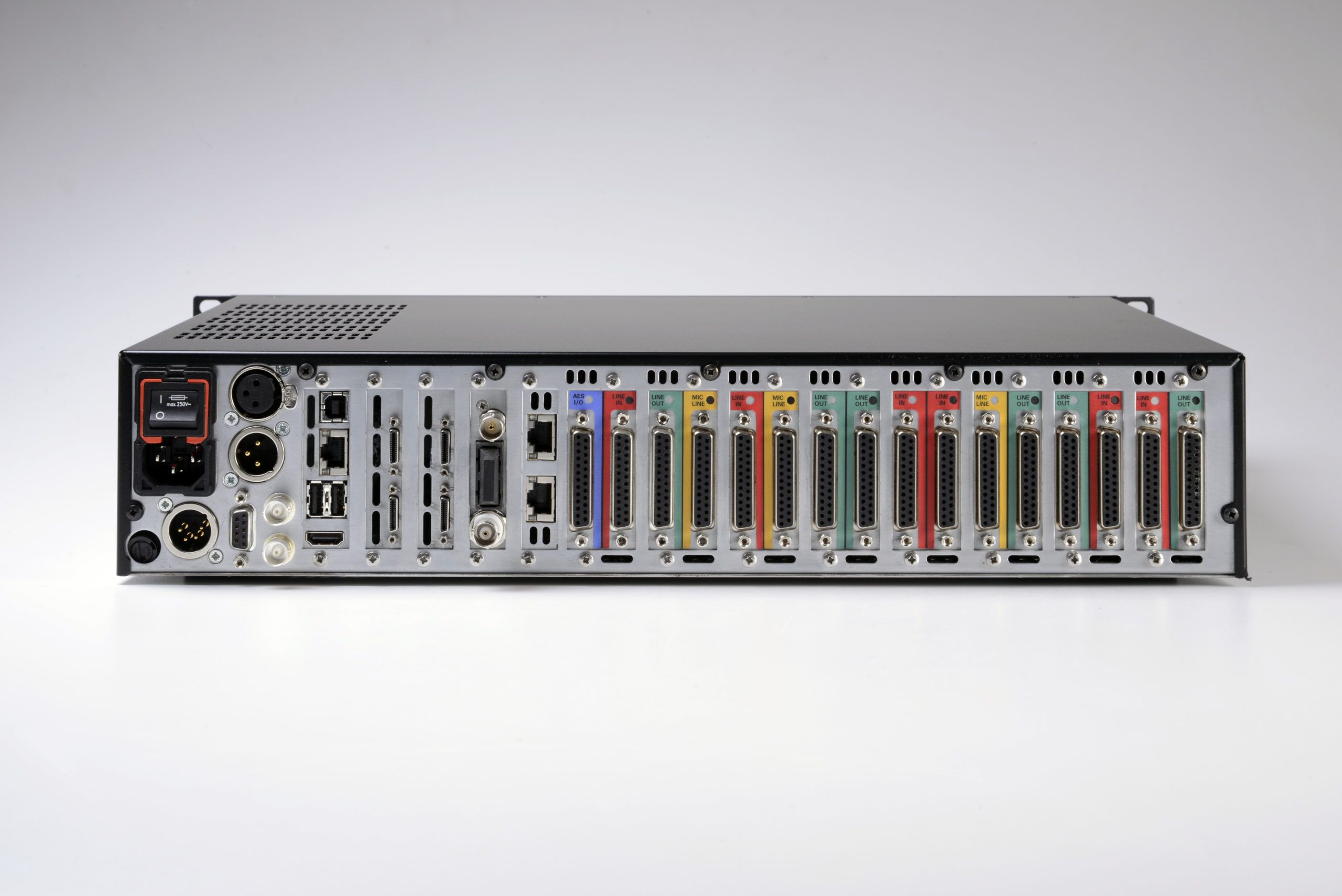

Modular analogue and digital I/O up to 128 channels in a 2U frame with 8 channel line / Out and Mic/Line cards.

QCLOCK
The ADA-128 provides independent synchronisation of I/O cards, enabling operation with up to four different clock domains.

A.D.R.A.
The ADA-128 offers accurate, ultra detailed A/D and D/A conversion providing complete focus of sound to ensure you’re not distracted by colouration while allowing every nuance of a performance to be heard.

DIGITAL FREEDOM
With 4 modular host slots alongside 16 modular I/O slots, the Dream ADA128 offers unrivaled and almost unlimited flexibility.

CONFIGURATIONS

I/O Modular Expansion
The Dream ADA-128 is not just a conversion system, but a high-performance networkable audio distribution and processing system which meets the most exacting requirements of a recording studio through to a film sound stage.

Flexible controls

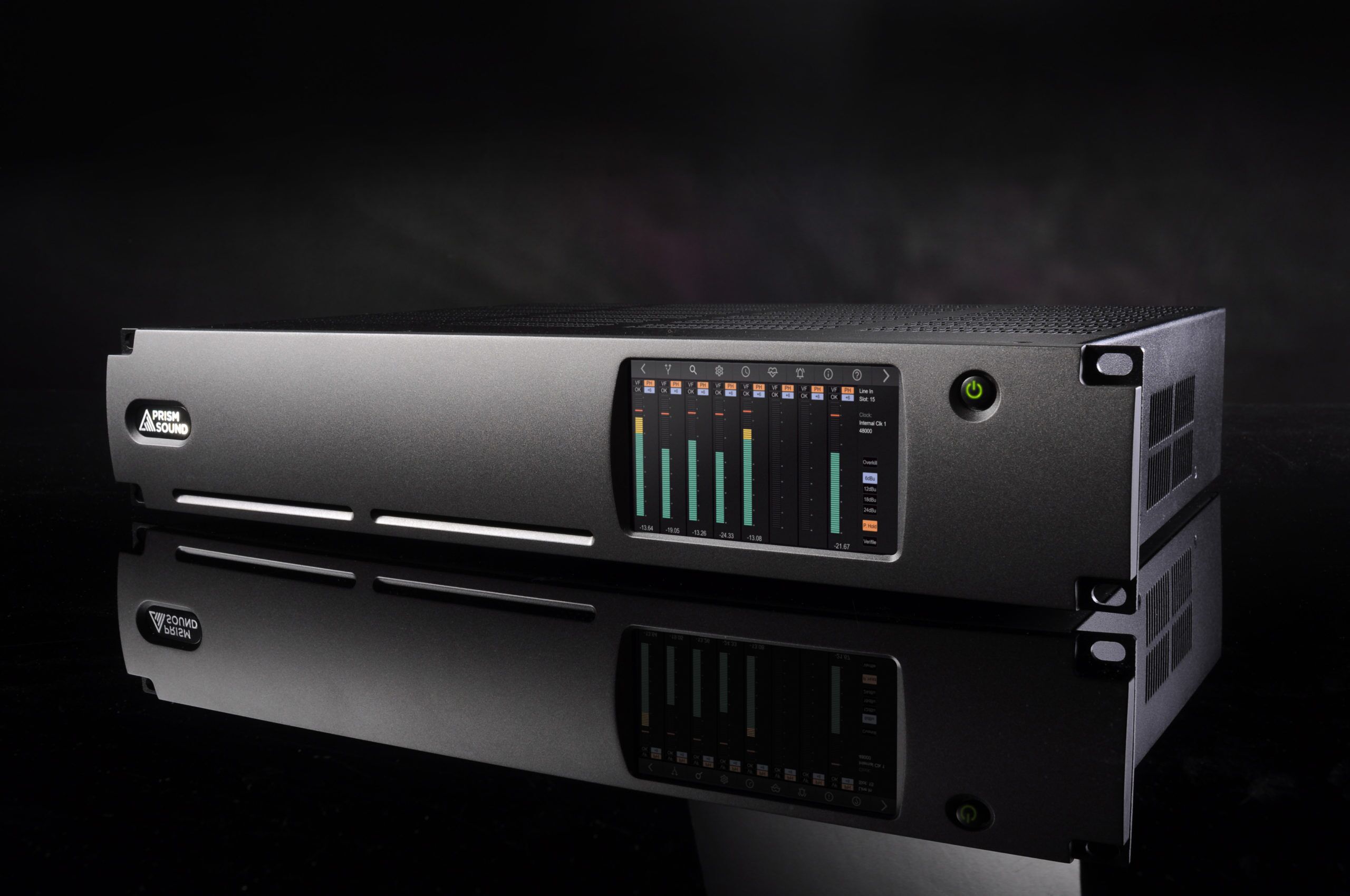

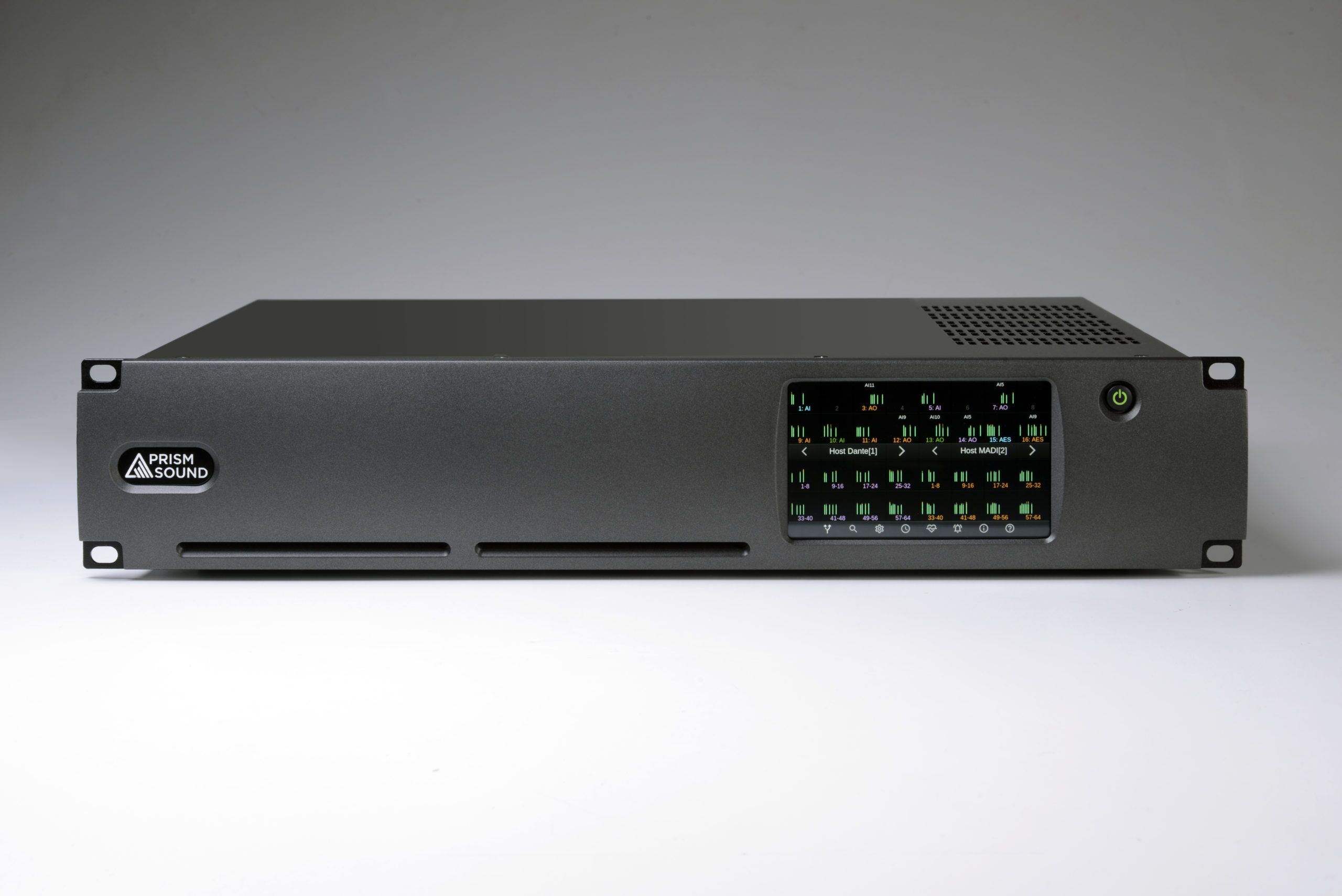

Control and metering via front-panel touch-screen or desktop remote.

Clock Domaines
Prism Sound CleverClox jitter-rejecting hybrid PLLs and low-jitter master clocks.

Host Interface
Modular host interfacing (computers, recorders, consoles, network etc) positions including Ads, Pro Tools HDX, Dante with more to follow.

I/O
Modular analogue and digital I/O up to 128 channels in 2U frame with 8 channel line/Out and Mic/Line cards.
