RME HDSPe AES

32-channel 24-bit/192KHZ I/O PCIe Card.

HDSPE-AES

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

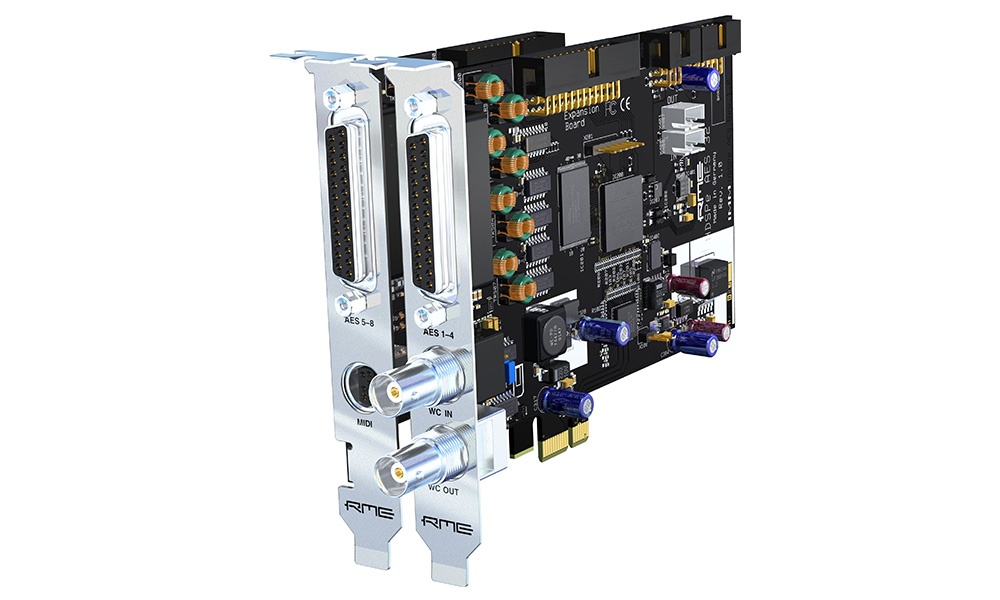

The RME HDSPe AES is a short-length PCI Express card with AES/EBU interfaces. It provides eight AES inputs (16 channels) and eight AES outputs (16 channels) at 192kHz sample rate. The card is also equipped with two MIDI I/O ports, word clock I/O, and can be used with the optional TCO module for synchronization to LTC and video.

The card’s main board contains word clock I/O and a 25-pin D-sub connector, providing four AES inputs and four AES outputs via a standard digital breakout cable (Tascam pinout). The word clock input is transformer isolated and operates on single, double and quad speed signals automatically. The expansion board adds audio channels 9-16 and a connector for a MIDI breakout cable with two MIDI I/Os (four 5-pin DIN connectors). It does not require a PCI slot.
