Dante to 4 Mono Channel Analogue Inputs & Outputs
Product lists can be submitted to HHB for a packaged quotation
This audio interface enables the user to convert up to four balanced analogue audio input signals and up to four analogue audio output signals into a single bi-directional Dante connection. AIO4 is ‘AES67 operation and Dante Domain Manager compliant’ and setup can be facilitated by using Audinate’s free to download Dante Controller (https://www.audinate.com/products/software/dante-controller).

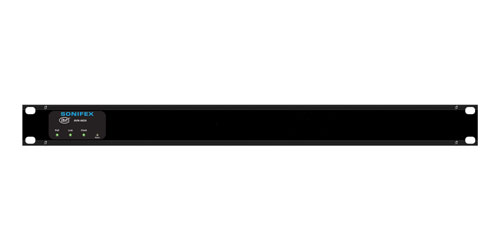

The front facing panel of the unit has three LEDs which illuminate when either Clock sync, Link, or PoE is detected. A recessed ‘Reset’ button allows the user to restart data communication if any errors occur. The rear facing panel houses all I/O connectivity including four balanced 3-pin Neutrik XLR inputs, four balanced 3-pin Neutrik XLR outputs, and a single RJ45 Ethernet Dante I/O connector.
Dimensions (LxDxH): 482.6 x 111 x 44mm.
