SONIFEX Redbox RB-ML2

Microphone and line level limiter.

RBML2

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

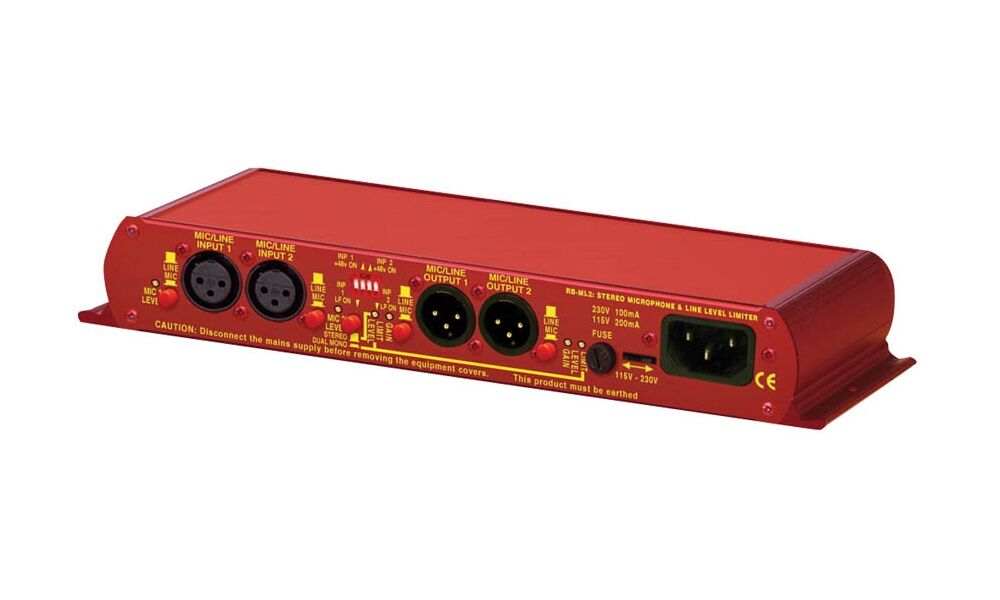

The RB-ML2 has two electronically balanced XLR-3 mic/line inputs. The mic preamps have independent pre-set gain controls, and DIP switches for a 125Hz high pass filter and 48V phantom power. The outputs of these amplifiers are passed through a VCA limiter circuit that can operate in either stereo or dual mono mode. The two XLR-3 electronically balanced outputs can be set to either line or mic level via a push-button. Each channel features input gain and threshold level control – a power LED flashes to indicate when the signal is being limited.

• Balanced XLR mic/line inputs

• Balanced XLR mic/line outputs

• Rear rack-mount kit available (RB-RK2)

• 1U rack-mount kit available (RB-RK1)
