STUDIO TECHNOLOGIES Model 236
Dante enabled Announcer’s Console
MODEL236
£1,490.00 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation

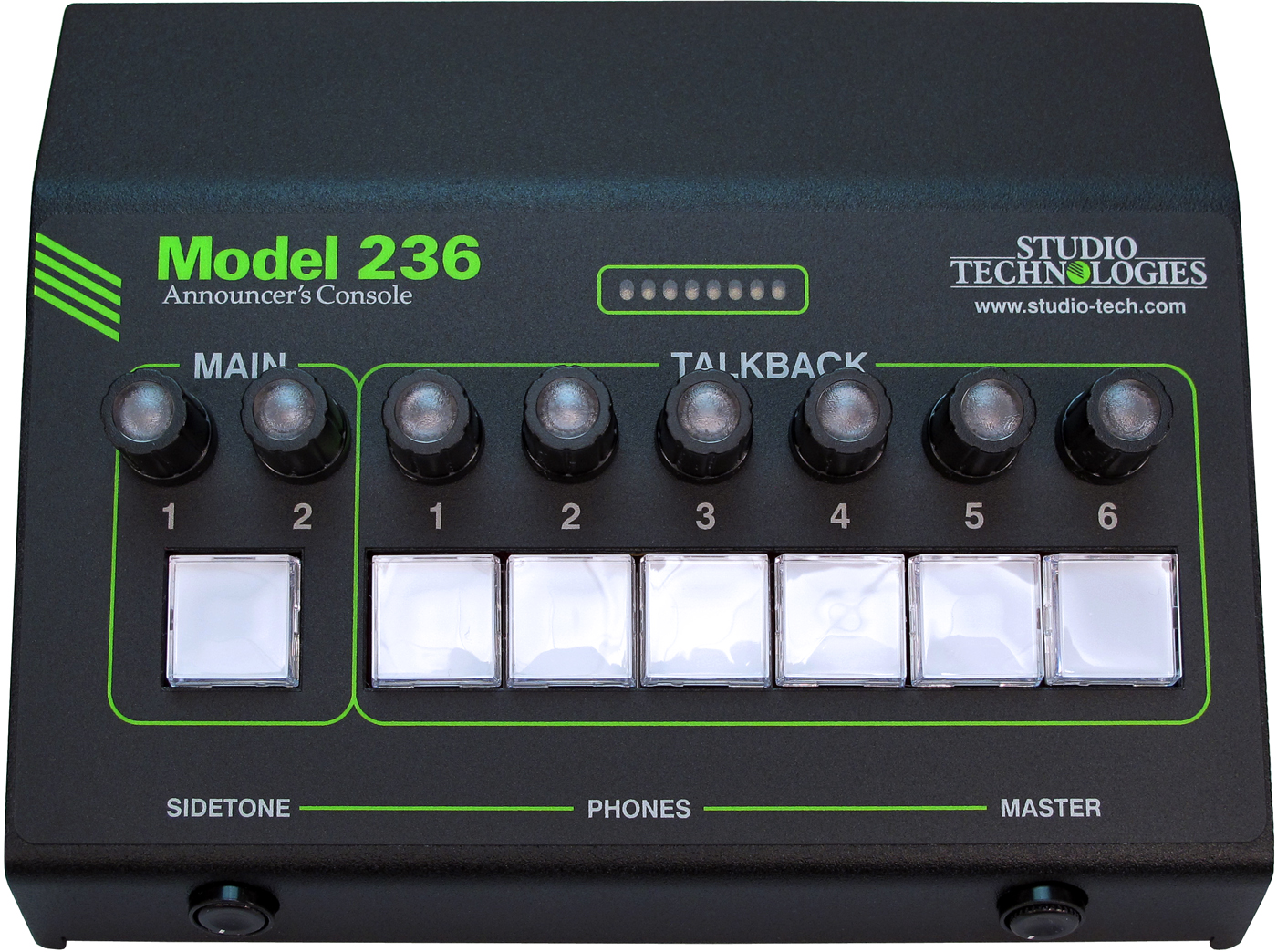

The Model 236 Announcer’s Console is designed for on-air and live-event use by announcers and commentators who will benefit from high-performance microphone and headphone audio resources. Supports Dante audio-over-Etherent media networking technology and includes an extensive set of features. The compact tabletop unit uses the STcontroller software application for configuration. Seven pushbutton switches allow the user to control seven audio output channels: one main and six talkback. Two gigabit (GbE) Ethernet interfaces allow redundant Dante operation. Powered using a Power-over-Ethernet (PoE) connection or an external source of 12 Vdc.
Key Features
- Dante audio-over-Ethernet technology
- Extraordinary audio performance
- One main, one aux, and six talkback Dante output channels
- Two main and six talkback Dante input channels
- Mic input with 10-65 dB adjustable gain and P48 phantom power
- Passive switched analog mic output
- 1/4″ headphone output with integrated sidetone

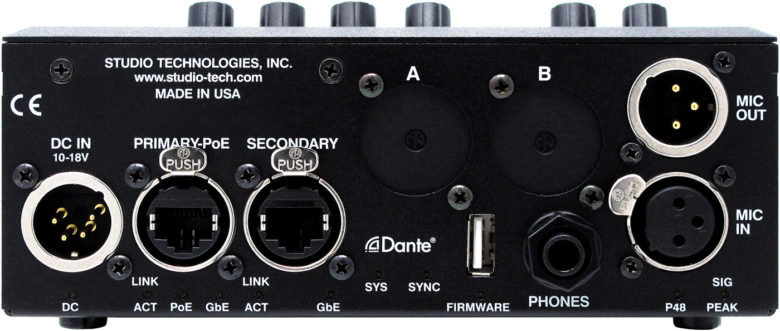

- Redundant Dante using two GigE interfaces
- PoE and 12 Vdc powering
- Ability to create IFB (talent cueing)
- Designed for REMI/At Home applications
- Rugged, compact enclosure
- Configured using STcontroller application
- AES67 and Dante Domain Manager support
(Model236)
