STUDIO TECHNOLOGIES Model 43D

Dante to IFB Interface

MODEL43D

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



The Model 43D IFB Interface provides broadcast-standard powered and non-powered analogue audio IFB outputs from audio signals that are being transported using the Dante audio-over-Ethernet media networking technology. IFB, also known as “interruptible foldback” or talent cueing, is a method commonly used for on-air talent and related personnel to receive one-way (listen-only) audio signals associated with live-event broadcasts. Especially important in sports and entertainment events, IFB plays a crucial role in virtually all broadcast applications that require people to stay “in the know.” Dante has found wide acceptance as an audio “backbone” due to its ease of use, high performance, strong interoperability, and wide adoption by a large number of equipment manufacturers. The Model 43D is a specialized “tool” that helps to extend Dante’s capabilities into the important but specialized world of broadcast and production IFB.

Dante audio-over-Ethernet technology is used to transport the four audio channels that are associated with two, 2-channel IFB outputs from their source to the Model 43D. Each of the Model 43D’s two powered IFB outputs supply operating power and two audio channels to groups of listen-only user devices. Two line-level analogue outputs are also provided for general-purpose use. The Model 43D is compatible with the latest broadcast and audio equipment that uses Dante technology. An Ethernet connection is all that’s required to make the Model 43D part of a sophisticated, networked audio system.

A Model 43D utilizes four digital audio input channels typically provided by Dante-enabled devices such as matrix intercom systems, DSP processors, broadcast routers, and audio consoles. The powered IFB outputs allow direct connection with listen-only user beltpacks such as the popular Model 32A from Studio Technologies. The line-level IFB outputs are provided for connection with a variety of devices that use analogue interfacing. Careful attention to circuit design and component selection ensures that excellent audio quality is maintained. Audio level meters provide confirmation of system performance during setup and operation. The Model 43D can be powered by Power-over-Ethernet (PoE) or an external source of 12 volts DC.

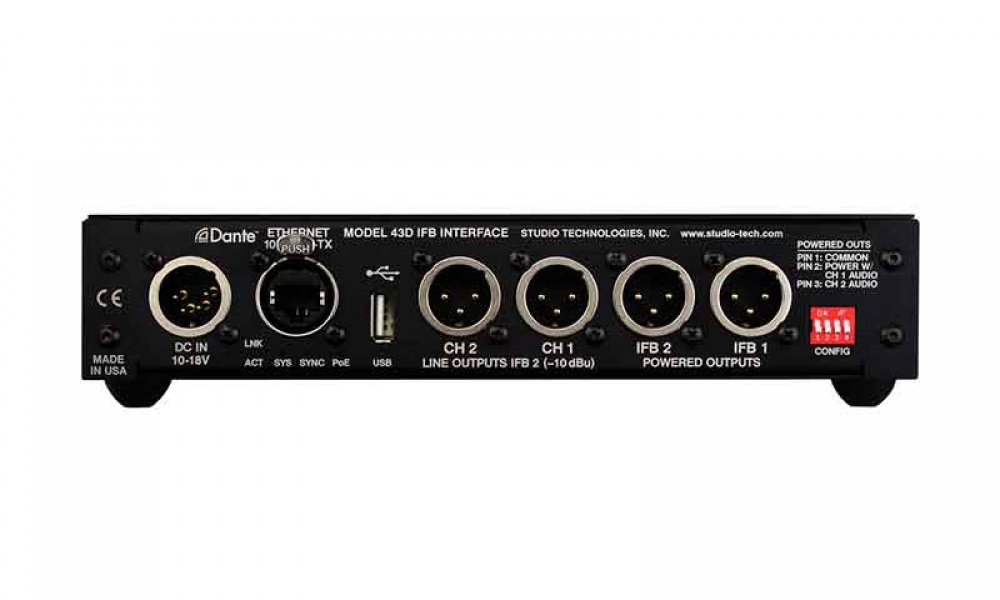

Standard connectors are used for the powered IFB outputs, line-level IFB outputs, Ethernet, and DC power interconnections. The Model 43D’s enclosure has a “1/2-rack” 1U form factor and weighs less than two pounds, making it well suited for use in portable applications. Alternately, using one of the optional rack-mount front panels, one or two Model 43D units can be mounted in a single space (1U) of a standard 19-inch rack enclosure.

Key Features
 • Dante audio-over-Ethernet technology
 • Powered 2-channel IFB outputs
 • Line-level IFB outputs
 • Excellent audio quality
 • PoE and 12 Vdc powering
 • Table-top, portable, or optional rack-mount use

Media

Datasheet (324.68 KB)
Manual (680.84 KB)
