WOHLER iAM-12G-SDI

Dolby Atmos Video & Audio Monitoring

iAM-12G-SDI

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

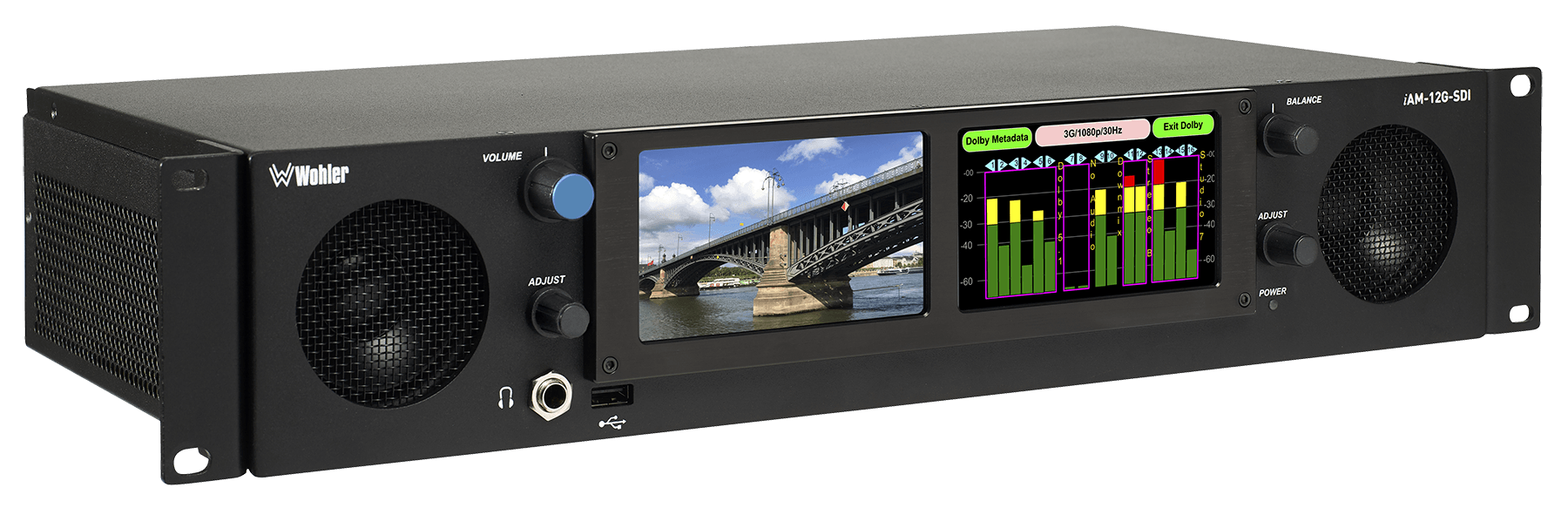

Wohler Technologies is extending its ground breaking iAM Series of products with a new multi-channel audio and 12G video monitor that accepts 2 x 12G/3G/HD/SD-SDI signals over BNC.  4 SFP cages allow for a variety of additional monitoring options, including 2110, 2022-6, as well as additional SDI inputs in a variety of combinations listed in the table below.  Our Dolby® ATMOS option allows decoding of Dolby® Atmos content, along with the familiar Dolby® D, Dolby® D+, and Dolby® E content.

Flexible. Adaptable. Future Proof.

iAM-12G-SDI is designed to be easy to operate, yet powerful enough to provide high quality, accessible and easy to use monitoring of the newest signals (12G, 2110, 2022-6) within a compact form factor. Incorporating the latest technology,

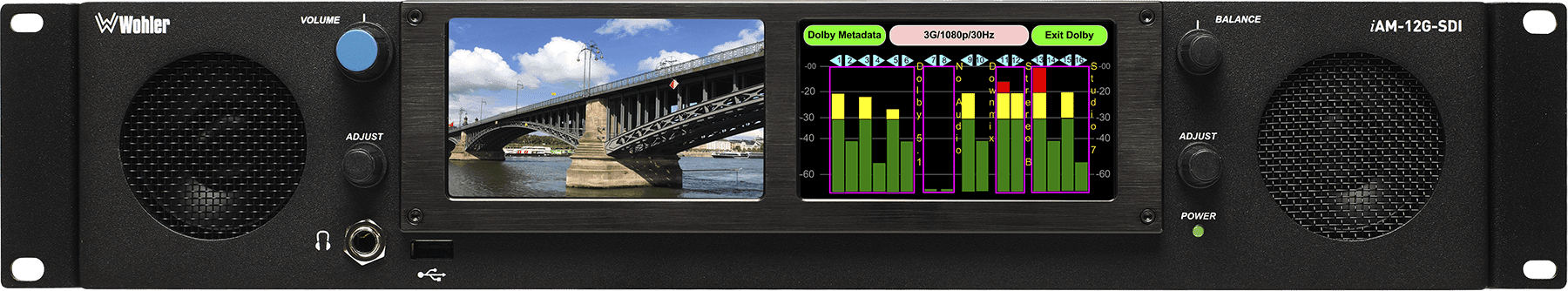

Physical and touch screen front panel controls duplicate previous mature design philosophies of shipping iAM Series units. With both front mounting speakers and sub-woofers, the iAM-12G-SDI provides the powerful sound output and audio reproduction that Wohler is well known for.

A front mounting USB port is available for simple software updates. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with authentication that protects critical configurations from unauthorized alteration.

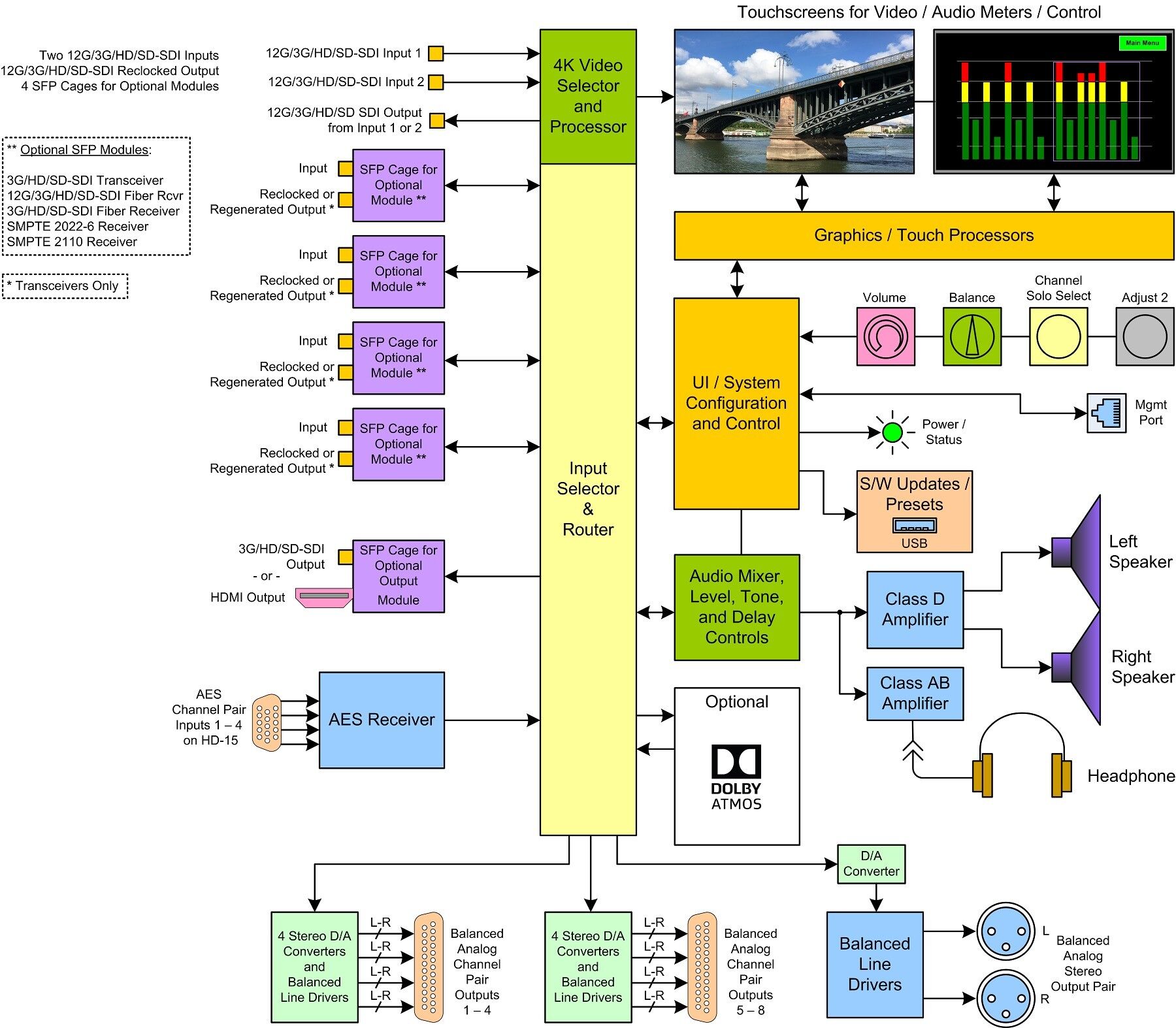

FEATURES & BENEFITS:

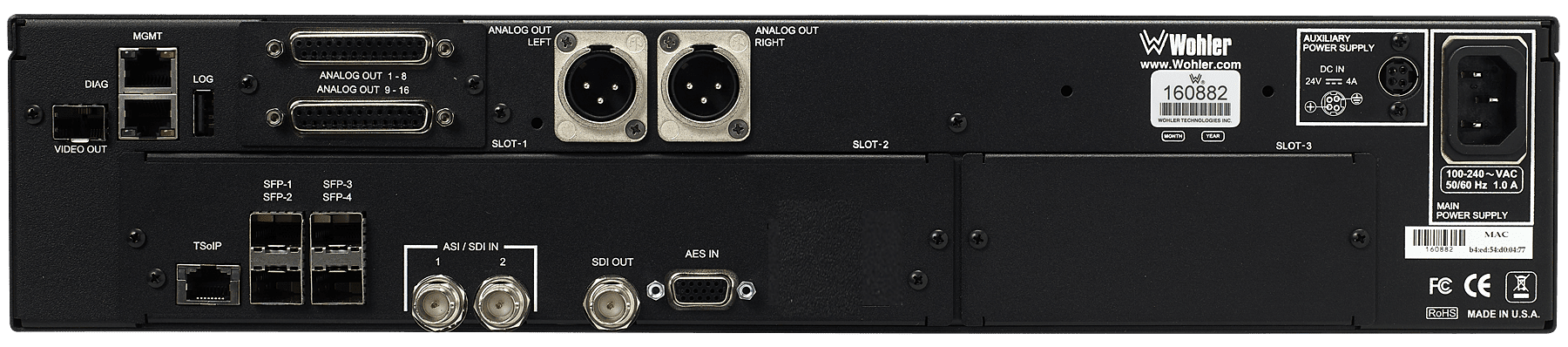

  • 2 x 12G (4K) SDI inputs on BNC that also monitor 3G/HD/SD-SDI signals as well

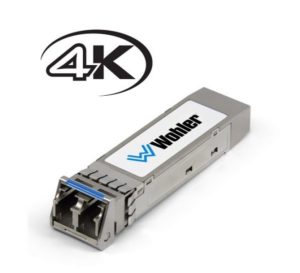

  • 4 x SFP cages allowing a range of optional connectors and signal processing options fully listed in the table below
  • Optional Dolby® Atmos that also decodes Dolby D, D+ and E streams for playback, metering and metadata.
  • Touch screen front panel for easy, intuitive control
  • Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources
  • Built-in speakers, headphone jack, USB and Ethernet ports
  • Store and retrieve presets via USB or remote software control
  • Software upgradeable via USB or network, upgrade multiple units at once
  • APIs for remote control.

Audio Specifications

Frequency Response 60 Hz – 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
Hum and Noise Better than -75 dB below full output
Meter Dynamics Simultaneous VU & PPM
Meter Scale Simultaneous VU & PPM
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2 ft
Power Output RMS Each Side: 15W Continuous/30W Peak

Video Specifications

Diagonal Display Size4.3″ (109 mm)

Display Resolution (HxV)480H x 272V

Display TypeLCD Touchscreen

Number of screens1 Video; 1 Graphics

Physical Specifications

Rack Height 2RU
Dimension Width 19.0″ (483mm)
Dimension Height 3.5″ (89mm)
Dimension Depth 9.0″ (229mm)
Speakers Yes
Net Weight 8.0 lbs (3.6 kg)
Shipping Weight 10.0 lbs (4.5 kg)
Power Consumption 40 Watts typical
Power Supply External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Available APIs Get Available Presets; Get Preset Information; Get Active Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select

Optional Additions

Ask an HHB Sales representative about the Dolby® ATMOS option.

Dolby® ATMOS option allows decoding of Dolby D, Dolby D+, Dolby E and Dolby Atmos for the IAM-12G-SDI

Dolby Atmos creates an amazing experience over speakers and over headphones, with breathtaking, moving audio that flows above and around you. You’ll feel like you’re inside the action as sound comes alive with richness and depth, and seems to move in three-dimensional space. Immersive and emotive, Dolby Atmos is sound you can feel — sound that creates a powerfully moving entertainment experience.  Wohler’s Dolby Atmos option allows broadcasters to confidence monitor the Dolby Atmos signal on Wohler speakers and headphone output, view meters, access Wohler’s proprietary Dolby Zoom functionality, review related metadata, and route the audio externally to SDI or analog outputs on the rear panel.

OPT-MADI

Enables decoding and monitoring of 1 x MADI64 input via BNC with 1 x looped output. Software activation key.

OPT-DANTE

Enables decoding and monitoring of Danteª or AES67 Input streams. Hardware card with software activation key.

OPT-RAVENNA

Enables decoding and monitoring of Ravennaª or AES67 Input streams. Hardware card with software activation key.

OPT-DOLBY-12G

Enables monitoring of Dolby® D, DD+, E & ED2 streams.

OPT-DOLBY-ATMOS

Enable monitoring of Dolby® Atmos, D, DD+, E & ED2 streams
