YELLOWTEC Litt 50 Wall Mount Base Controller - YT9101

Including Installation Tool

YT9101

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



litt. Perception is everything.

Experience a whole new kind of signalling. With forward thinking options. Developed as an innovative, high-tech LED signalling device, litt brings convenience and flexibility. Programmable light and flash patterns, ultra-bright CleanVision® LED technology, sleek design and an easy assembly system coalesce to create a new class of lighting design. Unmistakably different.

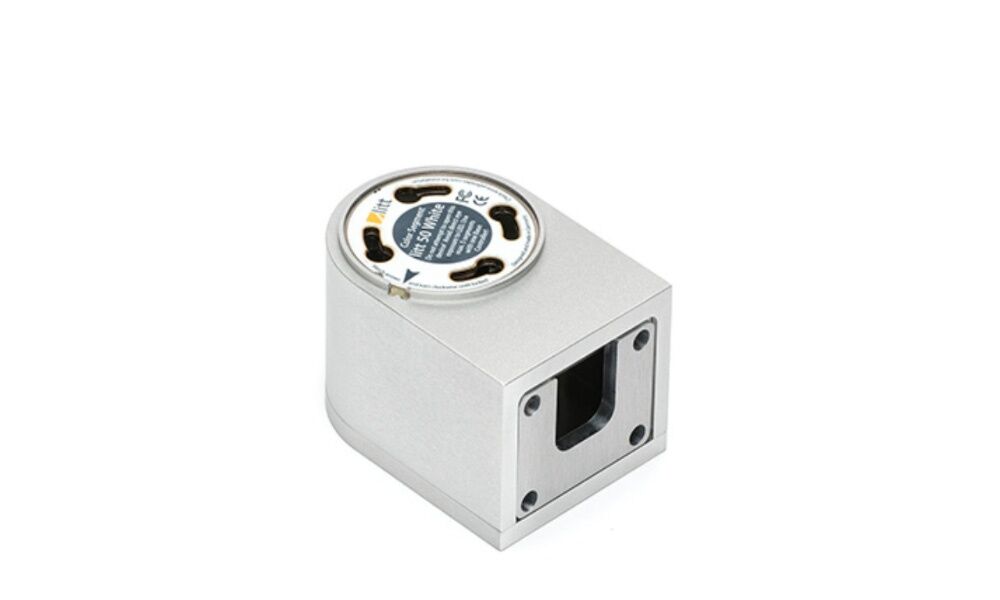

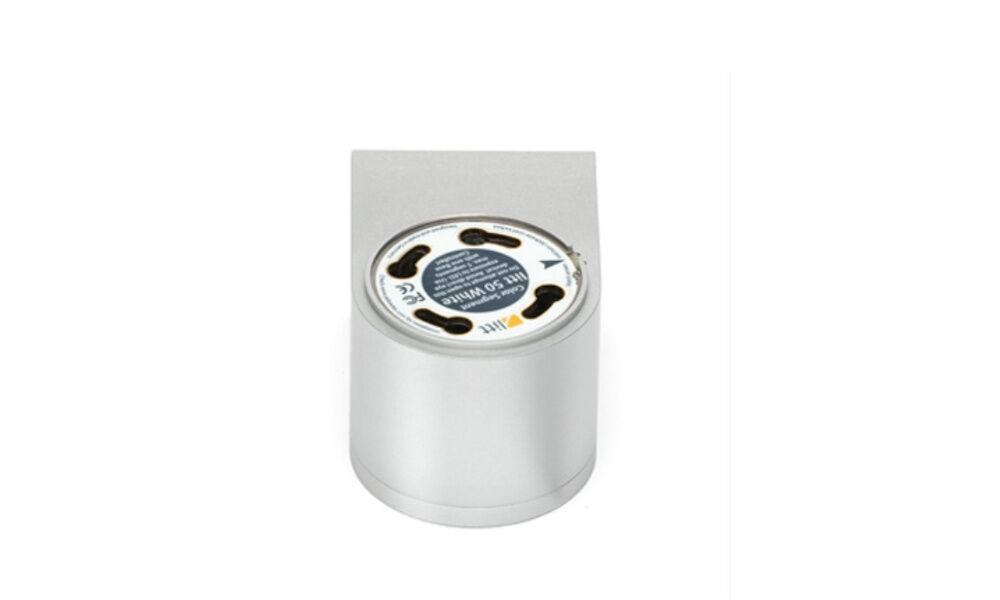

Choose the litt 50 Base Controller Wall Mount to affix the litt Signalling Device to walls and other vertical surfaces of any kind. Just like the litt Base Controller for desk or pole mounting, the aluminium made Base Controller Wall Mount is capable of up to five colour segments and a sound segment to be placed on top. Mix segments of different colours and sizes according to your personal preferences.

The Base Controller Wall Mounts’s connection panel consists of an 8-pin terminal block with a handy Phoenix Low-Insertion Force Connector, and a mini-USB jack. All the connecting parts are located inside the controller and segments, making the entire device come in an extraordinarily clean and elegant look. The Base Controller Wall Mount is equipped with automatic colour segment recognition, individual control inputs for each colour (2.4-24VDC) and reverse polarity protection.

Key Features

  • Fundamental element of the litt Signalling Device
  • Control centre of signalling
  • Bus control with automatic segment recognition
  • Individual control inputs for each colour (2,4-24W)
  • 8-pin terminal block connection panel
  • Holds up to 5 differently programmed litt Colour Segments and a Sound Segment on top
  • USB port for easy configuration of the individual programmable litt Segments
  • Configuration via litt Lighthouse® Software
  • All connecting parts are located inside the controller
  • Extraordinarily clean and elegant anodized aluminium look
  • To mount litt to walls and other vertical surfaces
  • The included litt Mounting Kit covers all necessary tools



Media

Brochure (1.50 MB)
litt product range (314.82 KB)
Connection diagram (20.12 KB)
