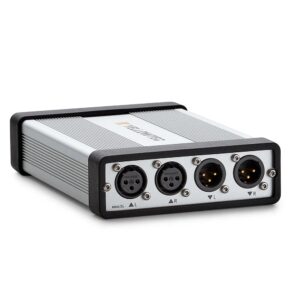

YELLOWTEC PUC2 Lite - Audio Interface - YT4240

Budget-friendly but high-class interfacing solution

YT4240

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Read the Sound on Sound review of PUC 2 here.

PUC2 Lite serves as a budget-friendly but high-class interfacing solution for application fields that don’t require analog connectivity. Providing the same feature set as our PUC2 standard version, it serves as a purely digital platform.

Equipped with an AES3 interface common to all PUC2 versions, PUC2 Lite delivers highest available audio standards up to 192 kHz sample rate at 24-bit word-lengths with a sensational dynamic range of 114dB. Its plug’n’play concept allows fast handling plus the optional use of our ASIO driver for advanced operators. It combines simple seamless setup with a clever modular design, providing a flexible ease-of-use. As a unique feature, Zero Latency Monitoring allows you to monitor your recording signal in real-time, without any delay.



KEY FEATURES:

  • Power: via Dual USB: < 1000 mA
  • Clocking: jitter: < 15mUI Peak; frequency accuracy: +/- 10ppm
  • Input selection: AES3 only
  • Digital input: format: AES3 + SPF/DIF; connectors: XLR; SUB-D module connections: SUB-D 25 pin; sampling rate: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz, 192 kHz; bit depth: 24Bit
  • Digital output: format: AES3; connectors: XLR; SUB-D module connections: SUB-D 25 pin; sampling rate: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz, 192 kHz; bit depth: 24Bit
  • Analog input: –
  • Analog output: –
  • USB Connector: USB 2.0 Type B

DIMENSIONS:

  • Length: 185mm
  • Width: 127mm
  • Height: 41,5mm
  • Weight: 600g

CONTENTS:

  • YT4240 PUC2 Lite
  • PUC2 software utilities
  • USB cable
