YELLOWTEC PUC2 Line

Analogue and AES3 USB Audio Interface

YT4211

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



PUC2 Line is Yellowtec’s high definition USB audio interface with professional digital and analogue audio input and output formats and connectors delivering highest available audio standards up to 192 kHz sample rate at 24-bit word-lengths with a sensational dynamic range of 114dB. The plug’n’play concept allows fast handling plus the optional use of our ASIO driver for advanced operators.

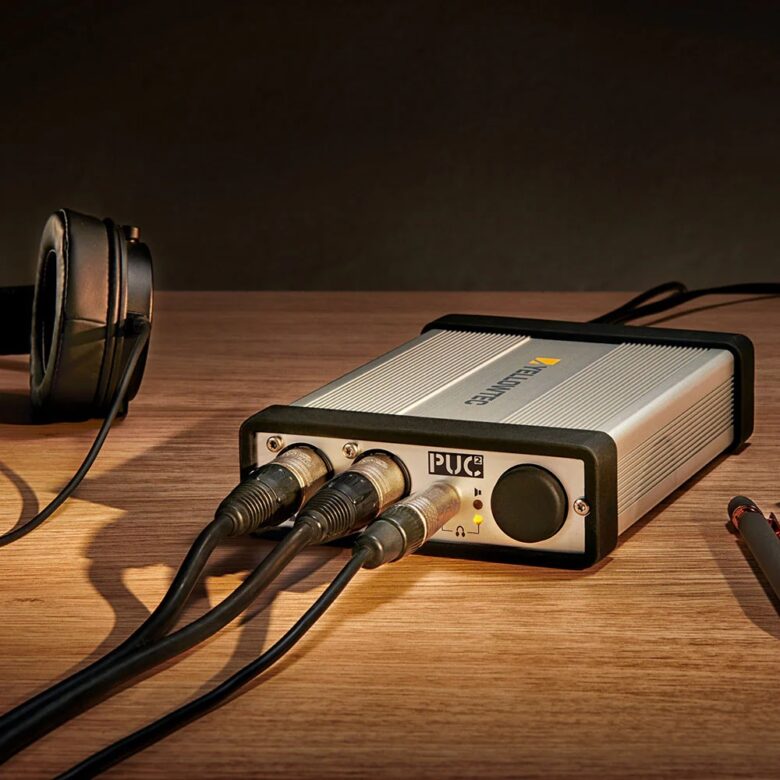

As one of PUC2’s unique features, Zero Latency Monitoring allows you to monitor your recording signal in real-time, without any delay. Choose between listening to the input signal, or the return path arriving via USB. For further monitoring convenience, an AUX output lets you connect a pair of headphones for a quick and easy audio signal check.

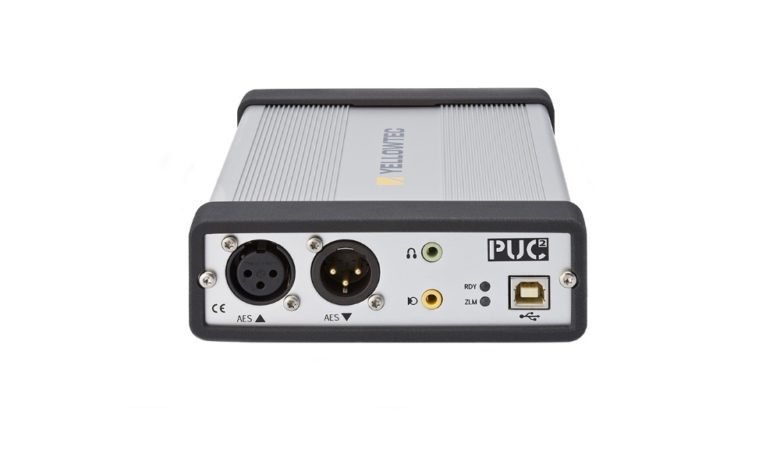

The computer connection panel features AES-3 inputs and outputs on XLRs, along with an USB (B-type) port and a yellow-ringed 3.5mm socket, which is used to configure zero-latency monitoring modes. Since PUC is USB-powered, there’s no bulky power supply and fewer cables to connect – which means exceptional performance without workspace clutter. PUC’s precision aluminum unibody allows for sturdiness as it serves as a conductor of heat acting as a heat sink dissipating heat to the environment.

TECH SPECS:

  • Power: via Dual USB: < 1000 mA
  • Clocking: jitter: < 15mUI Peak; frequency accuracy: +/- 10ppm
  • Input selection: automatic with AES detection
  • Digital input: format: AES3 + SPF/DIF; connectors: XLR; SUB-D module connections: SUB-D 25 pin; sampling rate: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz, 192 kHz; bit depth: 24Bit
  • Digital output: format: AES3; connectors: XLR; SUB-D module connections: SUB-D 25 pin; sampling rate: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz, 192 kHz; bit depth: 24Bit

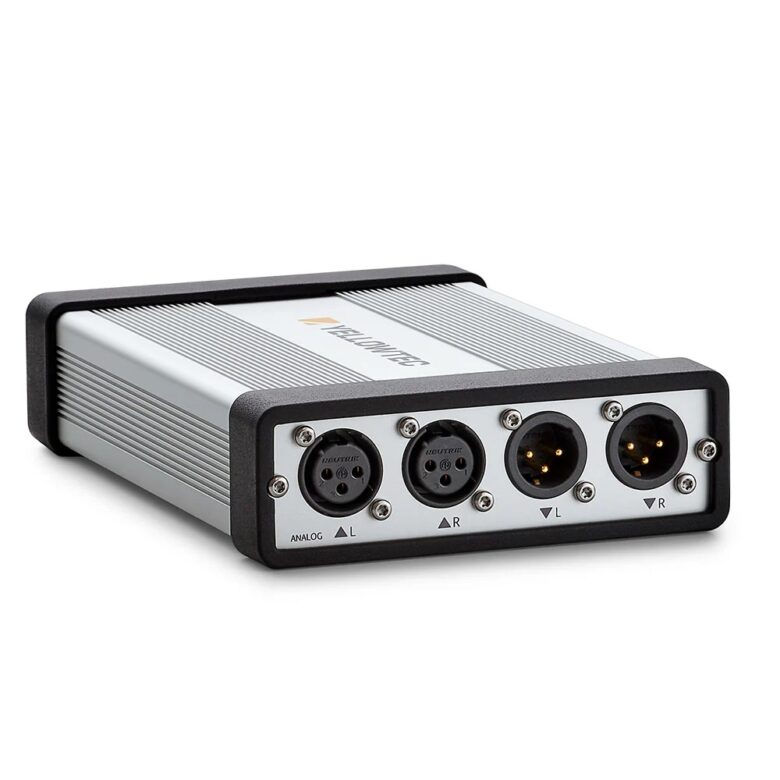

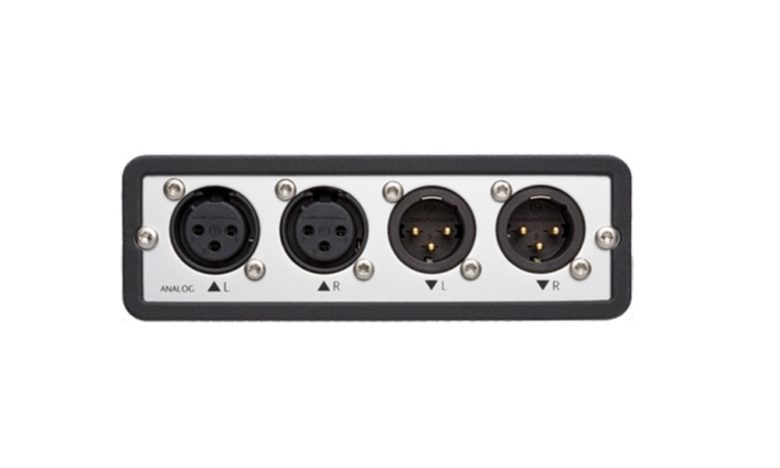

  • Analogue input (electronically balanced):
  • input level: +4dBu/max +18dBu @Full Scale
  • impedance: 18kOhm typ.
  • Analogue output:
  • output level: +4dBu/max +18dBu @Full Scale;
  • impedance: 40 Ohm typ.
  • USB Connector: USB 2.0 Type B
  • Phantom power
  • Headphone output: 3,5mm jack: fixed volume setting; impedance: < 16 Ohm
  • Microphone input
  • AD/DA Converter: dynamic: 108dB; THD+N ADC: -107dB THD+N; THD+N DAC: -103dB THD+N; sampling rate DAC: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz, 192 kHz; bit depth: 24Bit

FORM FACTOR:

  • Length: 185mm
  • Width: 127mm
  • Height: 41.5 mm
  • Weight: 600g

CONTENT OF DELIVERY:

  • YT4211 PUC2 Line (International Levels)
  • PUC2 software utilities
  • USB cable

Read the Sound on Sound review of PUC 2 here.
