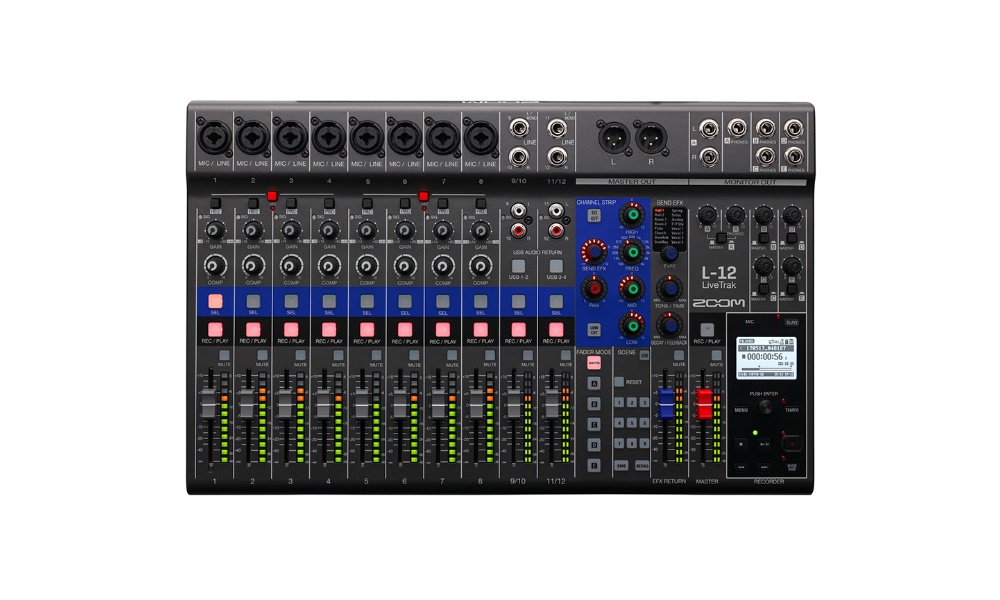

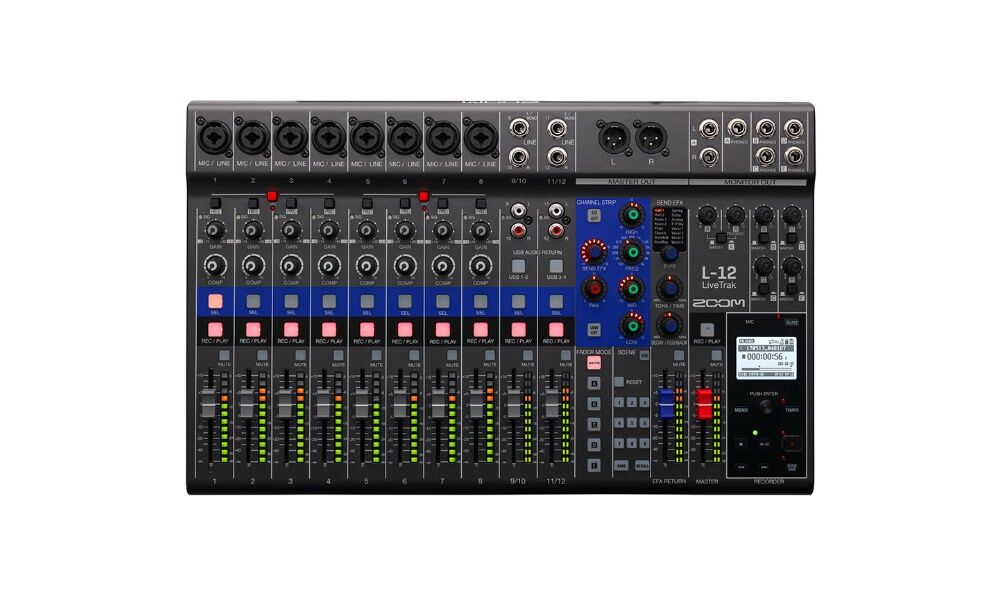

ZOOM Livetrak L-12

Mix, Record, Monitor, Playback, and Remix

L12

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Our Best Mic Preamps Yet
At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we’ve ever made. Just wait until you hear how incredible it sounds.

High-Definition Sample Rates
The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.

Convenient Auto Recording
Record automatically by adjusting the L-12’s customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.

Versatile Operation Modes
The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.

With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.

  • 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
  • 14-track simultaneous recording, 12-track playback
  • 14-in/4-out USB audio interface connectivity
  • 5 powered headphone outputs, each with a customizable and saveable mix
  • Add backing/click tracks from your computer to your live mix and recording
  • RCA and TS line inputs
  • 48V phantom power (channels 1-4 and 5-8)
  • Hi-Z connectivity (channels 1 and 2)
  • 26 dB pad (channels 3-8)
  • Built-in compression control (Channels 1-8)
  • Digital level meters -48 dB to -0 dB
  • Master mute button
  • Low-cut control
  • Stereo panning
  • Master and Monitor Outputs A-E
  • Scene saving function, up to 9 scenes saved at a time
  • 16 built-in delay and reverb effects with adjustable parameters
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • SD card input
  • Built-in metronome
  • Automatic recording starting/stopping capability
  • Project protection
  • Import/export projects with USB 2.0 host port
  • Latency adjustment for A-to-D conversion
  • Compatible functions for ZOOM FS01 footswitch
