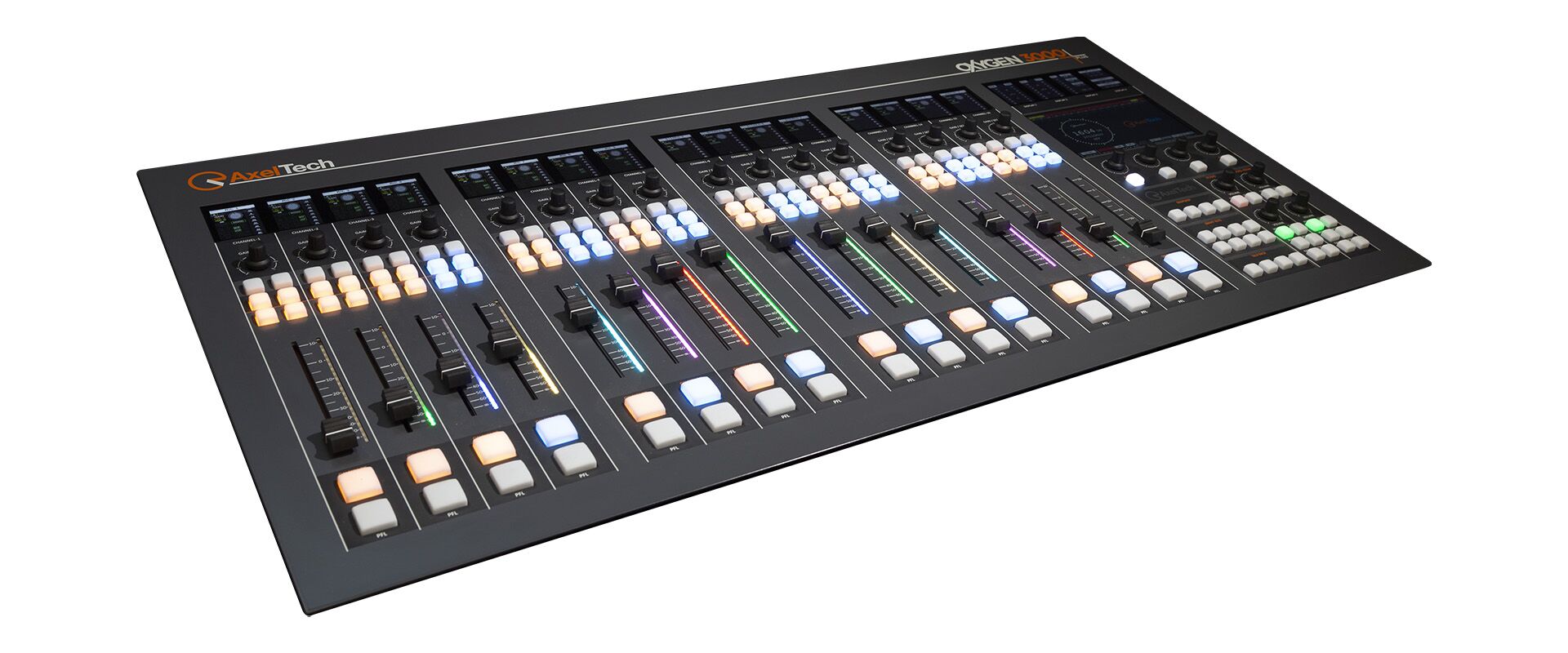

Oxygen 3000 Plus: much more than a Digital Broadcast Mixer!

A full range of powerful features for Radio On-Air and Production available in 3 different formats and flexible configurations: 8, 12 and 16 faders with 1 or 2 Audio I/O Boards and 16+16 or 32×32 Dante I/O.

Oxygen 3000 Plus is the best-equipped console of its category: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante™ AoIP, Telco, Presenter Talk Box, Streaming In/Out.

The DSP based processing guarantees high-end quality audio and of course you will find the easiness of use that marks all the Axel Tech’s products.

Oxygen Remoter Software, which enables up to 8 additional virtual faders for a full I/O control is available on Oxygen 3000 Plus as it is, for free, in any Oxygen Digital Console model.

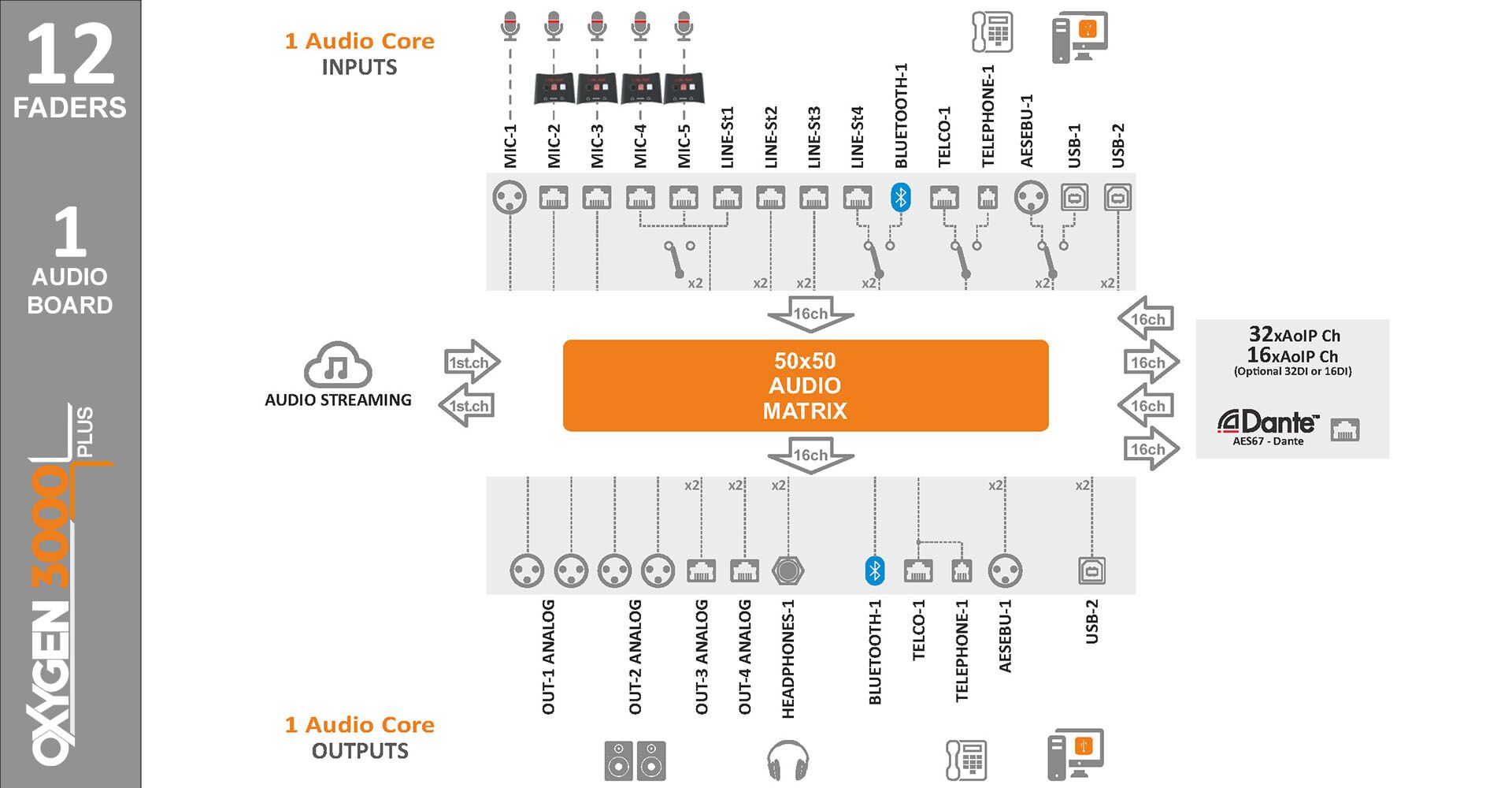

Each audio I/O board has

• 5 microphone inputs with Automix
• 2 stereo analogue inputs, up to 4 Stereo analogue inputs using other input sources
• 4 stereo analogue outputs
• 1 built-in telephone hybrid or 1 Telco with GPIO
• Up to 4 Telco using other input sources
• 1 Bluetooth audio interface or 1 stereo analogue input
• 1 digital In (AES/EBU) or 1 USB Input (play)
• 1 digital Out (AES/EBU)
• Up to 2 USB audio Input (play)
• 1 USB audio Output (rec)
• 1 Streaming In + 1 Streaming Out

One of two audio boards can be installed in an Oxygen 12 or 16 fader frame.

Additionally a Dante card with 16 or 32 ch I/O can be installed.

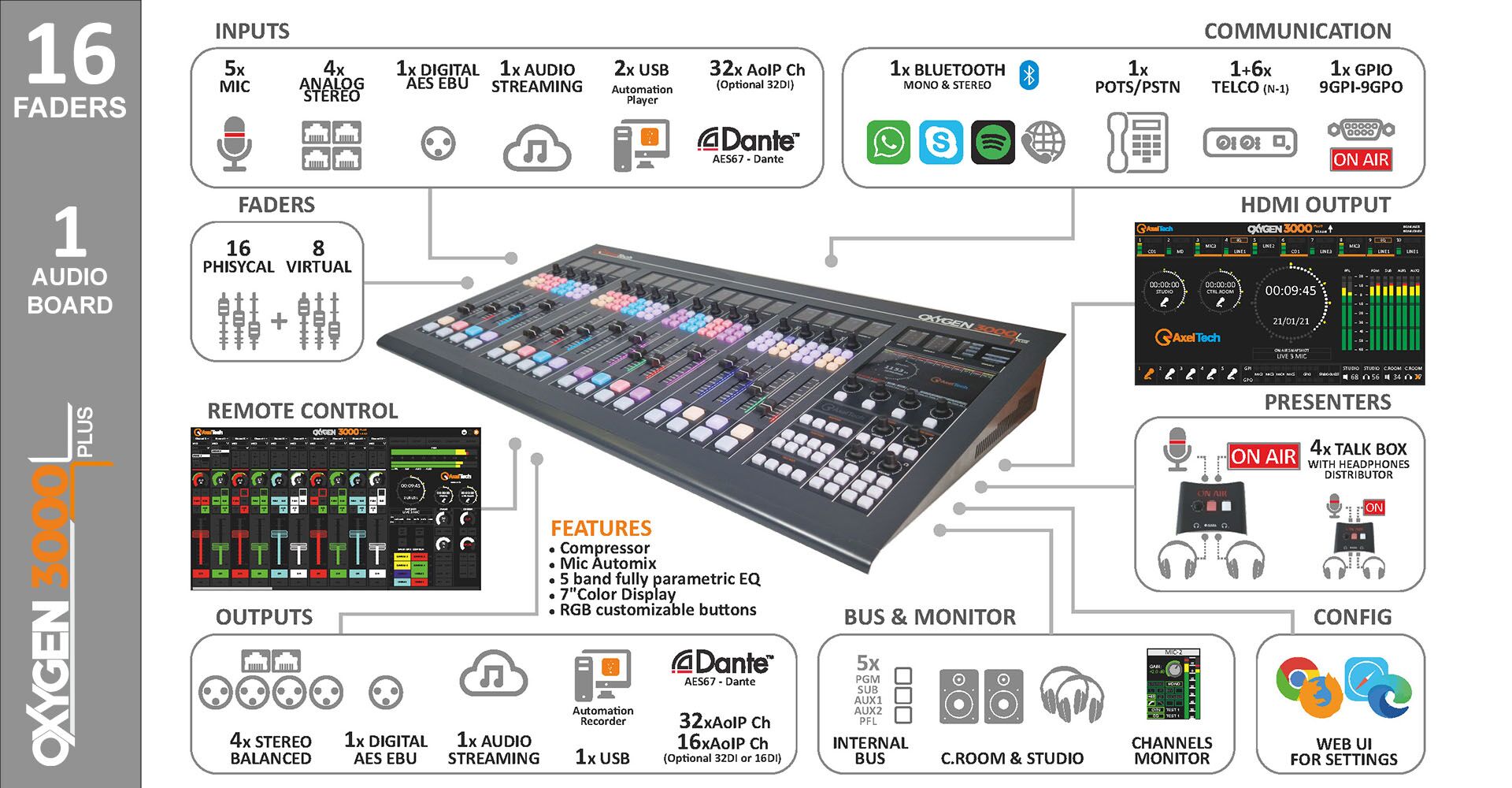

General features

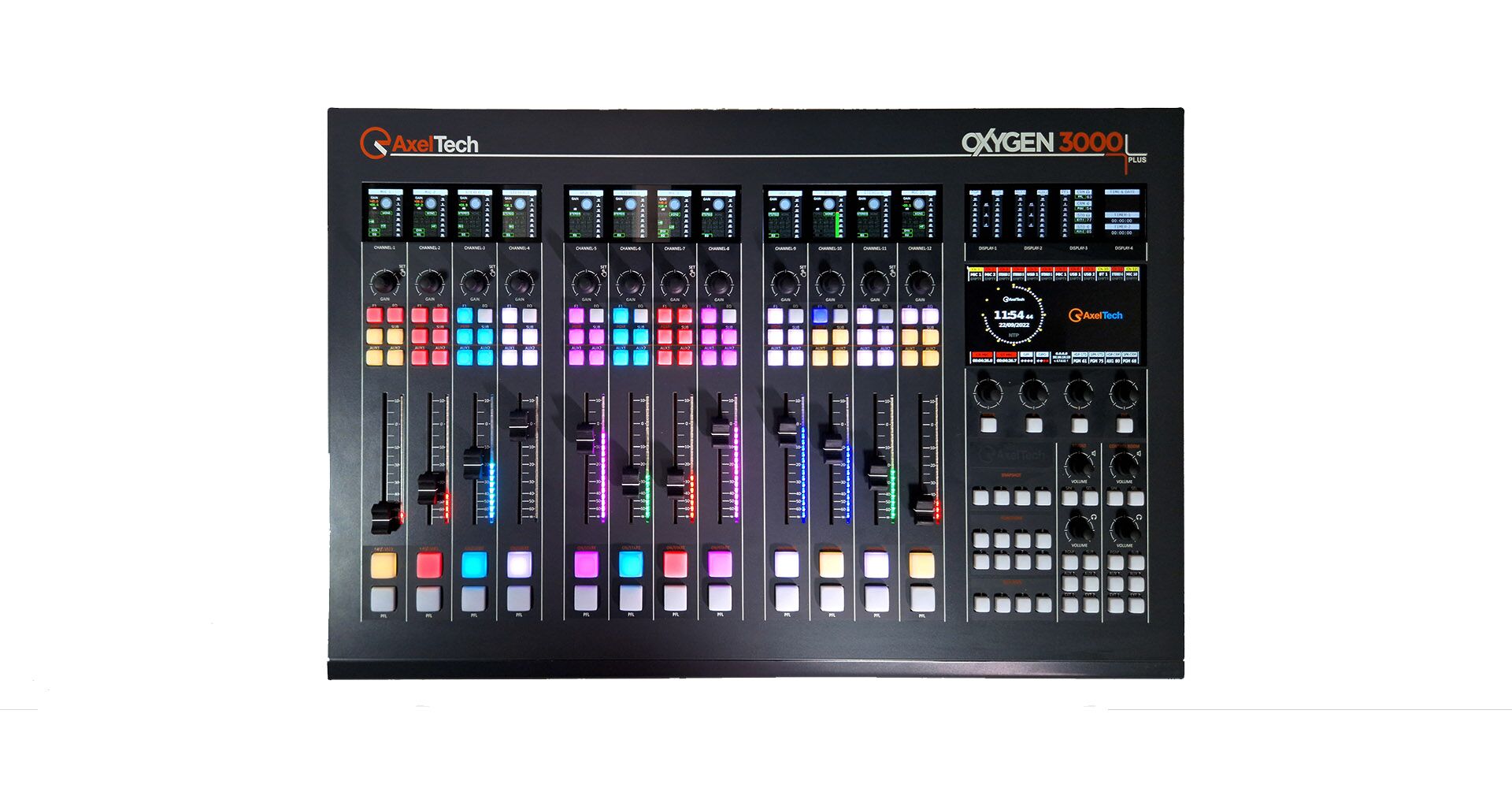

• Fully Digital Broadcast Console for Radio Broadcasting with 8, 12 or 16 faders
• Knob with A/B Fast source switch or source selection for each fader
• 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
• Near 0 latency (< 0,7 ms I/O)
• Digital Signals Routing 50×50 matrix with direct Input to Output
• Assignable Stereo N-1 on any output
• Complete Remote Control by means of an application replicating the surface
• Remote configuration and maintenance via Web Interface
• User-definable Presets & Snapshots
• 5 bands fully parametric Equalizer on each input
• Dynamic Processor with expander and compressor section on each microphone input
• Advanced and configurable Monitor Facilities for Control Room and Studio
• Customizable RGB colored buttons
• 7” TFT IPS Graphic Colour Display for console configuration
• Four 2,2” TFT IPS displays for the output levels monitoring
• 2,2” TFT IPS displays on top of each fader displaying channel status, levels and source name
• HDMI Out for console status display
• 2 Timers (Ctrl-Room and Studio microphones on HDMI Monitor)
• START/ON Buttons for each fader
• 4 recall Snapshot buttons
• 4 direct Talkback buttons
• RGB led Bar for each fader
• Studio & Control Room Monitor Section
• 8 customizable Smartkey Buttons
• 2 customizable Function Keys for each fader
• TalkBox for guest and presenter (optional)
• Redundant PSU (optional)

Versions

• Oxygen 3000 Plus 8 Fader 1 Audio I/O Board
• Oxygen 3000 Plus 8 Fader 1 Audio I/O Board Dante 16
• Oxygen 3000 Plus 8 Fader 1 Audio I/O Board Dante 32
• Oxygen 3000 Plus 12 Fader 1 Audio I/O Board
• Oxygen 3000 Plus 12 Fader 1 Audio I/O Board Dante 16
• Oxygen 3000 Plus 12 Fader 1 Audio I/O Board Dante 32
• Oxygen 3000 Plus 12 Fader 2 Audio I/O Board
• Oxygen 3000 Plus 12 Fader 2 Audio I/O Board Dante 16
• Oxygen 3000 Plus 16 Fader 1 Audio I/O Board Dante 32
• Oxygen 3000 Plus 16 Fader 2 Audio I/O Board
• Oxygen 3000 Plus 16 Fader 2 Audio I/O Board Dante 16

Options

• Redundant power supply
• Talk Box
• Dante™ I/O board

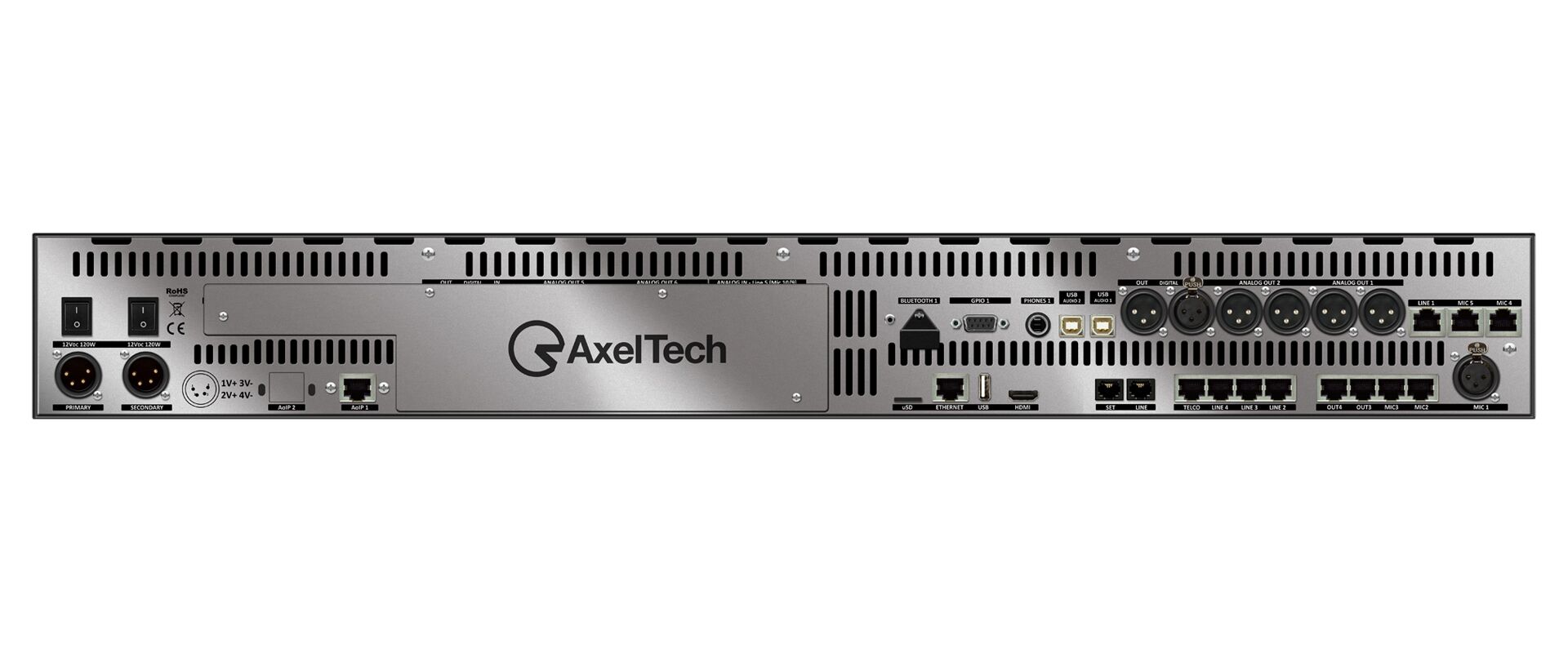

• RJ45 adapters for:
  • Mic
  • Line In
  • Line Out
  • Telco
  • GPIO
