Mux22-IVT/IVT

£0.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List

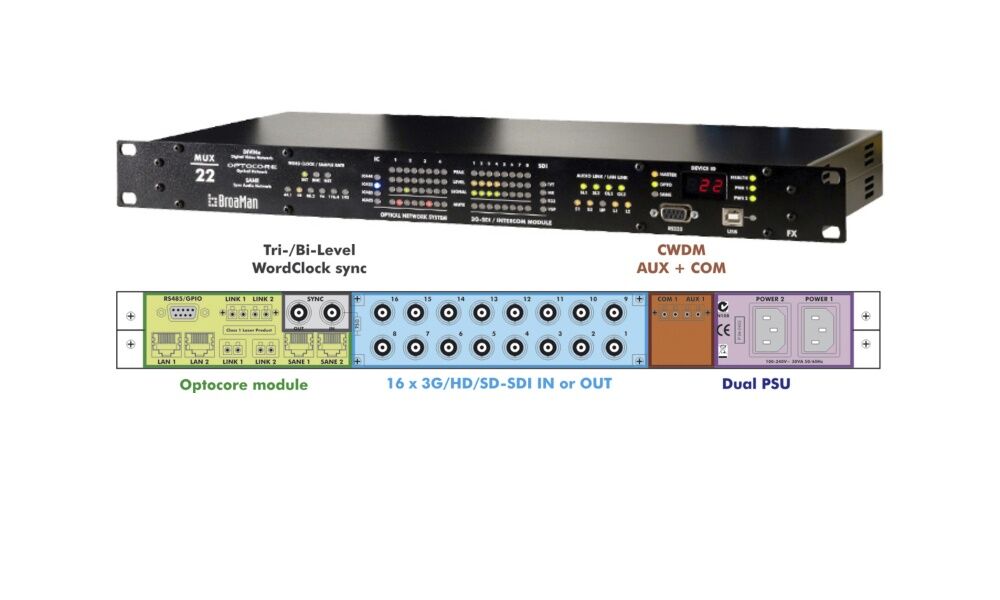

Mux22-IVT/IVT is a device, which combines different formats of video and data in a single duplex fibre cable. The number of video inputs and outputs can be specified when ordering, by selecting dual input or dual output modules. Every single channel and transceiver in the device can be controlled and monitored in real time remotely using Optocore Control application.

The device is fully compatible with all Optocore products, which makes it very flexible. It is very easy to add analog or digital audio to the Mux22 by extending it with the Optocore devices. Still everything is transported via the same single duplex fibre cable.

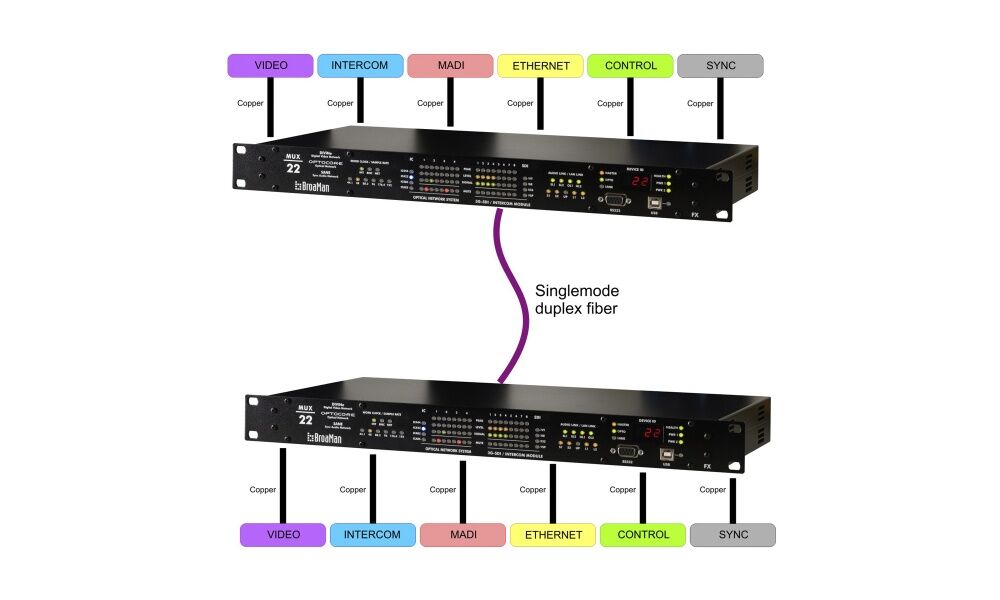

Mux22 can be used as a point-to-point pair to transport multiple signals between two locations. Furthermore it can be used as a stagebox to Route66 Video Router – in that case it becomes a remote I/O device for the star-based larger system.

KEY FACTS:

16 x 3G-SDI reclocked video channels
Video available in different I/O combinations
2 x fibre SFP ports for redundant Optocore ring
2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
4 x RS485/422 or 4 x GPIO
2 x LAN
V-Sync I/O – software selectable Tri-Level, Black Burst or WordClock sync
Auxiliary 1310nm tunnel for any-bandwidth 3rd party fibre protocol, i.e. MADI, 1G Ethernet, 10G Ethernet, SMPTE 311m
Dual redundant PSU
No fan
1RU chassis

Video ports

Standards SD, ED, HD, Dual Link, 3G, ASI, MADI
Complies with SMPTE 259M, 292M, 344M, 372M, 424M
Interface SDI – Serial Digital Interface

MADI ports AES10

Connection SC fibre or coax BNC
4 x MADI I/O

Optical Connection Complies with 21 CFR 1040.10 and 1040.11

Connection LC
Data rate Dependent on the Video data rate – no bandwidth restriction
Fibre cable lengths Standard singlemode transceiver ≤ 10 km
Special singlemode transceiver ≤ 80 km (on request)

SANE, LAN ports Convention

Audio TIA – 568A/B, Optocore 200 Mbit/s
LAN TIA – 568A/B, IEEE – 802.3 10/100 Mbit/s

Serial Data Port Convention EIA / TIA-485

Data channels Digital control data 4
Data rate Up to 10 Mbps
Impedance Termination 330 Ω
Source ≤ 10 Ω

Auxiliary Fibre Port 1310nm fibre tunnel

Connection Duplex LC
Data rate Dependent on the distance between locations – no bandwidth restriction

Sync Hardware standard BNC – 75 Ω

Input Standards Word Clock, Black Burst (bi-level), Tri-Level
PAL/SECAM, NTSC, 720p59.94, 720p50, 1080i29.97, 1080i25
Output Standards Word Clock, Black Burst (bi-level), Tri-Level
BNC 1Vpp, BNC 3Vpp, PAL/SECAM, NTSC, 720p59.94, 720p50, 1080i29.97, 1080i25
Output Phase Shift Line, Frame, Pixel, Percent, Degree

Remote Control

RS232 EIA / TIA – 232 57 600 Baud
USB USB 2.0 – Device 12 Mbit/s
LAN IEEE – 802.3 10/100 Mbit/s

Power Supply

Type Switch-mode, universal input
Mains voltage 100? 240 V 50 60 Hz
Frequency 50 60 Hz
Cooling Passive, via surface and ventilation openings on both sides of the device

Dimensions 1 RU / 19″
