BROAMAN Repeat48 WDM-24

24 3G-SDI or Fibre channels multiplexed on single quad fibre

REPEAT48WDM-24

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Repeat48WDM-24 offers electrical to optical, optical to electrical or optical to optical conversion. It features 24 video channels combined over build-in CWDM module. All channels are transported to another location with two duplex fibres (single quad).

All BroaMan products comply with SMPTE standards, therefore can be used with 3rd party equipment.

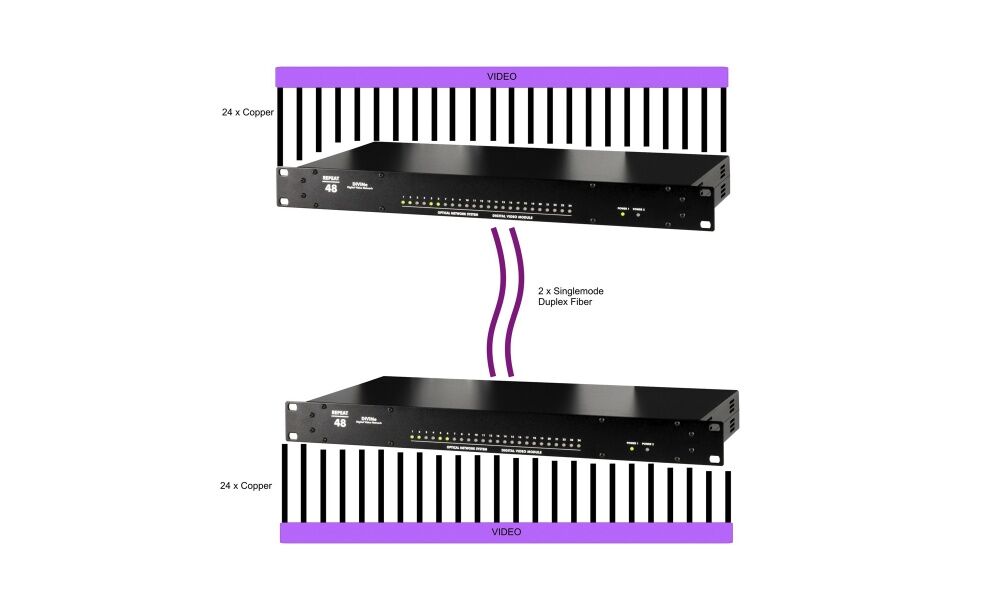

Two Repeat48WDM can be used as a point to point pair with 4 fibres in between. It also connects with a Route66 device to offer additional I/O in remote location.

KEY FACTS:

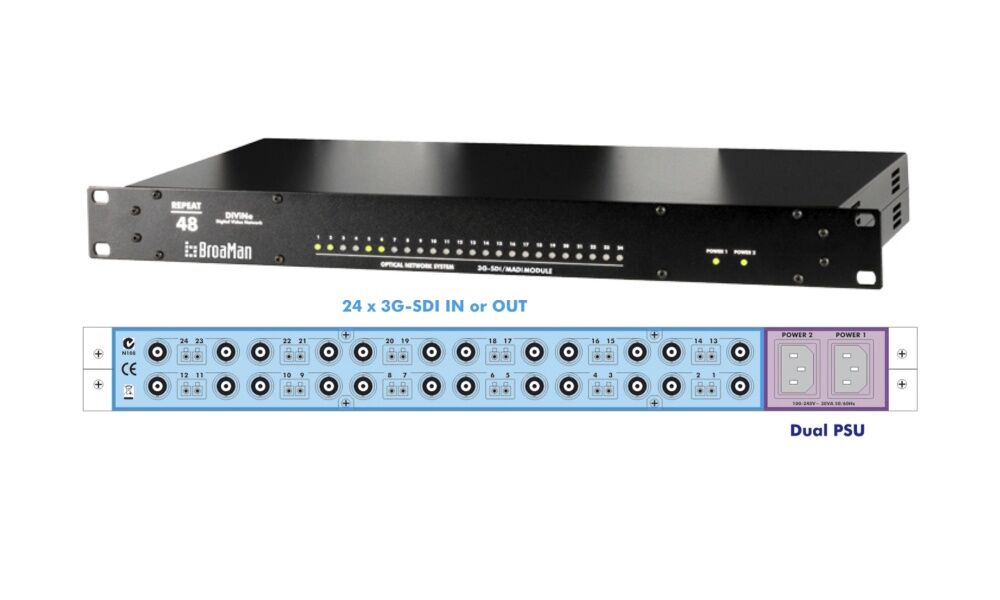

  • 24 x media converter
  • up to 12 x dual modules, each converts 3G-SDI to fibre or fibre to 3G-SDI
  • up to 6 x dual SFP modules
  • 2 x duplex fibre AUX port to transport 3rd party protocols
  • All channels multiplexed into two duplex fibre cables – build-in CWDM modules
  • Dual redundant PSU
  • 1RU chassis

Video ports

  • Standards SD, ED, HD, Dual Link, 3G, ASI, MADI
  • Complies with SMPTE 259M, 292M, 344M, 372M, 424M
  • Interface SDI – Serial Digital Interface

Optical Connection Complies with 21 CFR 1040.10 and 1040.11

  • Connection LC
  • Data rate Dependent on the Video data rate – no bandwidth restriction
  • Fibre cable lengths Standard singlemode transceiver ≤ 10 km
  • Special singlemode transceiver ≤ 80 km (on request)

Power Supply

  • Type Switch-mode, universal input
  • Mains voltage 100? 240 V 50 60 Hz
  • Frequency 50 60 Hz
  • Cooling Passive, via surface and ventilation openings on both sides of the device

Dimensions 1 RU / 19″

  • W x H x D 19.0 x 1.73 x 7.87 inch
  • Weight Dependent on configuration
