BSS FCS966

Dual-channel constant Q graphic equaliser.

FCS966

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

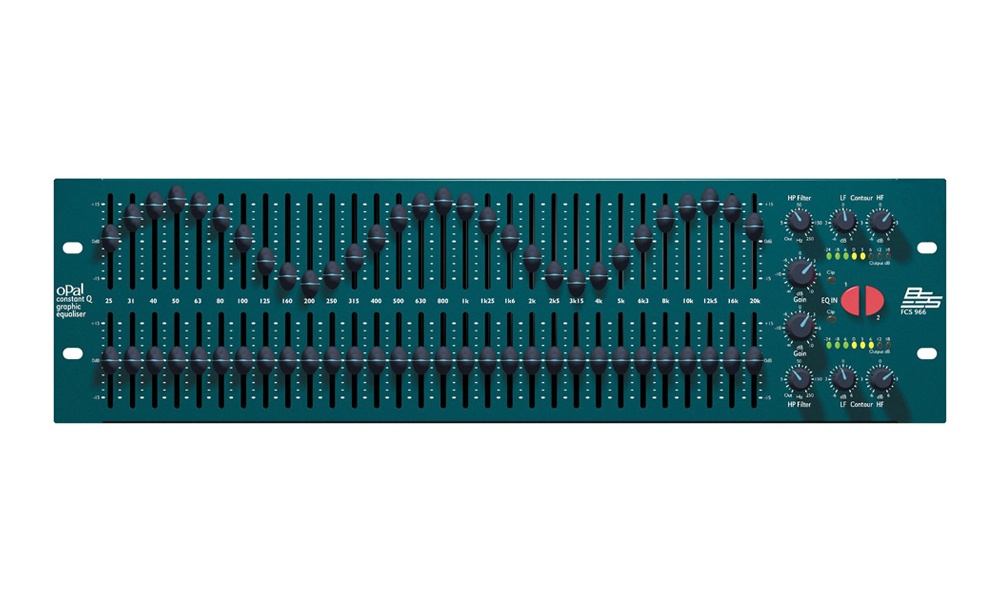

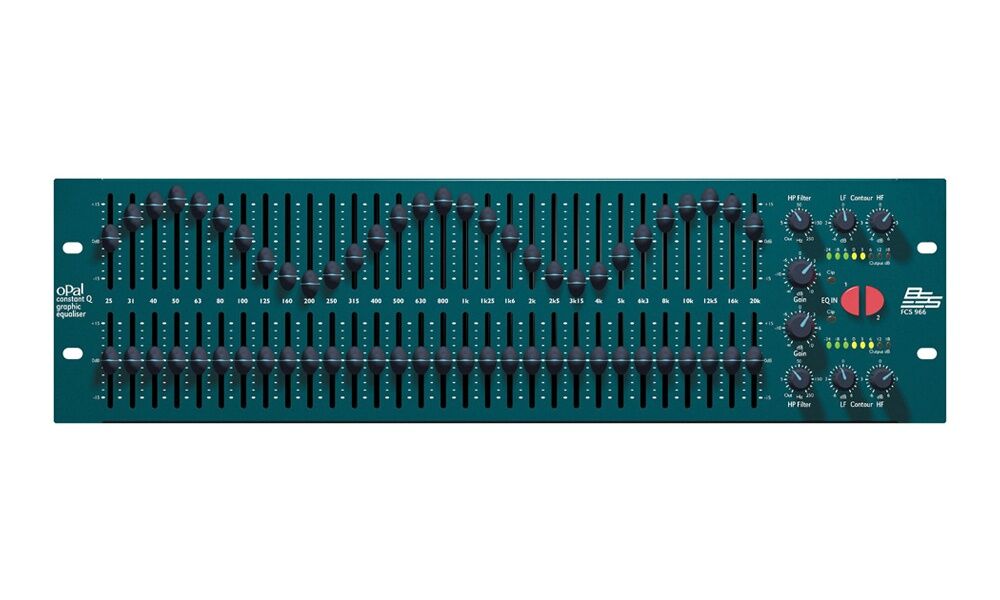

The FCS966 is a high performance, low cost graphic EQ, featuring 30 ISO bands, each with ±15dB gain. The filters have constant Q for improved efficiency, with a centre detent filter bypass at 0dB. The FCS966 also has separate HF and LF contour filters to adjust overall sound balance without having to adjust a detailed room or loudspeaker response, along with a sweepable high pass filter selectable from OFF to 250Hz.

• Balanced XLR, 1/4″ jack and Phoenix/Combicon screw terminal analogue I/O

• Long-throw 45mm faders

• Bypass switch

• LF shelving filter provides ±6dB gain @ 50Hz

• HF shelving filter provides ±6dB gain @ 14kHz

• Main gain control from -∞ to +10dB

• 8-segment LED metering with clip indicator

• 3U rack-mountable
