DRAWMER D Clock (DMS2)

Word clock distribution amplifier

DMS-2

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



The D-Clock is a dual input/twenty output word clock distributor with a 16 character blue LCD display providing a reference measurement of the incoming sample rate. Both AES/EBU and BNC word clock inputs feature a zero latency loopthrough output with switchable high impedance to maintain the correct level of the digital signal for onward distribution. The D-Clock displays incoming sample frequencies up to 768 kHz to an accuracy of 2ppm (parts per million) with two further modes – sample frequency with ±ppm error and sample frequency with % pull up/down for video users.

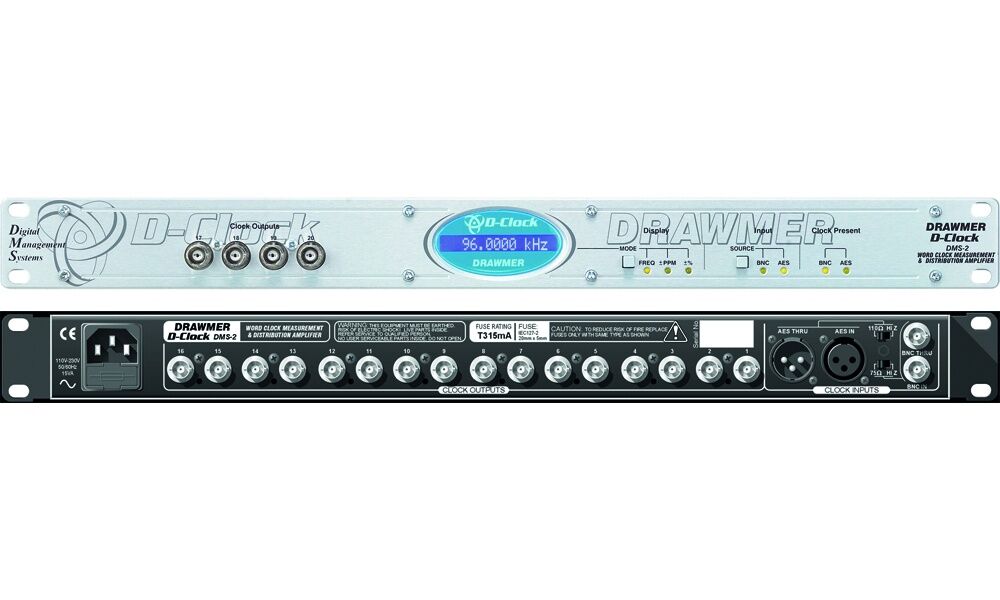

Sixteen BNC clock outputs are situated on the rear panel with a further four BNC clock outputs on the front panel for quick patching to other digital devices. The word clock outputs can be derived from either a word clock input or alternatively an AES/EBU audio signal from which clock information can be stripped.

• Inputs: BNC with zero latency loopthrough

• AES with with zero latency loopthrough

• Outputs: BNC loopthrough / AES loopthrough

• 20 BNC clock outputs – 33½ impedance

• 3 sample rate measurement LCD modes accurate to 2ppm

• Universal voltage filtered mains power input
