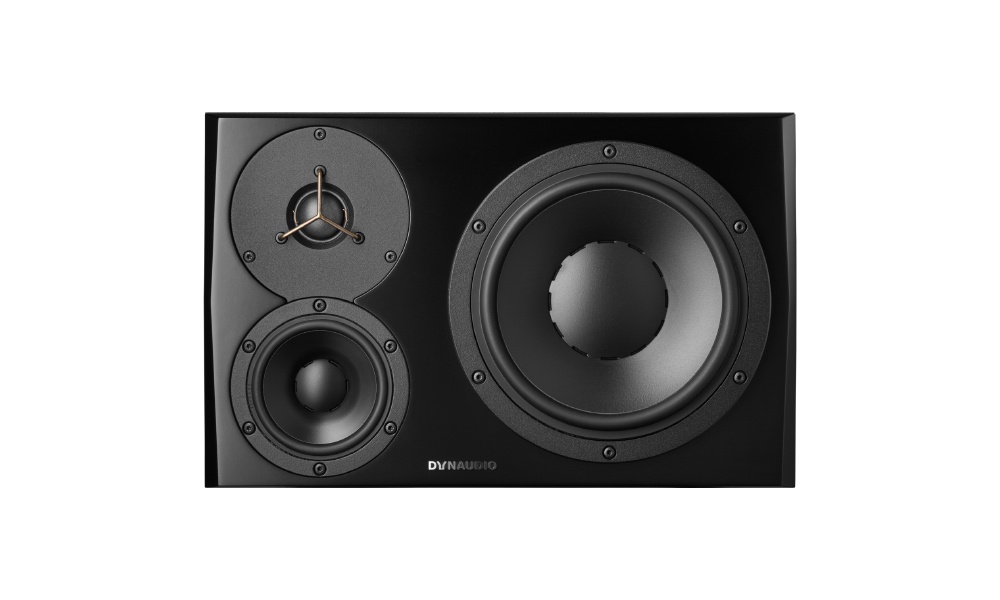

The 3-way LYD monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere – with unmatched accuracy at any volume level.

This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.

Specification

• Max SPL (1m, pair): 112dB
• Principle: Bass reflex
• Crossover Frequencies: 460Hz / 5.5kHz
• Tweeter: 1inch Soft dome
• Midrange: 4inches
• Woofer: 8inches
• Dimensions (W x H x D): 369 x 234 x 328mm
• Weight: 12kg
• Sensitivity (85dB @ 1m, free field):
• +6dB: 50mV
• 0dB: 100 mV
• -6dB: 200 mVSpecification sheet for LYD part 1
• Amplifier:
• Power (Tweeter/Midrange/Woofer): 50W/50W/80W
• Type: Class D
• Power consumption standby: <0.5W
• Power consumption max.: 100W
• Input voltage: 90 – 264V AC, 50 – 60Hz
• Inputs: XLR balanced/RCA unbalanced
• Outputs: N/A
• Frequency response -6dB limits:
• Bass extension +10Hz: 60Hz – 21kHz
• Bass extension 0Hz: 50Hz – 21kHz
• Bass extension -10Hz: 40Hz – 21kHz
• Free field frequency response: 50Hz – 19kHz
