JOECO Blackbox Recorder (MADI)

64-track MADI recorder and player

BBR64-MADI

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

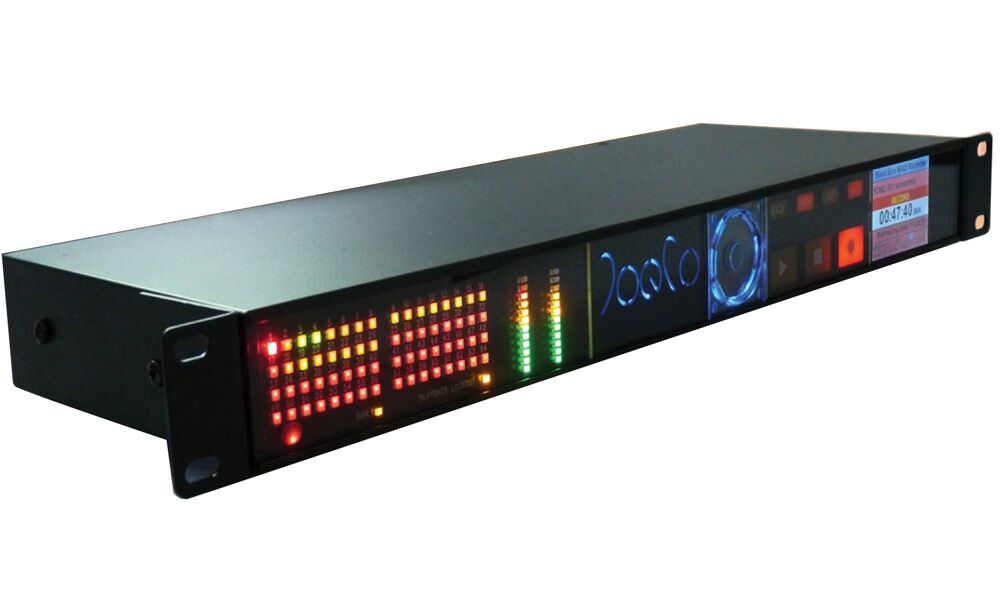

The JoeCo Blackbox BBR64-MADI Recorder is designed to record and replay up to 64 channels of MADI data. The recorder can capture the full 64 channels at standard sample rates directly to Broadcast WAV files on an external USB2 drive. Double sample rate MADI recording (up to 96kHz) is also accommodated.

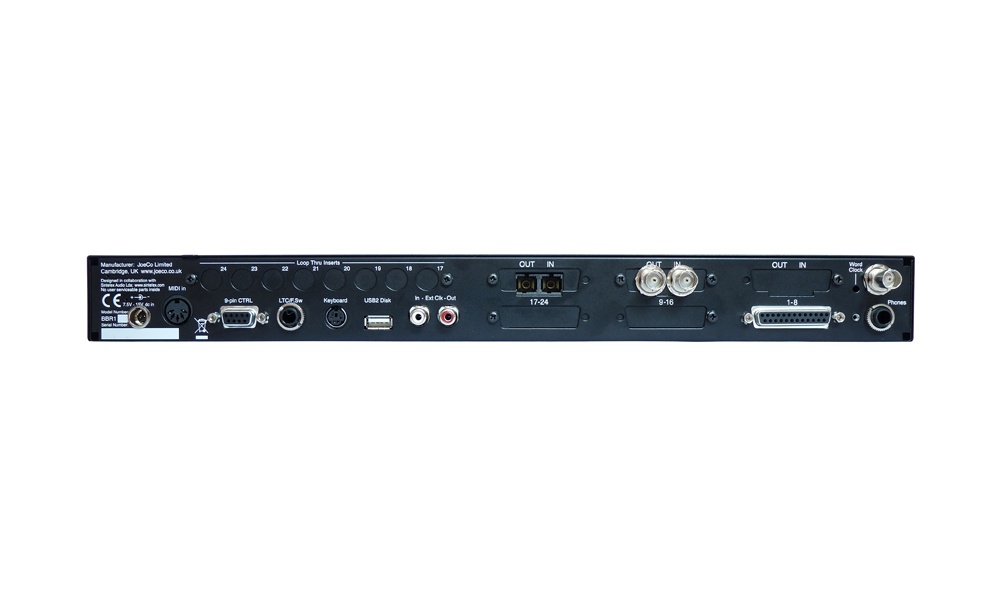

The 1U recorder features both coaxial and optical MADI connections for interfacing with any MADI equipped console or other equipment. Additionally, the BBR64-MADI caters for 56-channel legacy MADI and can record a further eight channels of analogue (balanced line in) for capturing the audience reaction or general ambience.

The BBR64-MADI will lock to or generate word clock, as well as locking to the received MADI data stream. The MADI input is echoed direct to the output to ease system integration. In contrast with previous models, continuous channel metering on every channel is not provided and there is no internal mixer. Instead, individual channels, or pairs of channels can be monitored on a PFL bus providing both hi-resolution metering and headphone monitoring.

• Records and replays up to 64 channels of MADI

• Standard sample rates record directly to Broadcast WAV files on an external USB2 drive

• Double sample rate MADI recording (up to 96kHz)

• Coaxial and optical MADI connections

• Caters for 56-channel legacy MADI
