4 Analogue XLR Inputs to Dante®
AVN-DIO15
£509.95 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation

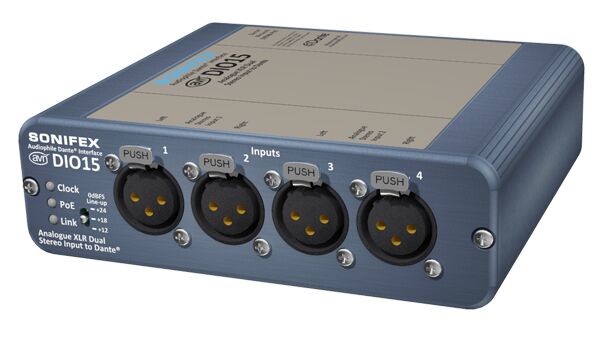

The AVN-DIO15 is a 4 analogue XLR input to Dante converter in the Sonifex DIO range of Dante input/output devices. It features four balanced analogue XLR inputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.
The front panel provides a global 0dBFS line-up which can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. There are also front panel LEDs to indicate network clock status, AoIP link status and PoE power active.

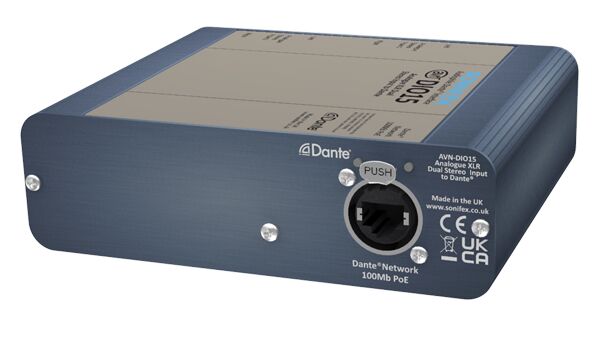

It’s powered using Power over Ethernet (PoE), using a Neutrik etherCON connector. The AVN-DIO15 uses the latest Audinate Dante chipset so is AES67 and Dante Domain Manager compliant.
Technical Specification For AVN-DIO15 |
|
| Analogue XLR Input Pin-out | |
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Phase |
| 3 | Non Phase |
| Line Inputs – XLR | |
| Input Impedance: | 5Ω balanced |
| 0dBFS Line-Up: | Selectable +12/+18/+24dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.2dB (ref 1kHz) |
| THD+N: |
<-118dBFS, -12dBu (+18dBu=0dBFS mode), 20Hz to 20kHz, 20kHz BW |
| Dynamic Range | 120dB, 20kHz BW, Rs=200Ω |
| Cross Talk | <-110dB |
| Common Mode Rejection | >60dB @ 1kHz |
Network and AoIP |
|
| AoIP Standard: | Dante |
| Channels: | 4 transmit |
| Flows: | 2 transmit |
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Encoding: | PCM 16, PCM 24, PCM 32 |
| AES67 Support | Yes |
| Connectivity: | etherCON (RJ45 compatible) |
| Speed: | 1Gbps or 100Mbps |
| Dante Domain Manager Ready: | Yes |
| Clock Source: | Internal (PTP Leader), Network PTP Leader or from SDI input (Sync to External) |
PoE Power |
|
| Standard | 802.3af |
| Redundancy | Yes |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6w |
| Max PSE Usage | 15.4 W |
Equipment Type |
|
| AVN-DIO15: | 4 Analogue XLR Inputs to Dante® |
Physical Specification |
|
| Dimensions (Raw): | 14.0cm (W) x 13.6cm (D) x 4.2cm (H) 5.5” (W) x 5.4” (D) x 1.7” (H) |
| Dimensions (Boxed): | 17.8cm (W) x 17cm (D) x 5.6cm (H) 7.0″ (W) x 6.7″ (D) x 2.2″ (H) |
| Weight: | Nett: 0.42kg Gross: 0.56kg Nett: 0.95lbs Gross: 1.25lbs |
Accessories |
|
| AVN-DIOBT AVN-DIOMT AVN-DIORK |

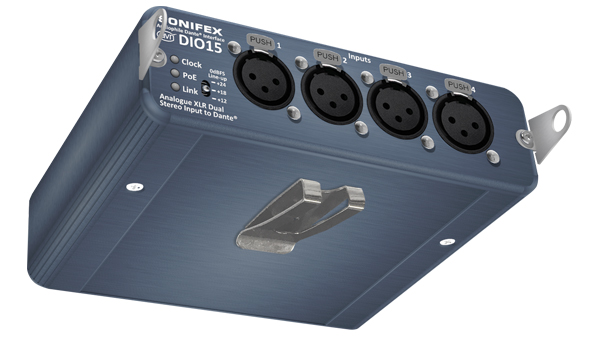

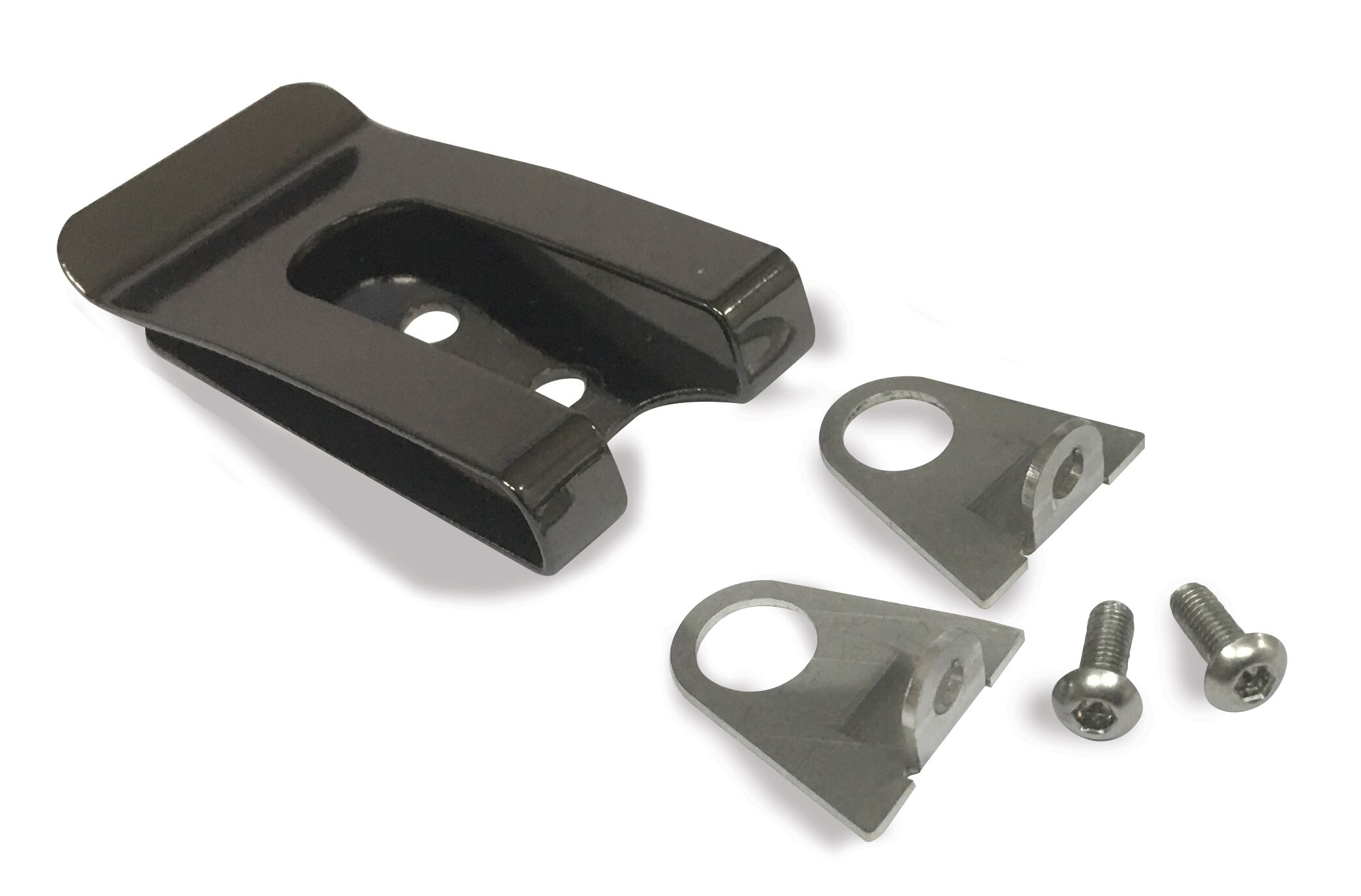

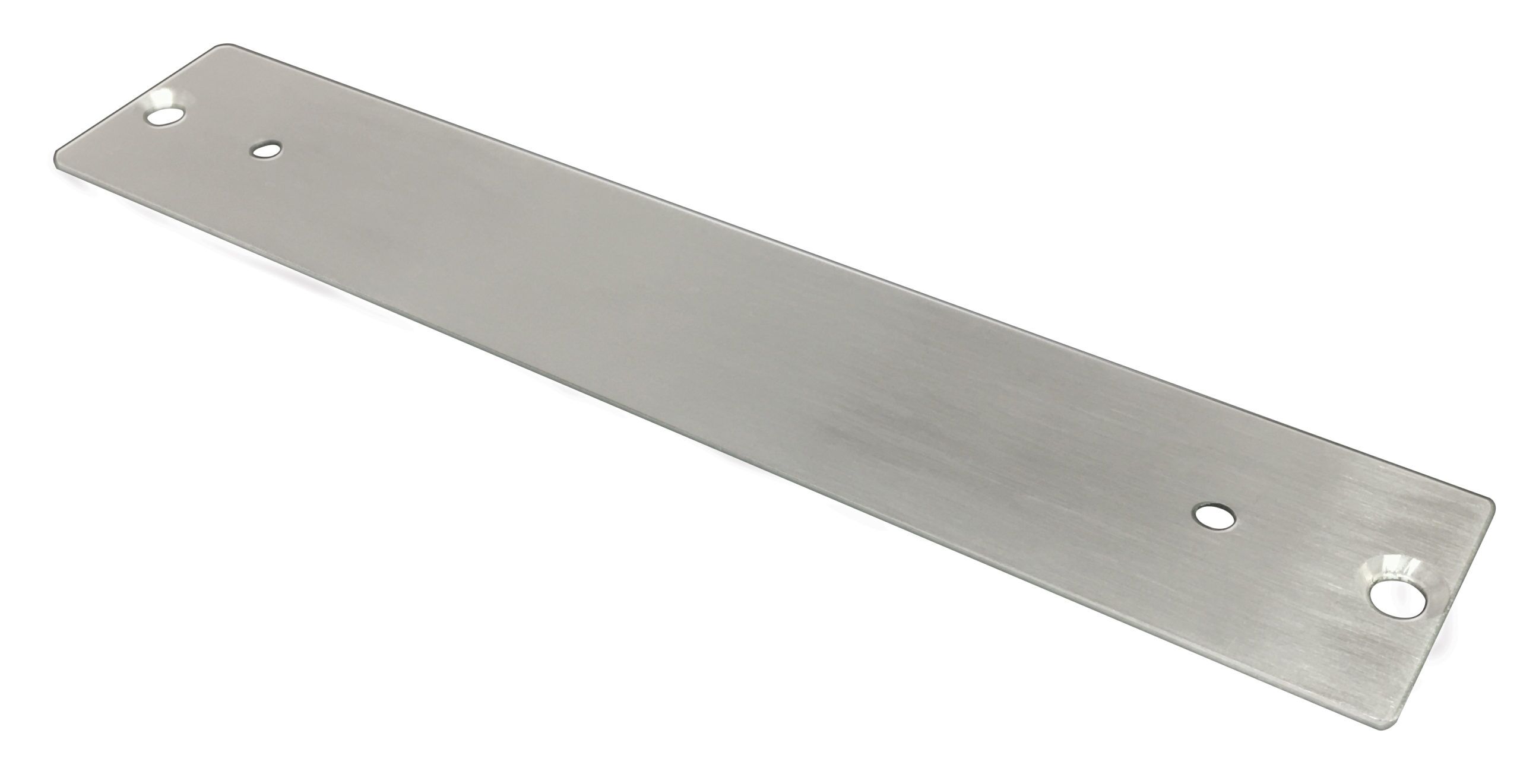

AVN-DIO Large Unit Belt Clip Kit AVN-DIO Large Unit Underdesk Mount AVN-DIO 1U 19″ Rack Kit (5 x Small DIO or 3 x Large DIO) |
