STUDIO TECHNOLOGIES Model 206

STUDIO TECHNOLOGIES Model 206

Announcer’s Console w/ 3 Talkback Outputs

MODEL206

£960.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

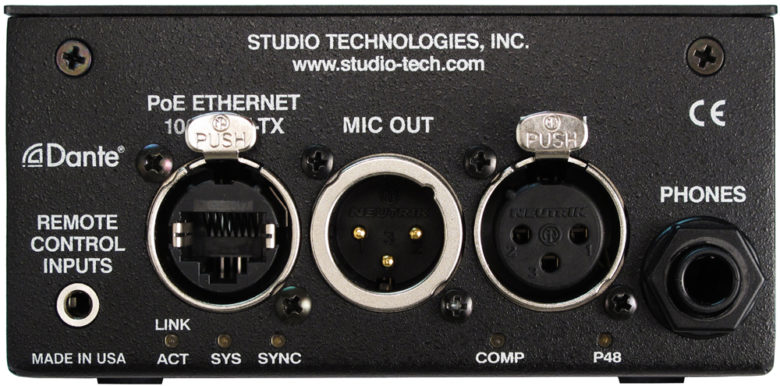

The Model 206 Announcer’s Console offers a unique combination of analogue and digital audio resources for use in broadcast sports, eSports, live event, entertainment, and streaming broadcast applications. The unit is housed in a compact, rugged steel enclosure that’s intended for table-top use. Calling the Model 206 “cute” or “cool” would be accurate; its nicely proportioned but diminutive size makes it ideal for use in space-constrained locations. The Model 206 supports Dante® audio-over-Ethernet digital media technology with AES67 compatibility for integration into contemporary applications. The unit is extremely simple to deploy, is “pro” quality throughout, and provides an intuitive user experience. The Model 206’s audio quality is excellent, with low distortion, low noise, and ample headroom. Careful circuit design and rugged components ensure long, reliable operation.



Key Features
  • Dante audio-over-Ethernet technology
  • Digital audio and direct-microphone outputs
  • One main and three talkback output channels
  • Highly-flexible 2-channel headphone output
  • Compact unit supports one on-air location
  • Excellent audio quality
  • Uses STcontroller for configuration
  • Power-over-Ethernet (PoE) powered

(Model206)

Media

Datasheet (1.17 MB)
Manual (827.03 KB)
