The Model 792 Central Controller with Model 793 Control Console is a StudioComm for Dante^® system designed for supporting high-channel-count, advanced multichannel monitoring applications. Features include one 16-channel and one stereo Dante digital audio input and one 16-channel balanced analogue input. Also includes one 16-channel and one stereo Dante monitor output and one 16-channel balanced analogue monitor output. Three configurable Gigabit Ethernet network interfaces; two can be used for transporting audio (Redundant Dante) and the third for accessing the management menu system.

Separate Dante primary, Dante secondary, and management network interfaces
Dante Domain Manager (DDM) and AES67 support
44.1, 48, 88.2 & 96 kHz sample rates supported

Four Audio Inputs
Input A: Dante surround (16 channels)
Input B: Analogue surround (16 channels)
Input C: Dante stereo (2 channels)
Input D: Analogue stereo (2 channels)
Trim: -20.0 to +20.0 dB in 0.1-dB steps, configurable per channel
Delay: 0 to 999 milliseconds @ 48 kHz, configurable per input (scales up or down depending on actual sample rate)

Three Audio Outputs
Analogue Surround: 16 channels
Dante Surround: 16 channels
Dante Stereo: 2 channels
Source: none, pre-fade, output A, or output B; configurable per output
Trim: -20.0 to +20.0 dB in 0.1-dB steps, configurable per channel

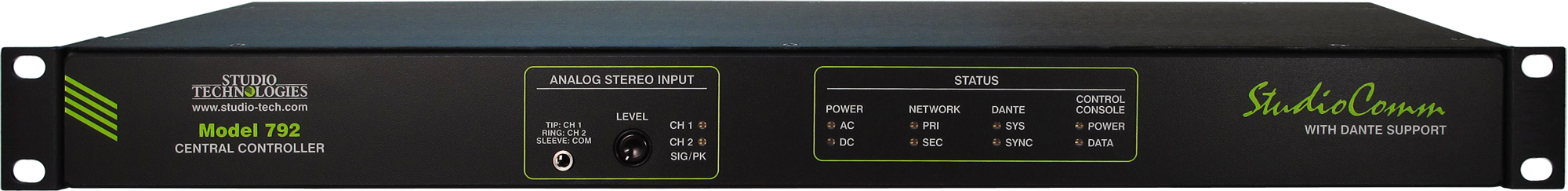

(Model792)

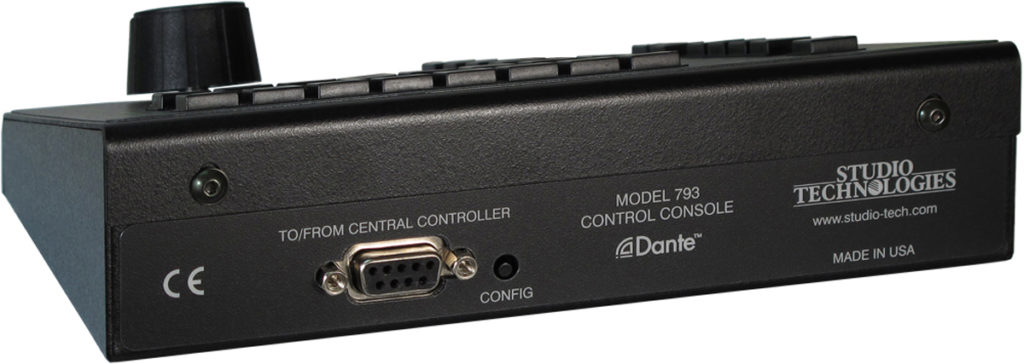

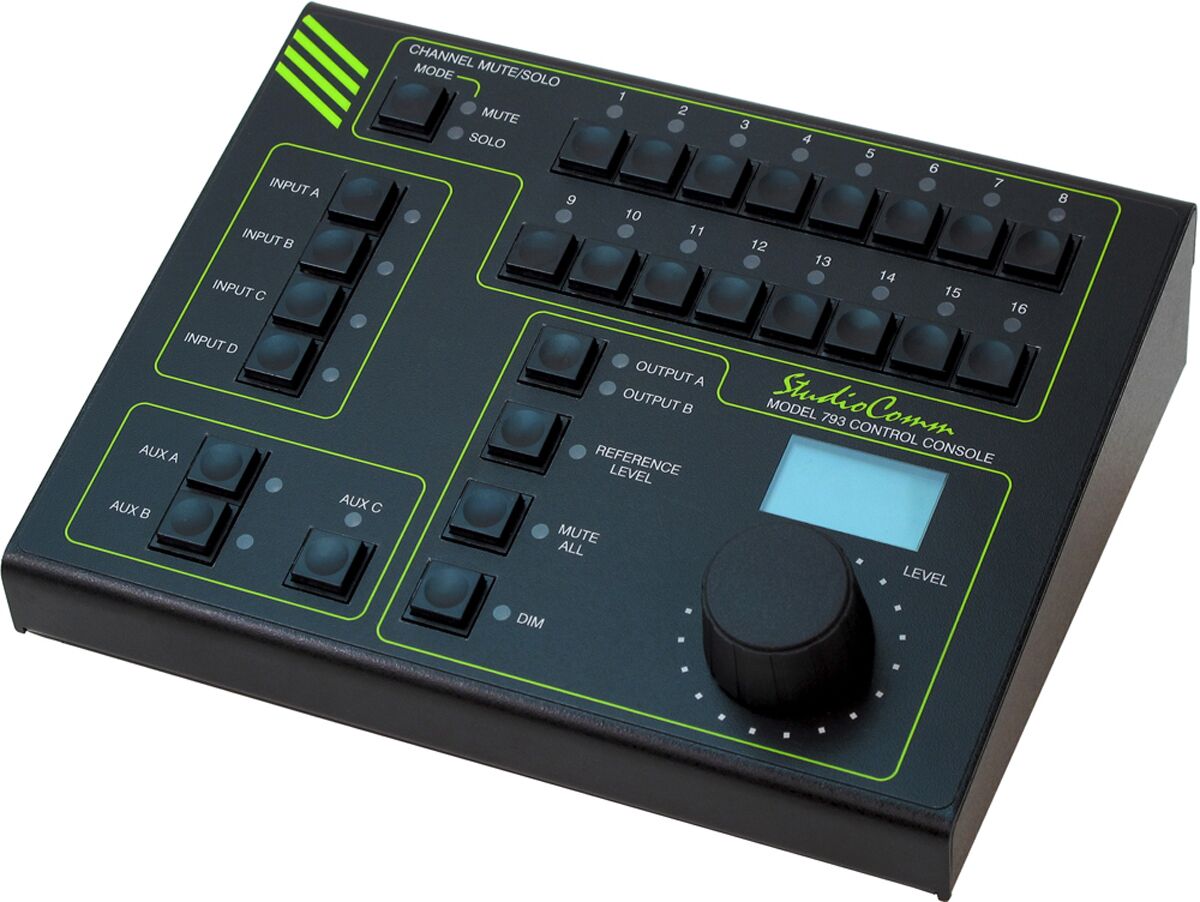

(Model793)
