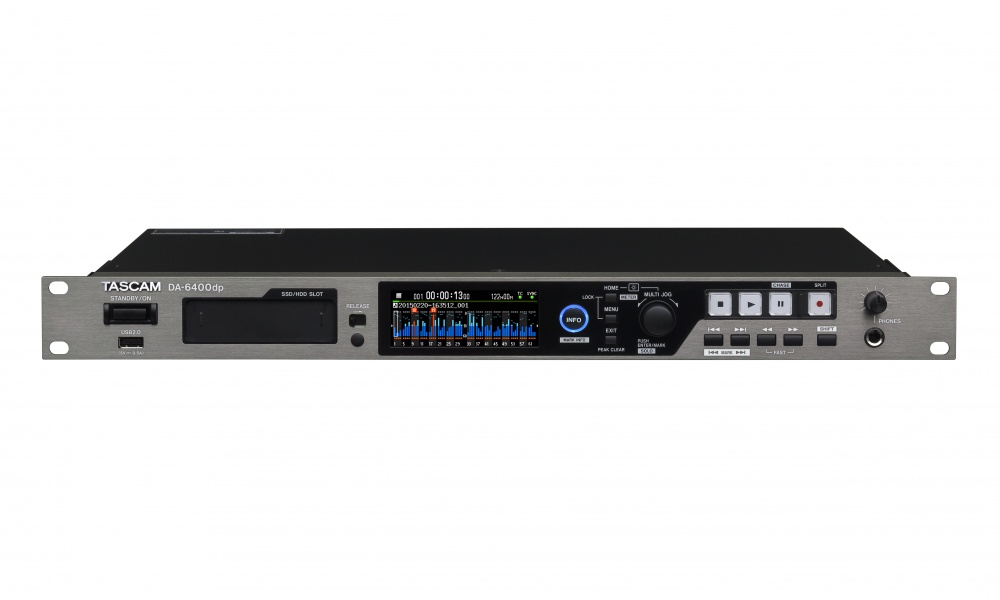

TASCAM DA-6400DP
TASCAM DA-6400DP
64-track Audio Recorder with redundant power supply
DA-6400DP
£3,541.66 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
The DA-6400DP is a universal recording system for up to 64 audio tracks received from a Digital Audio Workstation or live mixing console and indluses dual power supplies. The recorder can be used with a variety of interface boards such as MADI, Dante, or AES/EBU to integrate flawlessly into virtually any environment. Moreover, Tascam plans to maintain the recorder as a living system by adapting it continuously to new interfaces and systems according to the needs of users.
The DA-6400DP uses a special real-time operating system and highly reliable SSD drives for storage. A model without redundant power supply is also available (DA-6400).
Embedded operating system for high stability and simple standalone operation
Transport buttons for simple standalone operation | Tascam DA-6400The DA-6400 uses an embedded operating system for quick startup and simple operation. Stable recording is possible when using high sampling rates with large amounts of data transmission. Furthermore, files are saved approximately every 20 seconds during recording, so file losses due to unexpected power supply interruptions are kept to a minimum.
Supports recording/playback of 64 channels at 48 kHz or 32 channels at 96 kHz
PCM recording/playback from 48 kHz to 96 kHz maximum is supported for compatibility with existing recording studio systems, PA systems and other recording situations where high sampling rates are being utilized.
Note: 32 channels are supported at 96 kHz/24-bit resolution.
Solid-state drives (SSD) as recording media
Tascam solid-state drive (SSD) allows maintenance-free operation of the DA-6400 multi-track recorderThe DA-6400 uses solid-state drives (SSD), which have excellent vibration and environmental resistance and offer simple, maintenance-free operation. It includes a Tascam SSD designed and thoroughly tested using DA-6400 units. Component parts, including IC control elements, are carefully selected and constantly tested lot by lot in cooperation with the parts manufacturers to maintain quality specifications.
By installing SSDs into removable AK-CC25 storage cases and using the swappable bay in the DA-6400 unit, it is easy to switch and use multiple drives. Since the DA-6400 is hot-swappable, it is possible to remove and load SSDs stored in AK-CC25 cases even when the power is on, making rapid switching of media possible. SSDs stored in AK-CC25 cases can be connected to computers by USB and used as external drives.
Note: One AK-CC25 and one TASCAM SSD are included with each DA-6400/DA-6400dp unit. Additional cases and drives can also be purchased separately.
Stable digital signal control with 1 ppm accuracy
Because the clock generator can influence digital signal quality, the DA-6400 employs a temperature-compensated crystal oscillator (TCXO) that boasts a high precision of ±1 ppm (0.048 Hz at 48 kHz).
Redundant power supply
The DA-6400DP has two power supply circuits built-in to allow redundant power from another AC circuit. This provides failsafe operation in case AC power is interrupted on one of the circuits.
1U size enables installation where rack space is at a premium
A single DA-6400 can record and play back up to 64 channels but requires only a small amount of space for installation due to its compact 1U design.
1000BASE-T Ethernet and file transfer by FTP

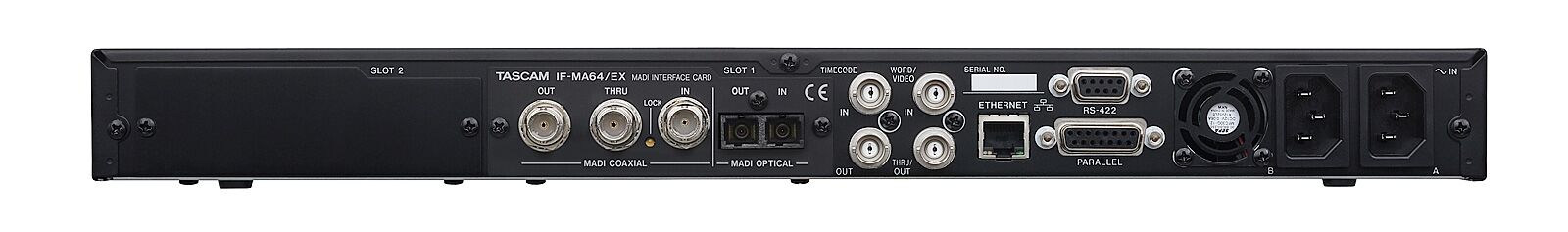

Ethernet, RS-422 and Parallel connectors for external control | Tascam DA-64001000BASE-T gigabit LAN is supported, and the work protocol is FTP (File Transfer Protocol). Access is possible from any kind of system, including Windows, Macintosh and UNIX.
External parallel/serial control
In addition to remote control and monitoring using the LAN function, external remote control using parallel and RS-422 serial communication interface (2P protocol) is supported.
SNTP time synchronization
With SNTP support, the DA-6400 can automatically update its internal clock at regular intervals over a network, so accurate time information can be maintained.
Two audio interface slots provide input and output flexibility
Two expansion slots for audio interface cards on the Tascam DA-6400 multi-track recorderThe DA-6400 has two rear audio interface slots. By adding interface cards (sold separately), flexible support for input and output options is possible. For example, signal conversion of Dante/AES67 input to MADI output is possible. In addition, one slot could use MADI/Dante to record 56 channels as the main, while the other slot could use AES/EBU to record 8 channels as the sub. Furthermore, by using two AES/EBU interface cards, the maximum number of simultaneous input and output channels can be increased to 32.
MADI, Dante/AES67, AES/EBU and other digital input and output plus analogue output

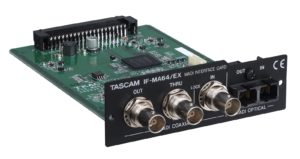

MADI optical, MADI coaxial interface on the Tascam DA-6400 multi-track recorderAudio interface cards can be swapped from their slots, enabling flexible support for different types. The lineup of interface cards includes solutions for MADI, Dante/AES67, AES/EBU, and a planned analogue output and AVB to complete the line. Support is available for the recording studio and live systems of major manufacturers, so you can choose interface cards according to the application requirements.
Note: When using two AES/EBU cards, a maximum of 32 inputs and outputs at 96 kHz/24-bit resolution is possible.
