TASCAM DR-10L
TASCAM DR-10L
Digital Audio Recorder With Lavalier Microphone
DR-10L
£0.00 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
Add item to Quote List
Add item to Quote List

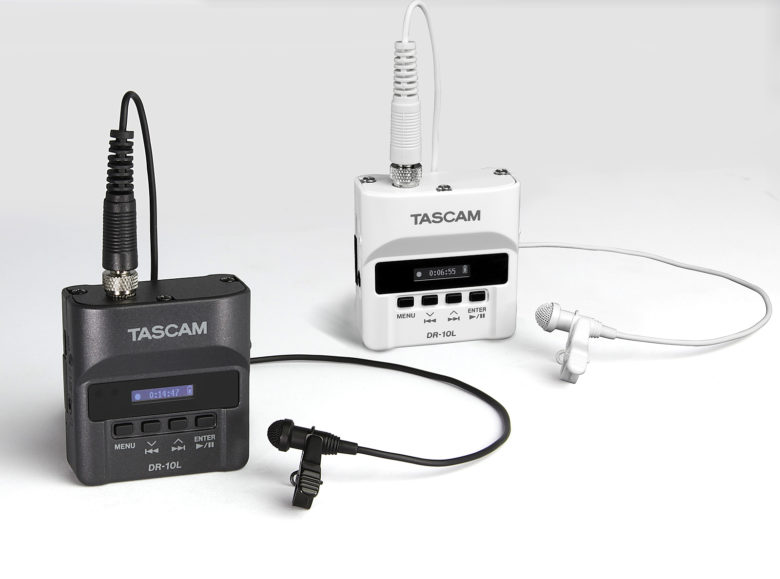

The DR-10L is an ultra-compact digital recorder / lavalier microphone combination. Designed for both the creative filmmaker and the busy videographer, it is a powerful problem solver providing professional sonics and high convenience. For location recording, a DR-10L can be mounted to each on-camera actor, making booms, wires or expensive (and unpredictable) wireless systems unnecessary. The DR-10L is also an inspiring tool for the experimental audio designer thanks to its portability, high quality and a tiny, professionally spec’d microphone.
For added flexibility, the included wired lavalier microphone is affixed via a screw connector compatible with most Sennheiser lavalier microphones and other mics with the same connector.
Key features
- Micro-sized audio recorder with lavalier microphone, microphone clip and windscreen included (cable length: 160 cm)
- Records to microSD/microSDHC card (up to 32 GBytes)
- Linear PCM mono/poly recording at 44.1/48 kHz, 16/24 bits
- BWF-compatible WAV format allows inclusion of time information within audio files
- Recording and playback of MP3 format files
- Sampling rate: 44.1/48 kHz, resolution: 16/24 bits
- Bit rate: 128/192 kbit/s (recording), 32–320 kbit/s (playback)
- Switchable limiter to prevent clipping
- Switchable low-cut filter to reduce low-frequency noise
- Low/Mid/High/High+ recording level settings
- Automatic level control available
- Dual recording function allows two files to be recorded simultaneously at different levels to provide a safety track in case of distortion (level reduction for secondary recording selectable –6/–12 dB)
- liding record switch and hold function to prevent misoperation during recording
- Automatic file closing function to prevent the loss of already recorded data
- Built-in clock function, supports BWF files with included time information – convenient for editing and searching
- Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
- Playback function allows recorded data to be checked immediately
- Headphones output
- High-contrast, easy-to-read OLED display
- Micro USB-B connector for easy data transfer with a computer
- Records at least 10 hours on a single AAA battery using alkaline batteries (Evolta)
- Settings can be created as a text file on a computer and transferred to the recorder via USB
- Firmware can be updated using a microSD card
- Belt clip included
- Custom case for storing the unit and accessories included
Specifications
| General | ||
|---|---|---|
| Recording media | microSD card (64 MB – 2 GB) microSDHC card (4–32 GB) |
|
| Recording/playback formats | BWF-compatible WAV format, 44.1/48 kHz, 16/24 bits, mono/poly MP3 format, 44.1/48 kHz, 128/192 kbit/s (recording) 32–320 kbit/s (playback) |
|
| Analogue audio inputs and outputs | ||
|---|---|---|
| Microphone input | 3.5-mm mini TRS jack (with screw lock) | |
| Maximum sound pressure level (mic) | 115 dB SPL | |
| Minimum input level | –55 dBu (Gain H+) | |
| Maximum input level | –15 dBu (Gain L) | |
| Gain range | 14–38 dB | |
| Nominal input impedance | 33 kΩ (Mic bias off) 2 kΩ (Mic bias on) |
|
| Analogue output (Headphones jack) | 3.5-mm mini stereo jack (dual mono audio output) | |
| Audio performance | ||
|---|---|---|
| Frequency response (input to phones output, 10 kΩ load) | 20 Hz – 22 kHz, +1/–2 dB | |
| Distortion | 0.05 % (1 kHz sine wave, maximum input level) | |
| S/N ratio | 88 dB or higher (phones level max., MIC GAIN set to L) | |
| Power supply and other specifications | ||
|---|---|---|
| Power supply | 1 AAA battery (alkaline, NiMH or lithium) USB bus power from a computer |
|
| Power consumption | 0.45 W (maximum) | |
| Current consumption (USB bus power) | 0.25 A (maximum) | |
| Date and time data retention | Secondary lithium battery (built-in) | |
| Dimensions (W × H × D) | 52 mm × 56 mm × 25 mm (excluding protrusions) | |
| Weight | 63 g (with battery, without microphone) 51 g (without battery/microphone) |
|
| Permissible operating temperature range | 0-40 °C | |
| Battery operation time | ||
|---|---|---|
| Conditions: WAV recording at 48 kHz/24 bit, continuous operation, JEITA recording times, in hours:minutes | ||
| Alkaline battery (Evolta) | ||
| 10:00 | Microphone connected, headphones not connected, mic bias off, limiter off, dual recording off, mono file | |
| 9:30 | Microphone connected, headphones not connected, mic bias on, limiter off, dual recording off, mono file | |
| NiMH battery (Eneloop) | ||
| 8:00 | Microphone connected, headphones not connected, mic bias off, limiter off, dual recording off, mono file | |
| 7:30 | Microphone connected, headphones not connected, mic bias on, limiter off, dual recording off, mono file | |
| Lithium battery (Energizer Ultimate Lithium) | ||
| 15:30 | Microphone connected, headphones not connected, mic bias off, limiter off, dual recording off, mono file | |
| 14:30 | Microphone connected, headphones not connected, mic bias on, limiter off, dual recording off, mono file | |
