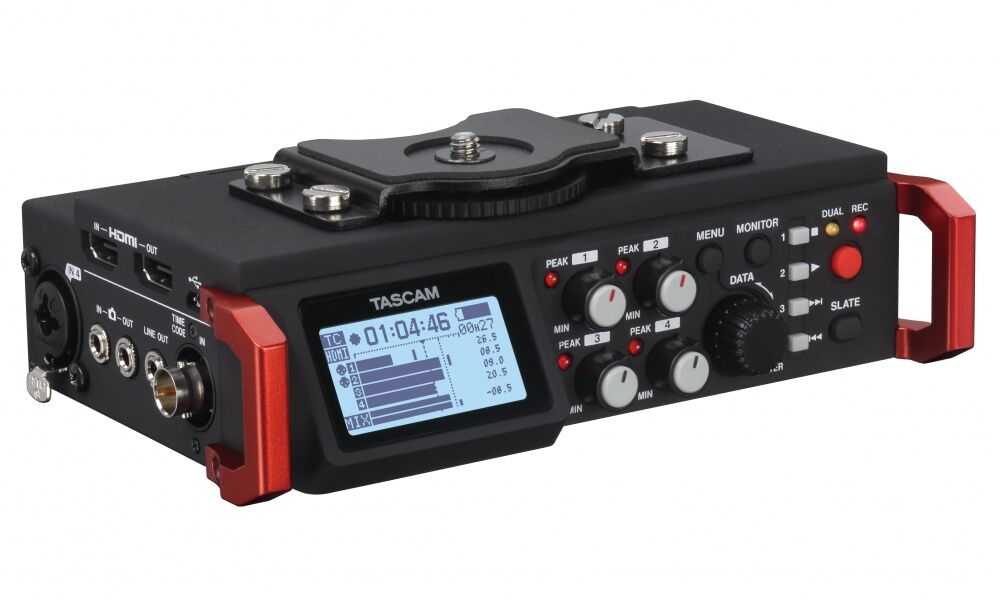

TASCAM DR-701D is the ultimate portable audio system for video production.

• SD/SDHC/SDXC cards used for recording media.
• 6 maximum simultaneous recording tracks
• MONO, STEREO, 2MIX, DUAL MONO, DUAL ST and DUAL2MIX recording modes
• Recording formats: 16/24-bit, 44.1/48/96/192kHz (WAV/BWF) (192kHz only for two-track recording)
• Built-in original TASCAM HDDA mic preamps provide high audio quality
• Input levels can be adjusted separately for each track
• XLR/TRS inputs support +4dBu line level and 24/48V phantom power
• Clock and record start/stop can be synchronised with a camera using the HDMI port
• DR-701D audio signal can be output to an external camera or recorder from the HDMI OUT or line output
• Cascade function using HDMI connections allows multiple DR-701D transport and monitoring operations
• SMPTE Timecode can be input through the TC IN connector to add recording start times to files
• Timecode generator (RTC) allows recording start times to be added to files even when there is no timecode input
• Plug-in power mics and high output mics (EXT IN 1/2) supported
•  OUT (CAMERA OUT) connector can output audio mixed by the DR-701D to a DSLR camera
•  IN (CAMERA IN) connector enables monitoring the sound from a DSLR camera through the DR-701D
• High quality audio output through a line output jack separate from the headphones jack
• Headphones jack with 50mW+50mW maximum output
• Tripod attachment threads (bottom), camera screw attachment that can be installed or removed with a coin (top) and shoe mount (top) included
• Handles on the left and right sides of the front protect the control surface and also enable attachment of a shoulder strap
• Transport and SLATE buttons made of rubber suppress noise during operation
• HOLD switch prevents misoperation
• 128×64-dot graphic LCD with backlight
• LED lights have high visibility even in direct sunlight
• High-speed transfer of files to computers possible using USB 2.0
• Micro-B type USB cable included
• Powered by 4 AA batteries, USB bus power or a PS-P515U AC adapter (sold separately)
• BP-6AA external battery pack (sold separately) enables operation for even longer times
• Optional RC-3F foot switch and RC-10 wireless remote control can be connected (both sold separately)
• Built-in mixer enables pan and level adjustments as well as solo monitoring and can output a mix of 4 channels
• GANG function allows the levels of multiple channels to be controlled simultaneously
• Individual channel trim settings shown
• 5-position low-cut filter (50/80/120/180/220 Hz) cuts unwanted low frequencies
• Multiband limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R)
• Delay function can compensate for distances between mics (+/-150 ms)
• Mid-side decoder function enables use with mid-side stereo mics
• Slate tone insertion functions (AUTO/MANUAL)
• Slate tone insertion points can be selected (recording start or recording start and stop when slate AUTO function used)
