Perfect for live sound venues or networked recording studios, Apollo x16D gives you elite-class Apollo X sound and realtime UAD plug-in processing over Thunderbolt and Dante. With Apollo x16D, you can mix and record live performances with over 200 UAD plug-ins from Neve, SSL, and Auto-Tune, plus classic LA-2A and 1176 compressors, and more.



Take Elite-Class Apollo X Sound on Stage

Universal Audio built Apollo x16D for both live sound engineers and networked recording studios. With its 16 channels of Dante I/O, elite-class audio conversion, and HEXA core DSP processing — the world’s most powerful system for running UAD plug-ins in realtime — Apollo x16D seamlessly connects to your digital mixing console, putting over 200 UAD plug-ins right at your fingertips.

Work Fast & Never Lose Your Settings

With its powerful digital mixing engine giving you control over inputs, outputs, and plug-in routing — Apollo x16D makes it easy to quickly build your mix and control entire effects chains in realtime. Then quickly recall your plug-in settings over MIDI, all without interrupting the performance.

Hundreds of Effects, One Rack Space

Apollo x16D comes in two editions, both delivering a generous suite of UAD plug-ins right out of the box. Build your mix with classic Teletronix LA-2A and 1176 compressors, Pultec EQs, and Neve channel strips to modern favorites from Auto-Tune, Avalon, and more.



Expand Your Studio Over Dante

Link up to four x16Ds to build a 64-channel Dante system with network redundancy. Or expand your current Thunderbolt Apollo studio over Dante — the most low-latency and scalable audio network available. This means that if you’ve been considering making the switch to a networked recording studio, or you simply want to grow to a multi-room setup, you don’t have to start from scratch.*

Mix Down to Surround

After the show, bring Apollo x16D back to the studio, where it becomes your all‑in‑one monitoring hub for mixing formats up to 9.1.6. This allows you to easily create 16‑channel immersive audio mixes of live sets or studio recordings for Dolby Atmos, Auro‑3D, Sony 360 Reality Audio, and others.



Key Features

• 18 x 20 audio interface featuring Dante I/O (supports AES67 mode @ 48 kHz)
• 24-bit / 192 kHz elite-class Apollo X D/A conversion
• Stereo AES I/O for connection to professional digital outboard hardware
• Includes up to 100+ UAD plug-ins with Ultimate+ or Essentials+ editions
• Recall plug-in settings over MIDI, even in the middle of a performance
• Onboard HEXA Core Processing for mixing with UAD plug-ins at near-zero latency
• Compatible with Thunderbolt Apollo interfaces to expand systems over Dante*
• Create 16-channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio, and others
• ALT monitoring support in all monitor modes (2 x ALT mon for stereo, 1 x ALT mon for all)
• Free industry-leading technical support from knowledgeable audio engineers

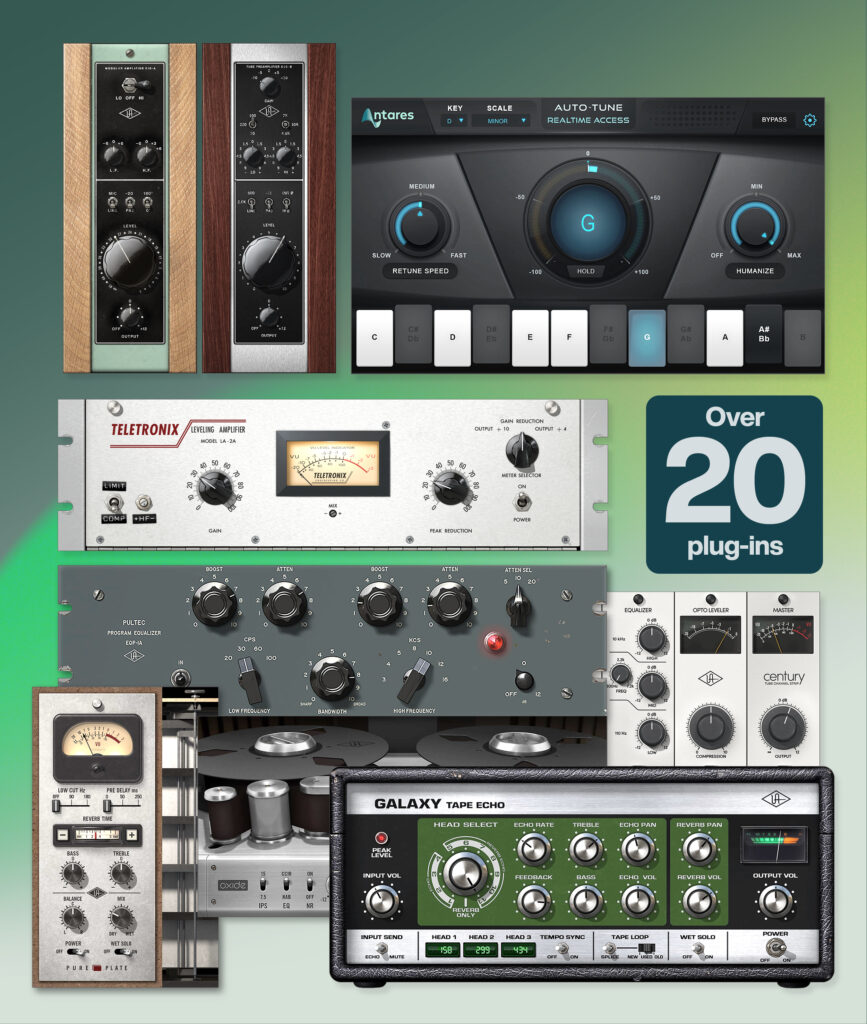

Included Plug-Ins in Essentials+ Edition

Channel Strips & Preamps

Century Tube Channel Strip

CS-1 Channel Strip

Helios Type 69 Preamp & EQ

Helios Type 69 Preamp & EQ Legacy

Precision Channel Strip

UA 610-A Preamp & EQ

UA 610-B Preamp & EQ

Compressors/Limiters

Fairchild 670 Legacy

Teletronix LA-2A Classic Leveler

Teletronix LA-2A Gray Classic Leveler

Teletronix LA-2A Legacy Leveling Amplifier

Teletronix LA-2A Silver Classic Leveler

UA 1176LN Legacy

UA 1176SE Legacy

Special Processing

Auto-Tune Realtime Access

Precision Enhancer Hz

Instruments

PolyMAX Synth



Delay & Modulation

Galaxy Tape Echo

Oxide Tape Recorder

Precision Delay Mod

Precision Delay Mod L

Reverbs & Rooms

Precision Reflection Engine

Pure Plate Reverb

RealVerb Pro



Equalizers

Pultec EQP-1A Legacy EQ

Pultec EQP-1A Passive EQ

Pultec HLF-3C Passive EQ

Pultec MEQ-5 Passive EQ

Pultec-Pro Legacy EQ



Guitar & Bass

Raw Distortion

Ampeg SVT-VR Bass Amplifier

Marshall Plexi Classic Amplifier
