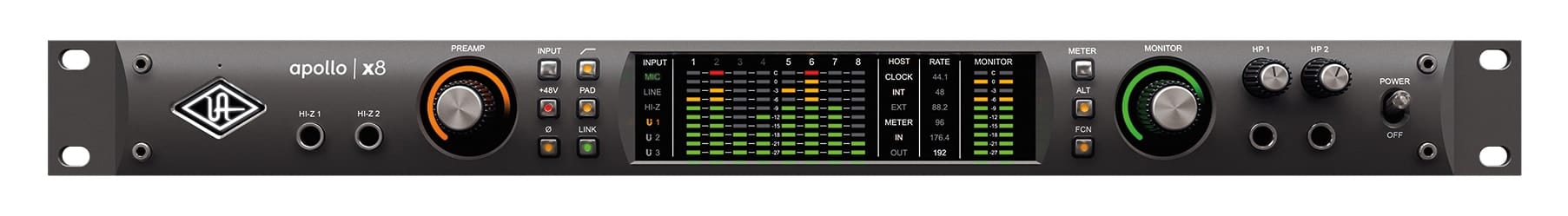

UNIVERSAL AUDIO Apollo x8
18 x 24 Thunderbolt 3 audio interface for Mac and Windows
Product lists can be submitted to HHB for a packaged quotation
The new worldwide standard for music production
- 18 x 24 Thunderbolt 3 audio interface for Mac and Windows
- Elite-Class conversion with 129 dB D/A dynamic range
- 4 Unison-enabled mic preamps
- UAD HEXA Core plug-in processing
- 7.1 Surround Sound monitoring
Elite Audio Conversion with Four Unison Mic Preamps, HEXA Core Processing, and Surround Sound
Apollo x8 allows music producers, project, and post-production studios to track, overdub, and mix with elite-class A/D and D/A conversion, HEXA Core UAD plug-in processing, Dual-Crystal clocking, and 7.1 surround sound monitoring — all in a sleek rackmount Thunderbolt 3 audio interface for Mac or Windows.
Built upon UA’s 60-year heritage of audio craftsmanship, this 18 x 24 interface distinguishes itself with four Unison™-enabled mic preamps, all-new HEXA Core processing — yielding 50% more DSP for running UAD Powered Plug-Ins in real time — plus it includes LUNA Recording System, giving you a fully-integrated music production application.
- Record with elite-class A/D and D/A conversion — nearing the widest dynamic range and lowest noise available, at any price
- Track with near-zero latency through Unison™ preamp emulations from Neve,® API, ® Manley, ® Helios, ® Fender,® and more†
- Mix with powerful HEXA Core processing, featuring 6 UAD DSP chips for running more UAD Powered Plug-Ins in real time
- Includes LUNA Recording System — a fully-integrated and inspiring music production application
Elite-Class A/D and D/A Conversion
With thousands of chart-topping songs and hundreds of Grammy-winning albums under their belt, Apollo interfaces are no strangers to tracking stellar-sounding records. To improve on the previous generation Apollo interface’s class-leading audio conversion, UA engineers obsessively auditioned the latest A/D and D/A converters — ultimately pairing elite-class 24-bit/192 kHz converters with all-new analogue circuitry for an ultra-pristine signal path.
The Apollo X series also introduces new Dual-Crystal clocking — featuring dedicated crystals for 44.1/88.2/176.4k and 48/96/192k sample rates — resulting in stunningly low jitter, measured at less than 10 picoseconds. This translates into pure, artefact-free recordings and solid stereo imaging you can trust.
With 129 dB dynamic range and -119 dB THD+N, Apollo x8’s open, natural sound quality rivals any dedicated high-end converter on the market — regardless of price — and is the perfect starting point for applying UAD processing.
Realtime UAD HEXA Core Processing
Apollo x8 features new HEXA Core processing, with six DSP chips and 50% more UAD plug-in processing power than previous Apollos. This lets you run more UAD plug-ins, whether you’re tracking in real time with channel strips from Neve, Manley, or API, or running high UAD plug-in counts when mixing in your DAW.
From the tube warmth of Pultec EQs on guitars to the musical tube limiting of the LA-2A on vocals, or the pump of a genuine 1176 or Fairchild 670 tube compressor on drums, your recordings will take a giant leap forward with a rich, three-dimensional analogue sound that UAD plug‑ins provide.
Unison Technology: The Genuine Sound of Neve, API & Manley Preamps
Perfect for musicians, engineers, producers, and sound designers, Apollo x8 features four Unison-enabled mic preamps, letting you track through exacting mic preamp emulations from Neve, API, Manley, Helios, SSL, and Universal Audio. A Universal Audio exclusive, Unison technology nails the tone of these sought-after tube and solid state mic pres — including their input impedance, gain stage “sweet spots,” and the component-level circuit behaviours of the original hardware.
The secret to Unison is its hardware-software integration between Apollo’s mic preamps and its onboard HEXA Core DSP Acceleration. Simply place a Unison preamp plug-in on your mic input in Apollo Console software, and it physically reconfigures the Apollo interface’s impedance — so you can tap into the classic sounds of the world’s most recorded mic preamps.
A Full Suite of Classic Analogue Processing Onboard
Of course, a hallmark feature of Apollo is its Realtime UAD Processing, letting you run the full library of UAD plug-ins with near-zero latency. Apollo x8 includes the Realtime Analog Classics Plus plug-in bundle, so you can record and mix with the world’s only authentic Teletronix LA-2A, 1176LN, and Fairchild compressors, the Unison-enabled UA 610-B Tube Preamp & EQ, and iconic guitar and bass amps from Marshall and Ampeg.
LUNA Recording System Deep Apollo Integration with a Fast, Natural Workflow
Apollo X series interfaces work with all major DAWs. But they become a fully integrated recording system with LUNA, Universal Audio’s ground-breaking music production application for Mac. Harness LUNA’s Accelerated Realtime Monitoring™ and power your workflow with a host of built-in features and optional extensions — from genuine Neve summing and integrated Studer tape, to inspiring LUNA instruments, and more.
Surround Sound, Talkback, and More
The Apollo x8 features built-in front-panel monitoring functions including a Talkback mic, Alt Speakers, and assignable Dim or Mono control. Plus, with its comprehensive 7.1 surround monitoring support, Apollo x8 is a boon for engineers and producers working on audio and music for video games, television, and the web. In addition, Apollo x8 offers selectable +24 dBu operation for out-of-the-box compatibility with professional mixing consoles and other high-end pro audio equipment.
Build an Expanded Studio System Over Thunderbolt

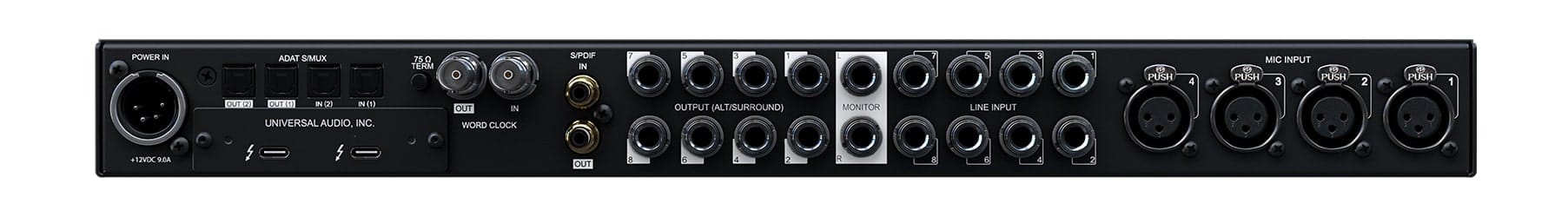

Apollo x8 offers 18 x 24 simultaneous inputs/outputs (8 x 8 analogue I/O) and two built-in Thunderbolt 3 ports. This allows users of any Thunderbolt-equipped Apollo Twin or Apollo rackmount audio interfaces to easily combine up to four Apollos and six total UAD-2 devices — adding fast, high-bandwidth I/O and DSP as your studio grows.
