12G-SDI Remote Monitor in openGear form factor with options for 2110, Dante and Ravenna Wohler monitor in openGear form factor that ships standard with 12G SDI I/O and can be accessed via remote GUI in place of traditional front panel.

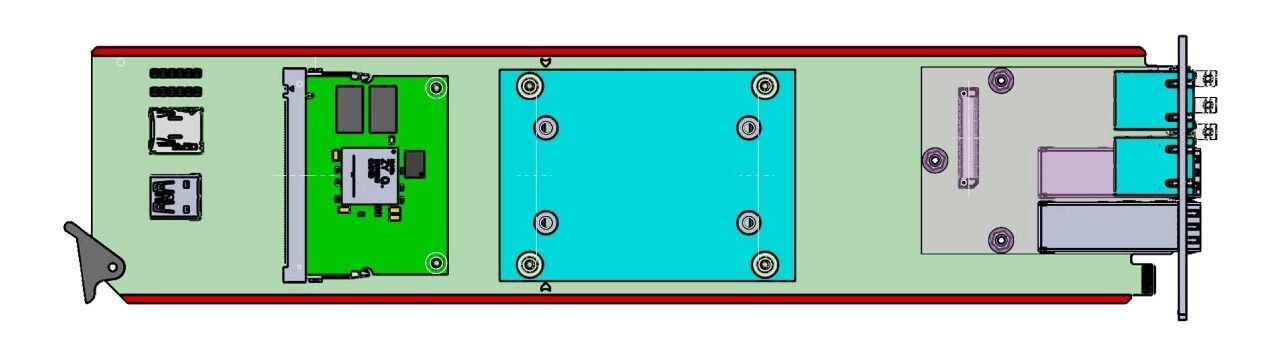

A Wohler monitor in an openGear Form Factor

Don’t be concerned with the different look. It’s the same high-quality Wohler monitor, but without the chassis and without the front panel. This unit is for situations where a local operator is not necessary. Access the /O, with all the familiar Wohler bells and whistles, remotely via GUI. Meters, loudness, Dolby, signal information and lots of other things available over the network.

It’s also compatible with MAVRIC for remote streaming of audio and video, automated alerts, etc.



Key Features

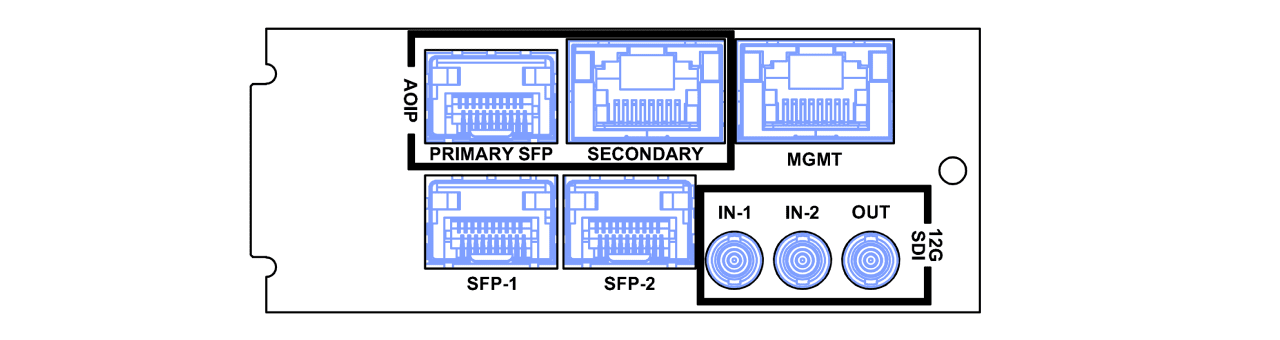

• 2 x 12G-SDI Inputs on BNCs with selected output on BNC
• Monitor via Remote GUI with access to meters, loudness and signal information.
• Automatic frame rate detection and selection
• Software upgradeable via network
• Remote GUI also used for configuration and preset creation

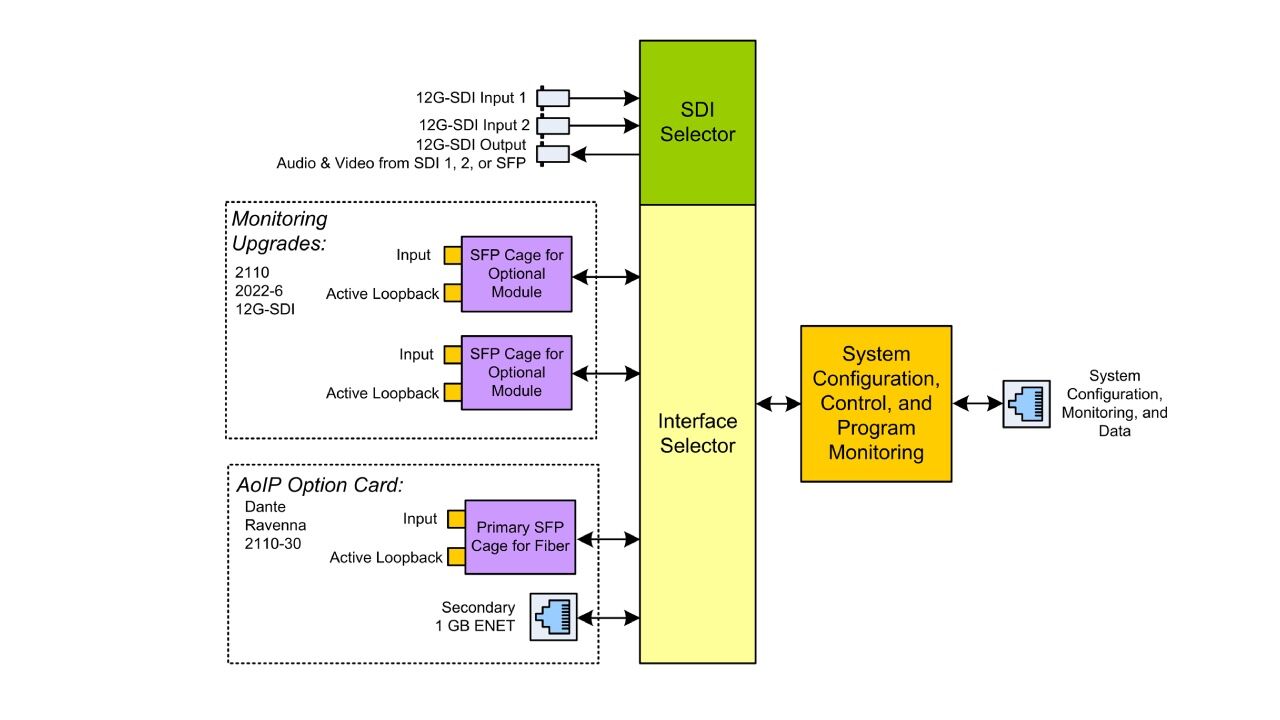

• Optional upgrades for additional SDI, 2110, 2022-6 and hitless Ravenna or Dante



Options

Model	SKU	Description
RMoG-12G	829160	openGear form factor Wohler Monitor. Ships standard with 2 x 12G SDI Inputs with selected 12G-SDI output. Options available for 2110, 2022-6 and hitless Dante/Ravenna.
I/O Options
SFP-12G-SDI Fiber	829160	12G, 3G/HD/SD-SDI single mode Optical LC (fiber) video receiver
SFP-2110 w/Ember+ or NMOS	829086/-1	Receiver; Multi-Mode 850 NM, LC Connectors. Use 829086-1 for NMOS variant
SFP-2022-6	829088	Receiver; LC Connectors
SFP-2110 w/Ember+ or NMOS +2022-6	829087/-1	Either-Or; Multi-Mode 850 NM, LC Connectors. Use 829087-1 for NMOS variant
OPT-DOLBY	829174	Allows decoding and monitoring of Dolby® D, DD+ & E. Includes Dolby zoom & metadata
OPT-OUTPUT ROUTING	829159	Enables the flexibility to route input signals to various outputs
Option Cards
OPT-DANTE OPT-Ravenna	829171 829172	This AoIP option card enables decoding and monitoring of up to 64 ch of DanteTM OR RavennaTM / AES67/ 2110-30 Input streams with NMOS Support. These option cards provide 2 x RJ-45 ports for 2022-7 support + SFP cage allowing MM and SM SFP’s as an alternate primary for AoIP Signals. TOSLINK included in both cards.



Specifications

Dimensions (W x H x D)	1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
Shipping Weight / Net Weight	8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
Power Consumption / Supply	65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
Audio Channels	16 Max
Upgrades	Via GUI web interface
APIs	Provide easy integration with 3rd party control systems
