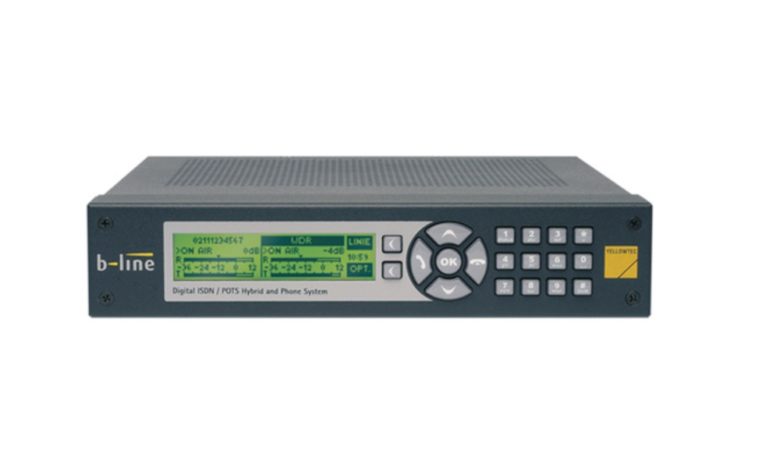

b-line XT is a powerful dual-line talkshow system with worldwide POTS/ISDN connectivity as standard and optional VoIP. Due to its digital echo canceller, the feedback possibility in open-speaker applications is reduced. With the help of its expander caller signal noise is lowered. The perfectly balanced AGC delivers smooth consistent caller level. The result is clear, beautiful sound.

b-line XT comes with a DTMF generator, as well as an integrated DTMF analyser which ensure callers who dial the correct code first will be highlighted within the Talkmaster Software®. Combine caller signals via a separate PreTalk interface for off-air conversation with the help of a specific function key available in the Talkmaster Software® or on the optionally available front panel b-line XT Keypad.

KEY FEATURES:

• POTS + ISDN: POTS/ISDN connectivity comes standard for b-line XT
• LAN interface: Ethernet interface for Talkmaster sites and AoIP
• VoIP: Available as an optional b-line XT VoIP Extension
• Analog and AES3: Audio interfaces are analog (balanced studio level) and AES3 on XLR. A/D is selectable in system setup
• Digital echo canceler: Special echo cancellation (up to 100 ms) for tricky VoIP and cellular calls, as well as adaptive function that reduces feedback possibility in open-speaker applications
• Conferencing: Combine caller signals for common PreTalk
• Database support: Talkmaster data can be stored in a database with blacklisting function
• PreTalk/Hold/On Air/R/Drop for each line on keypad or touchscreen
• Talkmaster Software Package: Optimized for touchscreen usage; connects over Ethernet via LAN interface (1 free license, additional licenses can be purchased)

TECH SPECS:

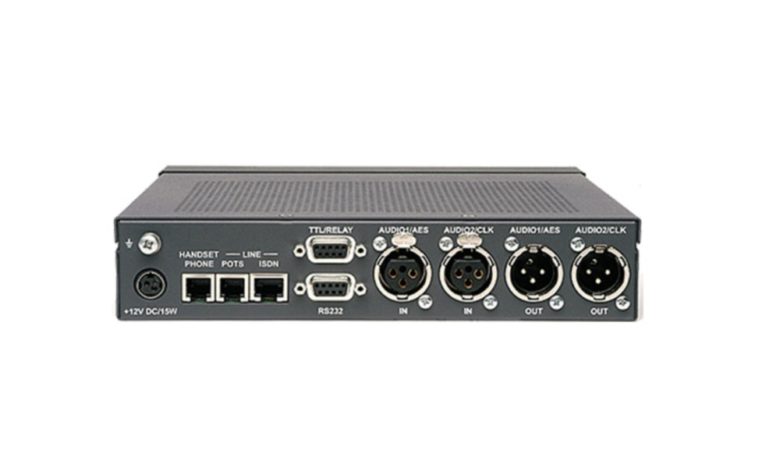

• Power supply: Integrated 230 V AC power supply with standard connector
• 2 handset/headset connectors: RJ11 connectors for standard analog handset or headset
• 2 telephone connectors: For standard analog telephones (RJ12)
• Serial control interface: 2x RS232 interface; connects two keypads
• GPI/GPOs: 4xGPI/4xGPO as TTL, 2xGPO on programmable relays
• Analog and AES3: Audio interfaces are analog (balanced studio level) and AES3 on XLR. A/D is selectable in system setup.
• LAN interface: Ethernet interface for Talkmaster sites and AoIP
• POTS + ISDN: POTS/ISDN connectivity comes as standard for b-line XT

FORM FACTOR:

• Length: 220mm
• Width: 220mm
• Height: 44,5mm
• Weight: 1,7kg

CONTENT OF DELIVERY:

• YT6030 b-line XT Dual-line Digital Hybrid and Phone System
• YT6103 b-line XT Talkmaster Software® (single license)
