YELLOWTEC Intellimix Pro

Desktop mixer

YT2200

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Intellimix Pro comes as a full-blown 8-channel mixer with advanced AoIP connectivity as standard, extended I/Os and settings.

Intellimix Pro is designed as a mixing device to master every imaginable and complex 8-channel mixing task. Thanks to remote control options, admin mode and an unlimited number of user profiles, Intellimix Pro is the ideal desktop mixer for shared workplaces used for multiple different workflows. As standard, it offers connectivity to run multi-channel AES67, Livewire+, RAVENNA, MADI, NMOS and ST2110. With the new Intellimix Pro no additional options are needed to get the full package of AoIP connectivity and fully adjustable settings down to the smallest detail.

Never miss what matters

Intellimix simplifies it all. The entirely new design of Intellimix guarantees a very smooth operation. Intellimix is intuitive to learn and easy to use. Enjoy how intuitively you can control a wide selection of ground breaking features with the comparable ease of using a smartphone. In so many ways small production tasks have never been easier. Usability is key.

The best of both worlds

By combining a multi-touch widescreen display with physical control elements, Intellimix equips you with unique usability. For on/off functions with the need for tactile feedback for maximum reliability we get you sealed hardkeys and a robust rotary control. In addition, a multi-touch widescreen serves as an easy control interface with access to all properties. Get your settings and selections done more intuitively than with any other GUI. No confusion. No clutter.

More than just a display

The Intellimix’s multi-touch widescreen offers quick access to all settings and properties. Select and control your parameters from this convenient area. Touch, swipe and write. Simple smartphone-like gestures secure easy operation. Assign sources to channel inputs and control all your settings – directly via touchscreen. You will get your selections done faster and more securely than with any other GUI.

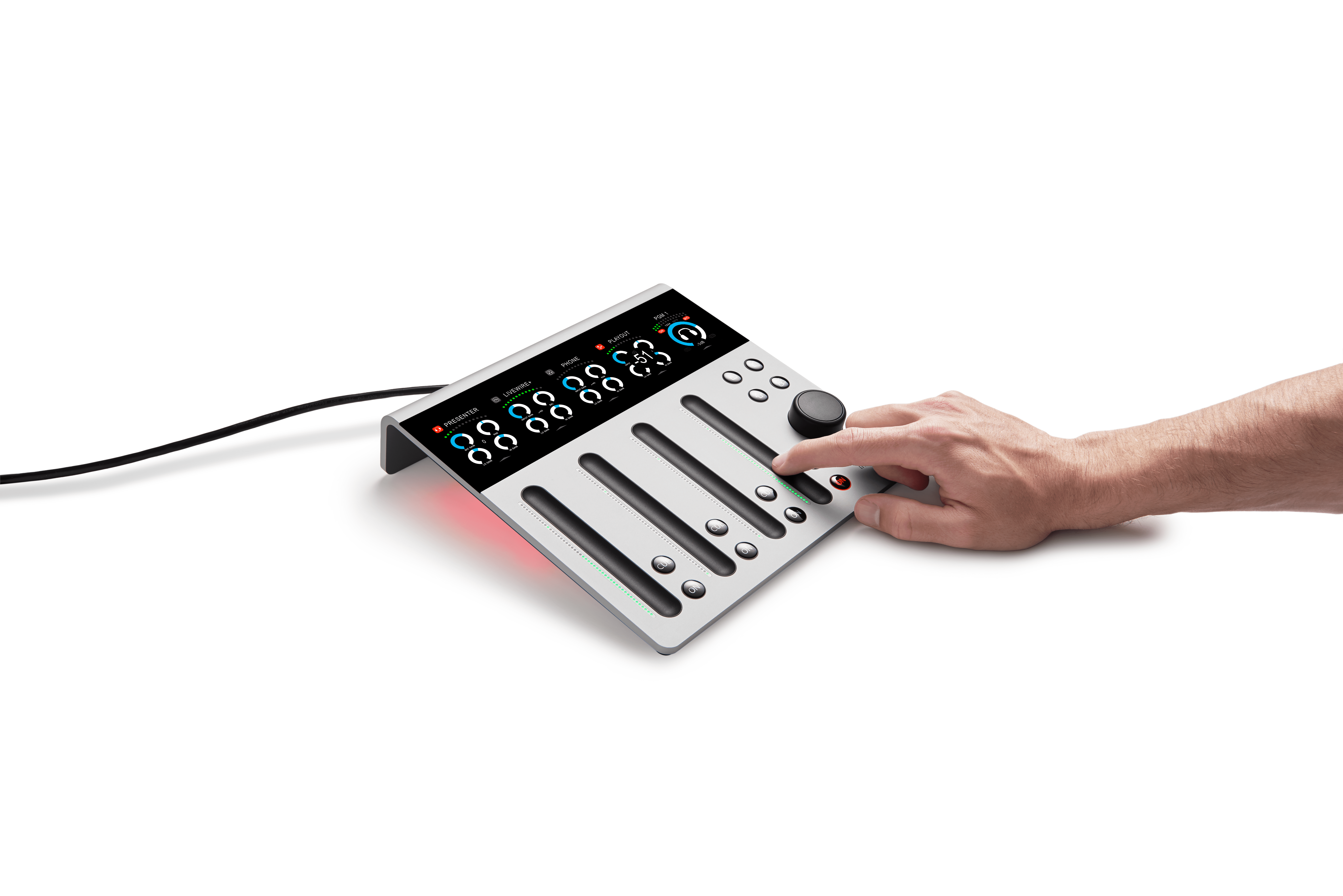

G-Touch© – a true revolution in faders

When you need to do a smooth fade, you wouldn’t necessarily dream of using a touchscreen as it gives very little physical orientation and needs all your attention. On the other hand, mechanical faders limit your flexibility and often suffer from wear out. That’s why we analysed how to improve conventional faders with expanded features, increased comfort and better reliability. The result is called G-Touch©. The vision of a whole new instrument.


As soon as you’ve experienced G-Touch, you’ll never want to go back. You will not miss any of your traditional mechanical fader’s goodies, but with the new technology you’ll face plenty of benefits. Slide your fingers through the moulded groove and celebrate the uncompromising improvement compared to anything you’ve seen before. Give it a try. You will love this new performance.

“G” stands for “guided” and explains the way our pioneering new fader design makes your work safer and easier than ever. A well-shaped groove guides your finger, combining touch sensitivity with additional haptic feedback. Feel the travel and the upper and lower endpoints of G-Touch©.No need to watch. When you touch the fader groove at any position, the level moves to your fingertip and tracks your finger.

One design for a world of applications

As a versatile and handy desktop mixer, with its unique usability, huge feature set and broad connectivity, Intellimix meets the requirements for various fields of applications. The list is long.

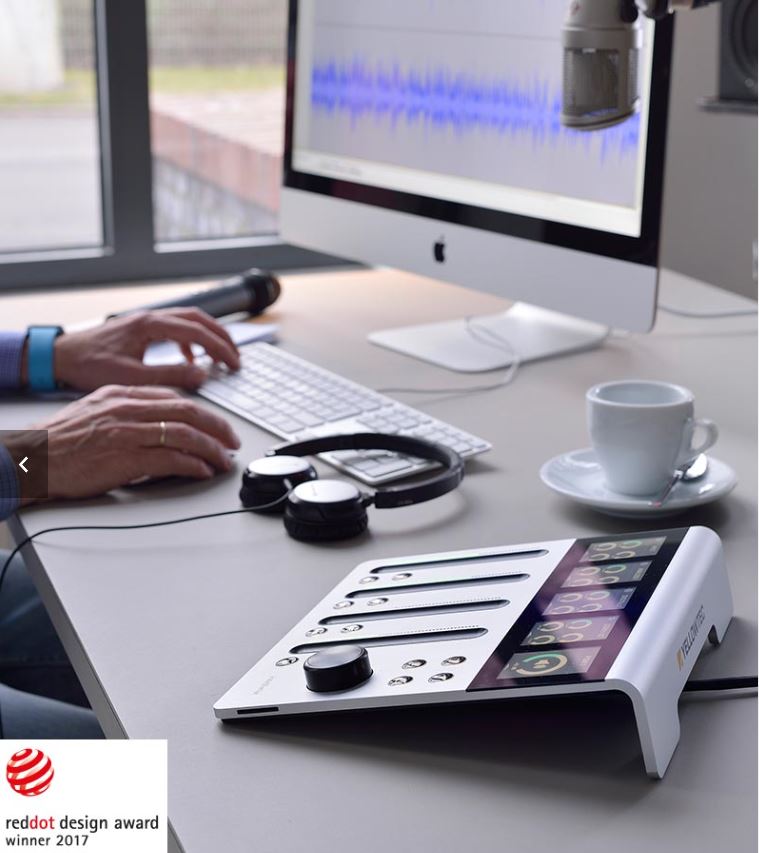

Video Editing: As responsive and intuitive level controls, G-Touch© faders don’t need you to turn away from your monitor. In combination with Intellimix’s connectivity including ADAT and SDI, Intellimix perfectly supports the need to work on audio for video.
Broadcast Vehicles: With its small volume and footprint, its low weight and power consumption and its almost non existing thermal load, Intellimix fully complies with all the challenges of equipment used for OB. Even more: It’s the ideal fit.
Newsrooms: In newsrooms time is of the essence. With its individual user profiles and setups Intellimix eases and fastens every journalist’s work. Determine the controls being most important for you and make them part of your personal profile. As your new well-organized intuitive interface, Intellimix secures quick and reliable news production.
Audio Production: The outstanding EQs and dynamics sections of Intellimix cover all you need, making it an outstanding mixer for ambitious audio productions. Whenever four (eight)* simultaneous channels are enough, Intellimix is in: Call-ins / radio shows / book recordings / podcasts /… The list is long.



Tech Specs

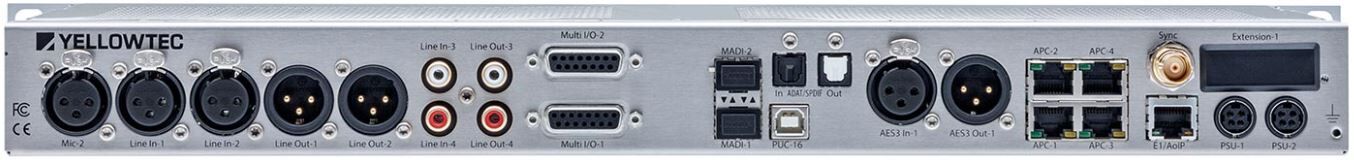

Inputs
Mic/Line Inputs: 2x balanced, with selectable sensitivity -77dBu…+18dBu
Line Inputs analogue: 2x XLR balanced, max. +24dBu & 2x RCA unbalanced, max. +24dBU
Line Inputs digital: 3x AES3/EBU with sample rate converters
ADAT-S/PDIF: 1x selectable S/PDIF stereo input with sample rate converter or ADAT 8-channel input
USB: 16x mono or 8x stereo inputs based on PUC2 technology
AoIP (Dante): 1x RJ45 4x mono inputs
Outputs
Line Outputs analogue: 4x XLR balanced, max. 24dBU & 2x RCA unbalanced, max. 24dBU
Headphone: 2x stereo
Line Outputs digital: 3x AES3/EBU with sample rate converters
ADAT-S/PDIF: 1x selectable ADAT 8-channel output or S/PDIF stereo output with sample rate converter
USB: 16x mono or 8x stereo outputs based on PUC2 technology
AoIP (Dante): 1x RJ45 4x mono outputs
AoIP X64 Extension (included with Intellimix Pro, optional for Intellimix Focus): AES67 64 input channels + 64 output channels (8 streams); nDNS / SDP / RAVENNA Advertisement; Livewire+ Advertisement + GPIO Control; SAP / Dante Advertisement; NMOS Advertisement; SMPTE ST2110 ready
Others
GPI/GPOs: 2x GPI via optocoupler & 4x GPO via PhotoMOS relay
APC Extension-Port: 4x RJ45 powered Ethernet for extension modules including additional analogue, digital and SDI I/O (Intellimix Pro only)
Options
Internal Extension Slot: 1x for X64 AoIP option card (included as standard with Intellimix Pro, optional for Intellimix Focus)
External Slots: 2x for MADI (Intellimix Pro only)
Buses
2 Program buses
4 Auxes
4 Mix Minus (2 with b-line control)

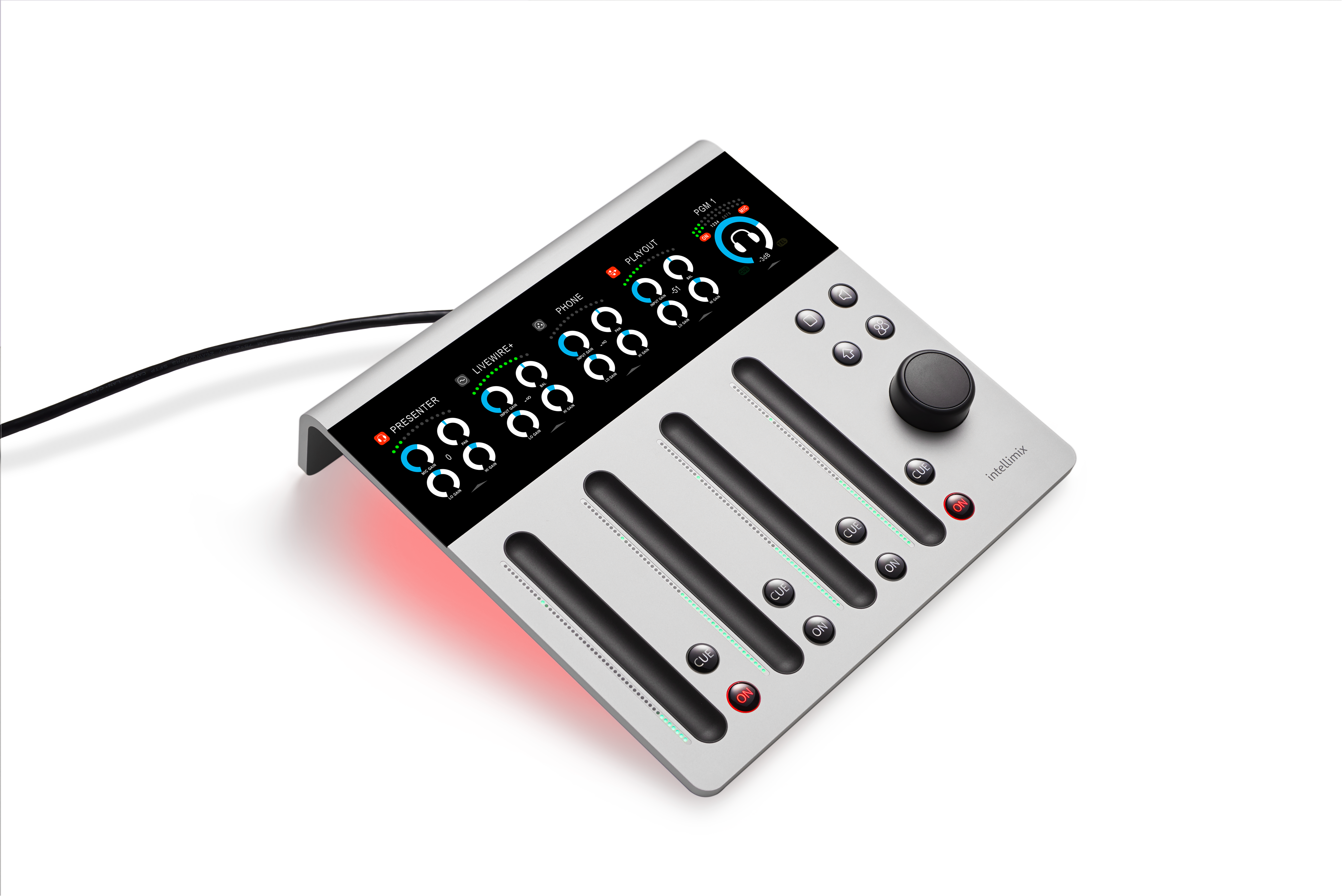

Intellimix Control Unit
Display: Light hi-res colour TFT trans-reflective widescreen with 250Cd/m2
Display sensor: Gesture ready 5-finger touch sensor
Faders: 4x G-Touch© 120mm faders with multifunctional position indicators
Keys: 12x illuminated sealed hard keys
Chassis: Solid aluminium desktop cabinet with SD Card reader

Tutorial Series

For more information on the Intellimix check out this video series on Youtube.



Media

Intellimix Pro & Focus Comparison (361.47 KB)
